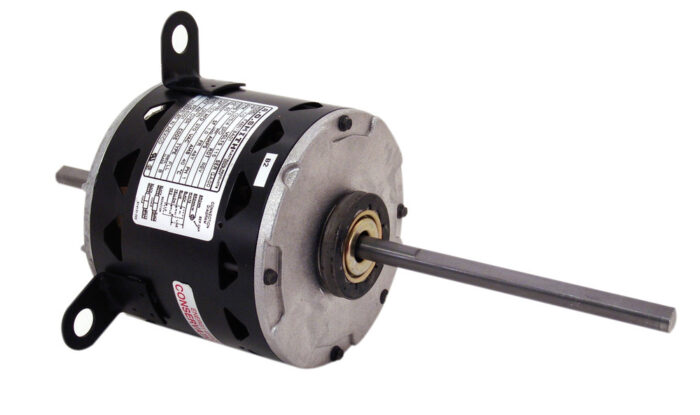

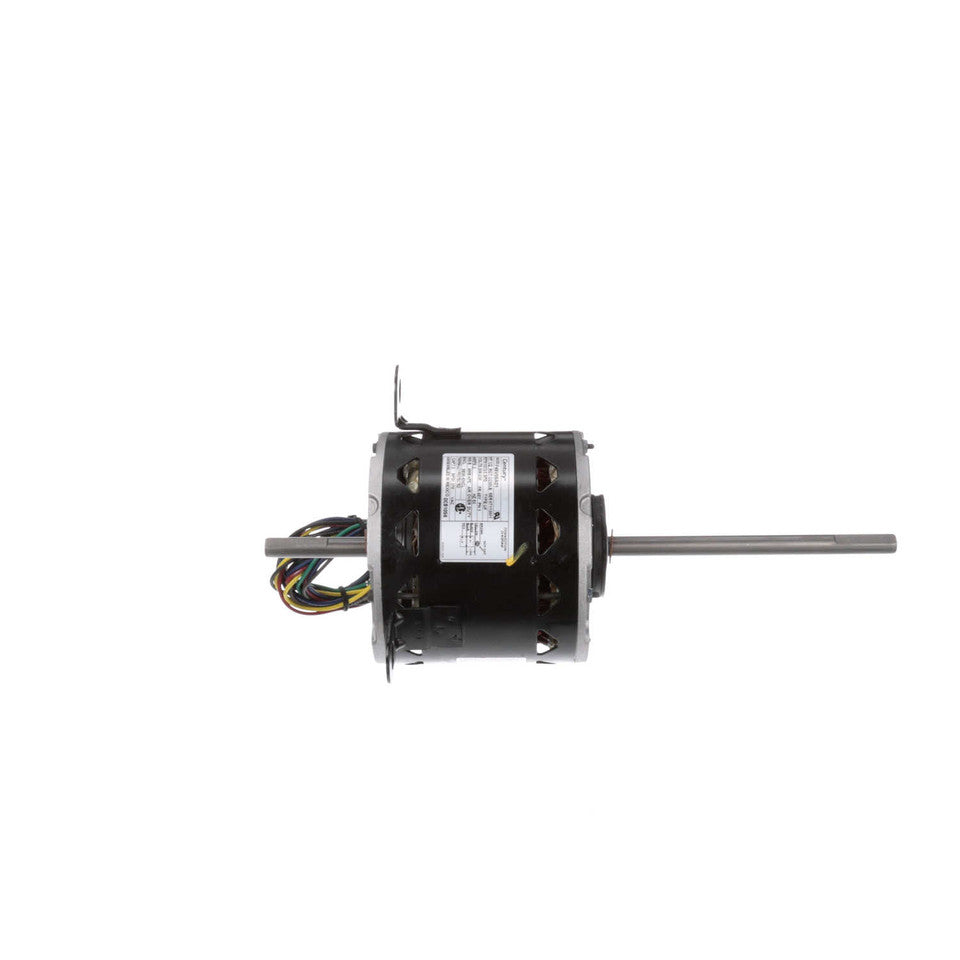

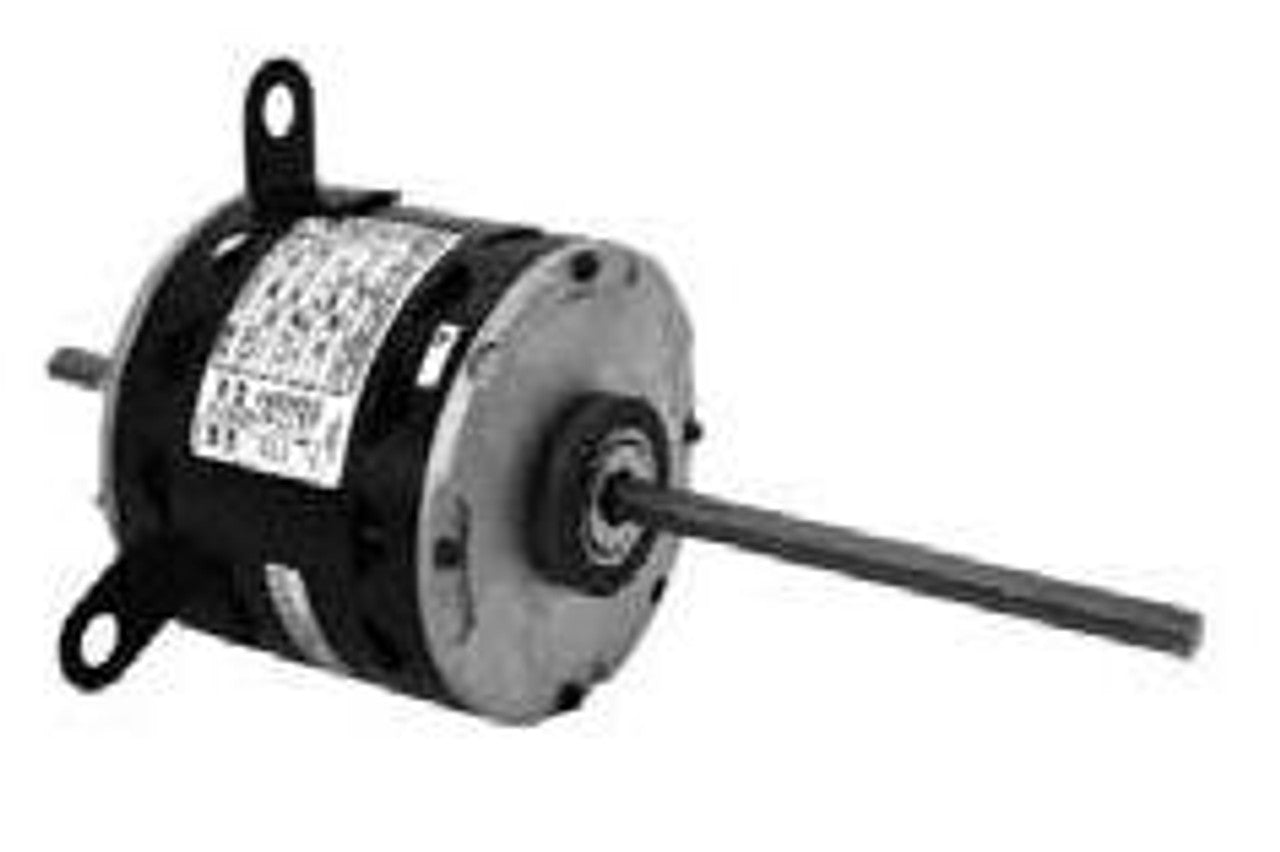

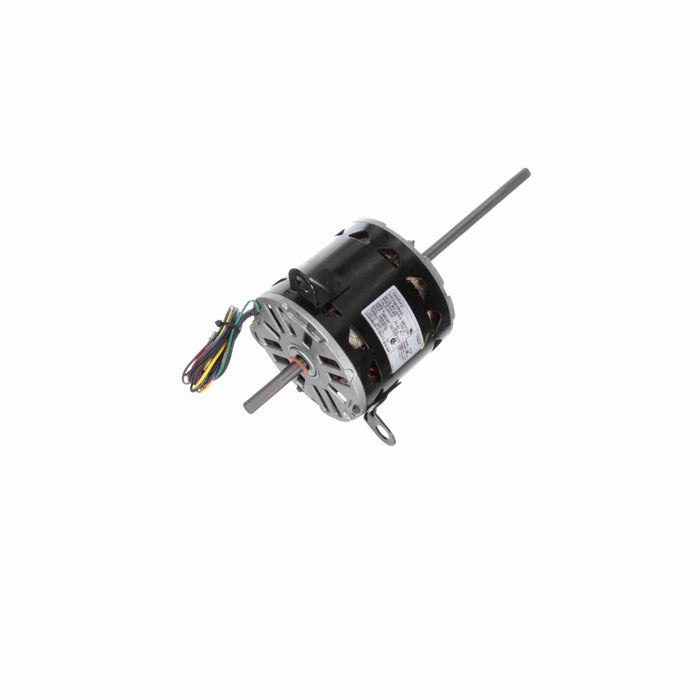

CENTURY MOTORS OCB1056 Electric Motor 1/2 HP 208-230V Replacement MPN OCB1056

Product Description

The CENTURY MOTORS OCB1056 is an electric motor intended for HVAC applications and suitable as an OEM replacement. Operating on 208-230 volts, it delivers a power output of one-half horsepower. This motor runs at a speed of one thousand seventy-five RPM and draws three amps of current.

• Horsepower: 1/2 HP
• Speed: 1075 RPM
• Voltage: 208-230V

Product Highlights

The motor features a thirty-five amp current draw and comes with thermal overload protection. With a specified shaft size and a reversible rotation capability, it suits various installation needs, providing versatility and reliability.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: OCB1056

Technical Specifications

• Horsepower: 1/2 HP
• RPM: 1075
• Voltage: 208-230V
• Current: 3.0 Amps
• Rotation: Reversible
• Number of Speeds: 3
• Frame Size: 48Y
• Motor Diameter: 5.6 inches
• Motor Case Length: 5 inches
• Shaft Diameter: 1/2 inches
• Shaft Length: 2.75 inches
• Overall Length: 15.25 inches
• Mounting Type: Lug Mount
• Enclosure Type: Open Air Over (OAO)
• Insulation Class: B
• Phase: 1
• Operating Frequency: 60 Hz
• Service Factor: 1.0
• Thermal Protection: Automatic
• Bearings: Sleeve
• Capacitor: 7.5 MFD/370V (Not Included)
• Leads: 31
• Enclosure Material: Rolled Steel
• Mounting Orientation: Horizontal
• Duty Cycle: Air Over
• Maximum Ambient Temperature: 40°C
