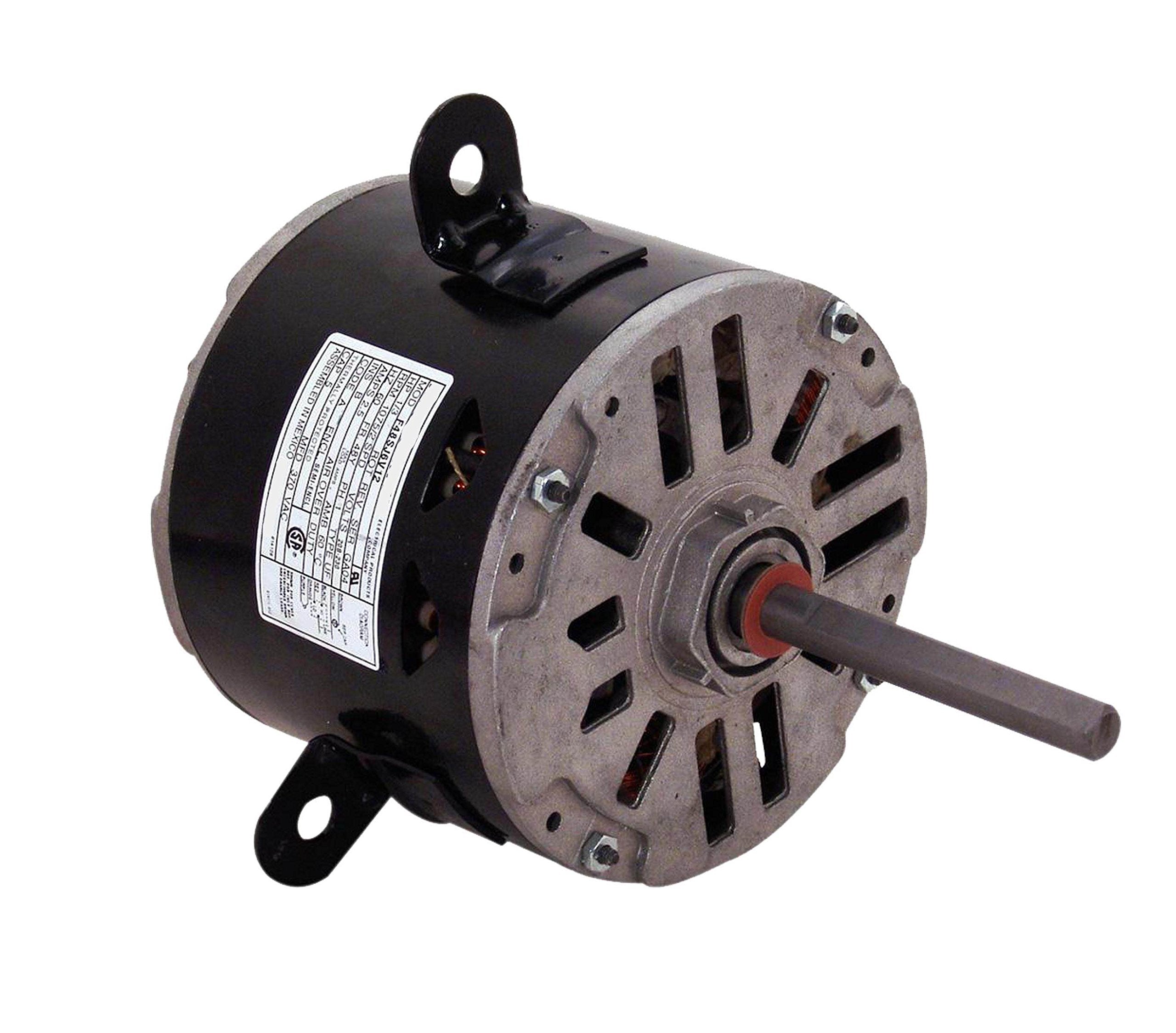

Century OCA1036 OEM Direct Replacement Motor 1/3 HP 208-230V 1075 RPM

Product Description

The Century OCA1036 OEM Direct Replacement Motor is designed for Carrier and BDP systems. This motor features 1/3 HP and operates at 1075 RPM with a two-speed setting. It supports 208-230 volt systems and runs at 2.5 amps. The motor is equipped with rev rotation and comes with a 5Mfd/370V capacitor.

• 1/3 HP, 1075 RPM, two-speed
• 208-230 volts, 2.5 amps, rev rotation
• 5Mfd/370V capacitor, lug mount, ball bearings

Product Highlights

This Century motor is suitable for HVAC systems, particularly for Carrier and BDP replacements. It is built with a solid rolled steel frame and offers reliable performance for condenser fans. The motor's reversible rotation and automatic thermal protection make it a versatile and durable choice.

Product Information

Standard Information

• Brand: Century
• MPN: OCA1036
• Applications: Carrier/BDP systems

Technical Specifications

• HP: 1/3
• RPM: 1075
• Voltage: 208-230
• Amps: 2.5
• Shaft Diameter: 1/2 inch
• Shaft Length: 4-1/4 inch
• Motor Diameter: 5-5/8 inch
• Frame: 48Y
• Phase: Single
• Rotation: Reversible
• Material: Rolled Steel
• Bearings Type: Ball
• Mounting: Lug Bracket
• Insulation Class: B
• Max Ambient Temp: 60°C
• Enclosure: Semi-enclosed
• Thermal Protection: Automatic
