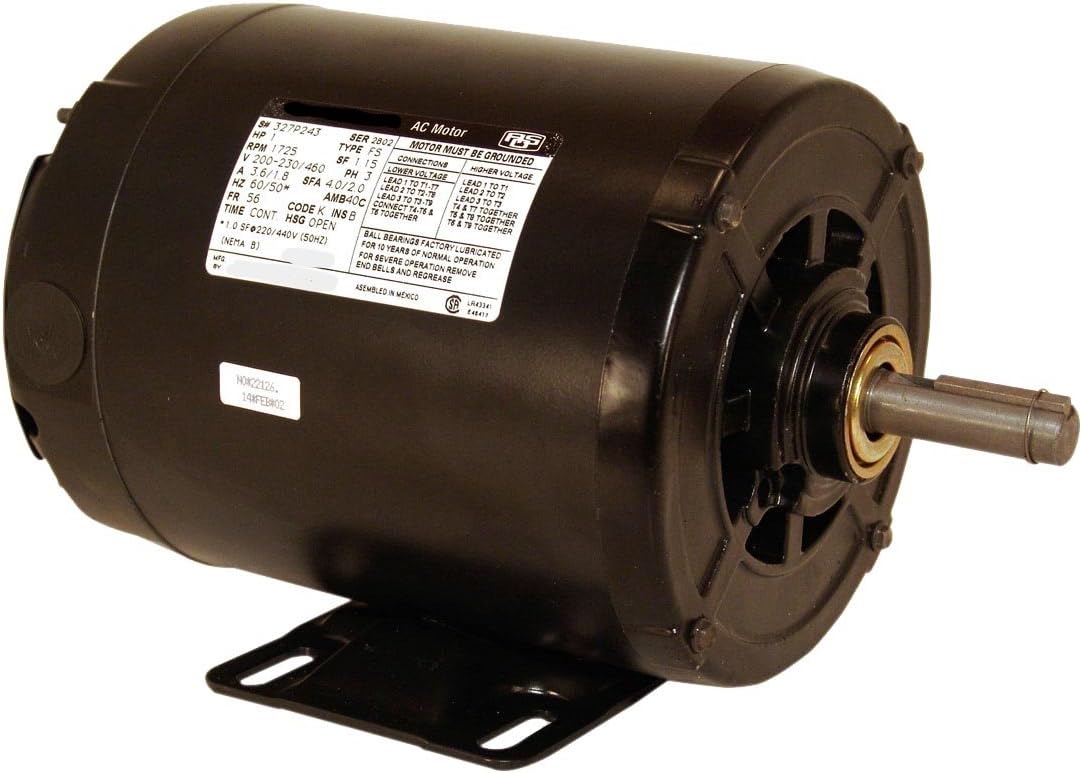

Century OB3204V1 Three Phase ODP Motor 2HP 1725 RPM

Product Description

The Century OB3204V1 is a three-phase open drip proof (ODP) motor designed to deliver efficient performance for industrial applications. This motor from Century features a robust design suitable for pumps, fans, compressors, and conveyors. The motor offers a continuous duty cycle with energy-efficient operation.

• 2 HP, 1725 RPM, 460 Volts
• 7.4/3.7 Full Load Amps, 1.15 Service Factor
• 56 Frame, Ball Bearings, Class B Insulation

Product Highlights

The Century OB3204V1 motor combines energy efficiency with durable construction, making it ideal for a range of industrial applications.

Product Information

Standard Information

• Brand: Century
• MPN: OB3204V1
• Applications: pumps, fans, compressors, conveyors
• Type: Three Phase ODP Motor

Technical Specifications

• Horsepower: 2
• Voltage: 200-230/460V
• Speed: 1725 RPM
• Frame: 56
• Frequency: 60 Hz
• Full Load Amps: 6.8/3.4
• Insulation Class: B
• Service Factor: 1.15
• Mounting: Rigid Base
• Ambient Temperature: 40°C
• Shaft Diameter: 0.874 inches
• Shaft Length: 2.38 inches
• Country of Origin: Mexico
