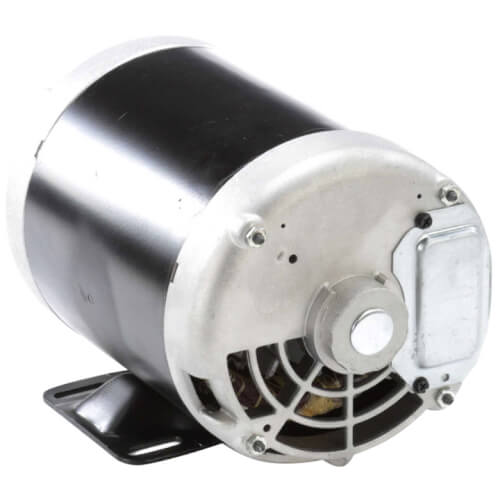

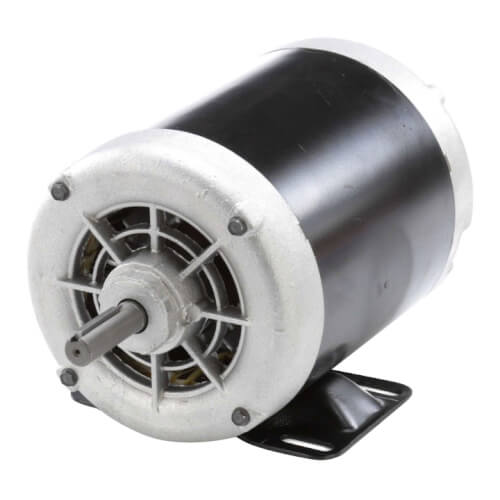

Century OB3104ES General Purpose Motor 1.0 HP 230/460v 56 Frame 1800 RPM

Product Description

The Century OB3104ES is a 1.0 HP general purpose motor that operates at 230/460 volts. This 3-phase motor runs at 1800 RPM and fits a 56 frame. It features an open drip proof (ODP) enclosure.

• 1 HP power motor
• Suitable for 230/460V operation
• 1800 RPM speed with 56 frame

Product Highlights

The Century OB3104ES motor is designed for HVAC and industrial applications. It is ideal for continuous duty and features a rigid base mount for stable installation. With a polyphase type and ball bearings, this motor can rotate both clockwise and counterclockwise.

Product Information

Standard Information

• Brand: Century
• MPN: OB3104ES

Technical Specifications

• Horse Power: 1
• Voltage: 230/460V
• Phase: 3
• Frame: 56
• RPM: 1800
• Hertz: 60
• Mount: Rigid Base
• Rotation: CW/CCW
• Enclosure Type: Open Drip Proof
• Insulation Class: B
• Amperage: 3.0/1.5
• Duty: Continuous
• Speeds: 1
• Poles: 4
• Type: Polyphase
• Bearings: Ball
• Overload Protection: None
• Max Ambient Temp: 104°F
• Country of Origin: Mexico
