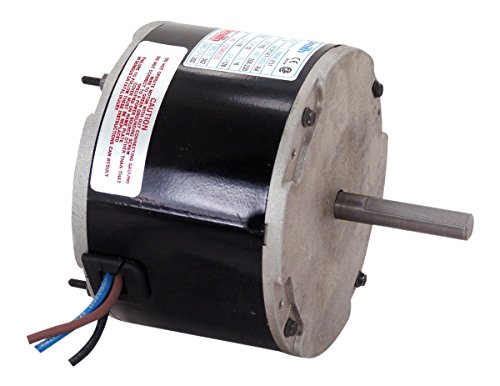

Century OAM10088 OEM Replacement Motor 208-230V 1/12 HP 825 RPM

Product Description

The Century OAM10088 OEM Replacement Motor is designed for Amana systems. This single-phase motor operates at 208-230 volts and provides 1/12 horsepower, making it a reliable choice for various HVAC applications.

• 1/12 horsepower motor
• 208-230 volts
• 825 RPM

Product Highlights

This motor is built with rolled steel for durability and features sleeve bearings for smooth operation. It mounts using extended studs and is designed for horizontal orientation. The motor includes auto overload protection and supports CWLE rotation.

Product Information

Standard Information

• Brand: Century
• MPN: OAM10088

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/12
• RPM: 825
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 208-230
• Rotation: CWLE
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting: Extended Studs
• Orientation: Horizontal
• Amperage: 0.5-0.6
• Shaft Type: Flat
• Shaft Extension: 2.300 inches
• Shaft Diameter: 0.500 inches
• Insulation Class: B
• Ambient Temperature: 40°C
• Poles: 8
• Service Factor: 1
• Start Method: Across The Line
• Duty: Air Over
