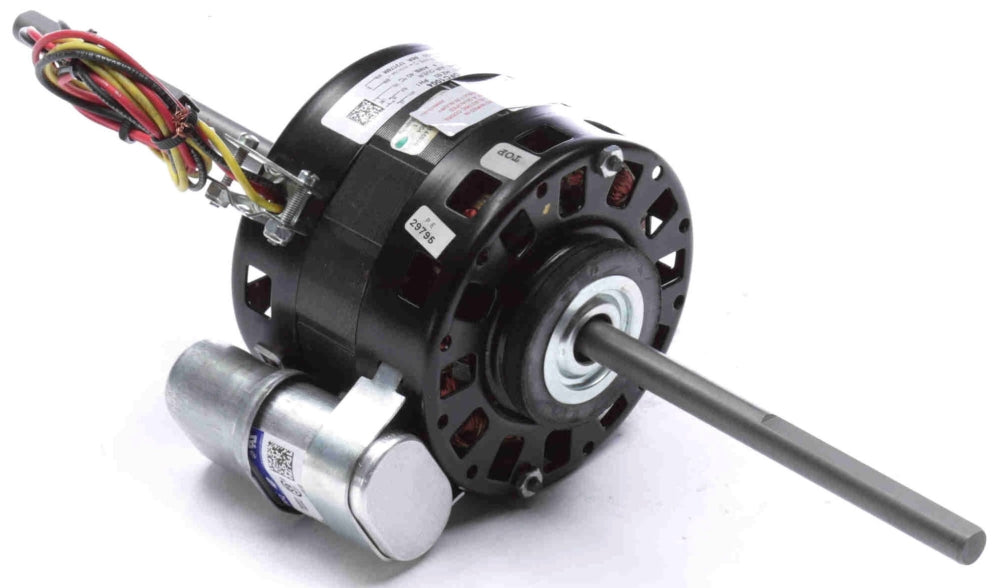

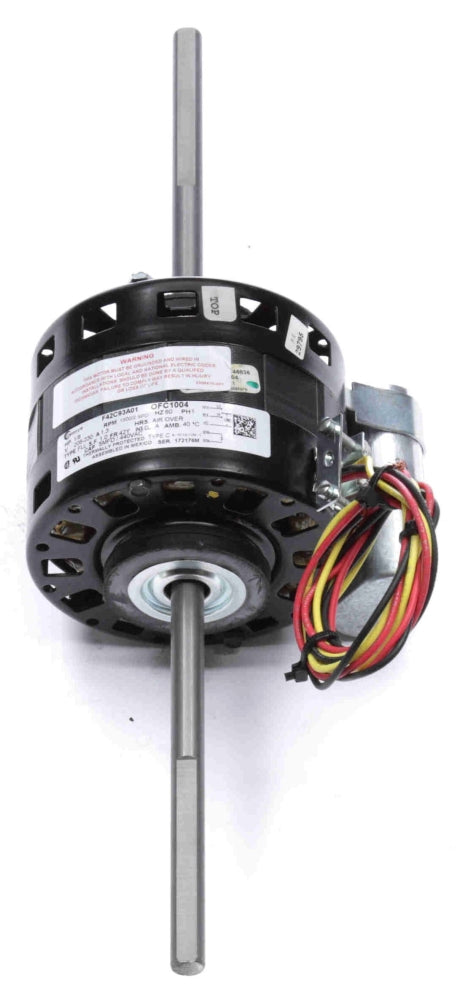

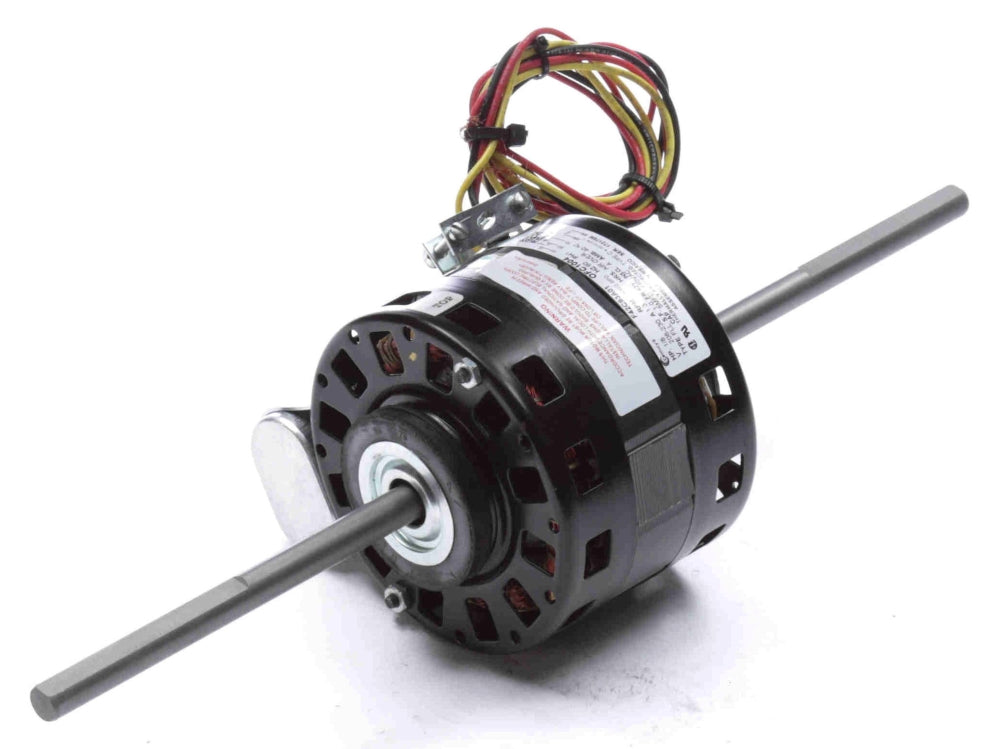

Century Motors M8 1/8 HP 208 to 230 VAC 60 Hz 1-Phase Blower Motor

Product Description

Century Motors offers the M8 model, a reliable HVAC/R motor that operates on 208 to 230 VAC at sixty hertz. This 1/8 HP motor features a four-pole construction and provides two-speed settings, operating at fifteen hundred RPM. The motor has a resilient ring mount for easy installation and uses class A insulation, making it suitable for various applications.

• Power rating of 1/8 HP

• Operates at voltages between 208 to 230 VAC

• Offers a durable rolled steel frame

Product Highlights

This motor is thermally protected and features sleeve bearings, contributing to its longevity and efficiency. It is designed for horizontal orientation and counterclockwise rotation.

Product Information

Standard Information

• Manufacturer: Century Motors

• Weight: 10 pounds

Technical Specifications

• Voltage Rating: 208 to 230 Volt AC 1-Phase

• Speed Rating: 1500 RPM

• Power Rating: 1/8 HP

• Enclosure Type: OAO

• NEMA Frame Size: 42Y

• Motor FLA: 1.3 Amp

• Insulation Class: A

• Mounting: Resilient Ring

• Ambient Temperature Rating: 40 °C

• Includes: Thirty-three inch lead, capacitor

• Approval: UL, CSA
