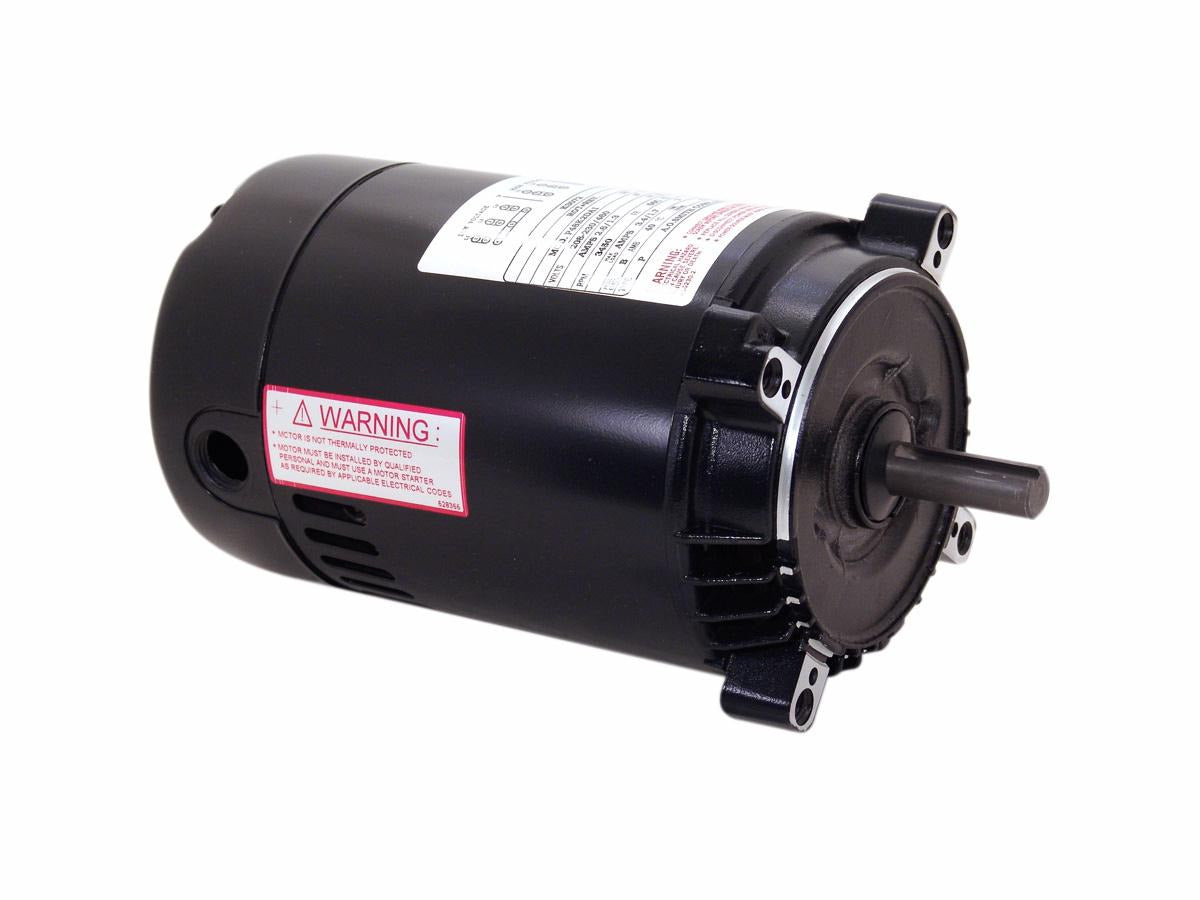

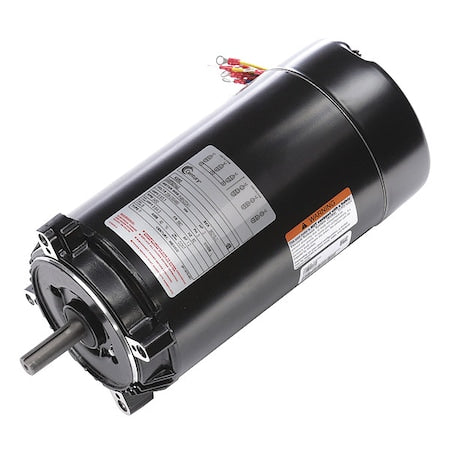

Century K3202 Pool Pump Motor 2 HP 56C Frame 3450 RPM

Product Description

The Century K3202 Pool Pump Motor is engineered for durability and efficiency. It offers 2 HP and operates at 3450 RPM, making it ideal for pool and spa applications where consistent performance is necessary. Constructed with die-cast corrosion-resistant aluminum, this motor includes double shielded ball bearings and an internal junction box.

• 2 HP, 3450 RPM, 208-230/460 volts, 60Hz
• 8.6/4.3 max amps, 1.2 service factor, 56C frame
• Continuous duty, open dripproof, keyed shaft

Product Highlights

This Century pump motor is built for reliable pump applications with features like a keyed shaft and ball bearings. It is also designed with an open dripproof enclosure for enhanced durability in various environments.

Product Information

Standard Information

• Brand: Century
• Model: K3202
• Category: Pool Pump Motor
• Application: Pool and Spa Pump

Technical Specifications

• Horsepower: 2 HP
• RPM: 3450
• Voltage: 208-230/460V AC
• Frame: 56C
• Amperage: 6.6/3.3
• Duty Cycle: Continuous
• Insulation Class: B
• Motor Bearings: Ball
• Motor Enclosure Design: Open Dripproof
• Motor Frame Material: Steel
• Shaft Material: Stainless Steel
• Max Ambient Temperature: 40 Degrees C
• Overall Length: 13 3/8 inches
• Height: 5 5/8 inches
• Body Diameter: 5.4 inches
• Length Less Shaft: 11 5/16 inches
• Service Factor: 1.2
• Shaft Diameter: 5/8 inches
• Shaft Length: 2 1/16 inches
• Motor Shaft Design: Keyed
• Motor Mounting Type: Face
• Motor Mounting Position: Horizontal
• Motor Shaft Rotation: CW/CCW
