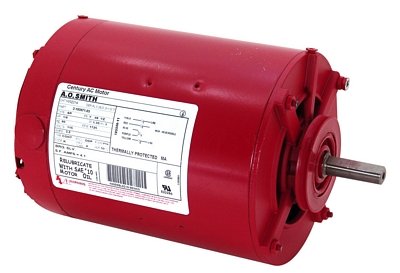

Century HW2014L Century Motor 1/6 HP (115V, 1725 RPM)

Product Description

The Century HW2014L is an electric hot water circulator pump motor with a power rating of one-sixth horsepower. It operates at one hundred fifteen volts and features a spinning speed of one thousand seven hundred twenty-five RPM. This motor is designed for durability and efficiency, making it ideal for various HVAC applications.

• Voltage: 115 V
• Speed: 1725 RPM
• Horsepower: 1/6 HP

Product Highlights

This motor includes an automatic overload protector for enhanced safety. It features a split-phase type, making it suitable for residential and light commercial applications. The design also ensures ease of installation with cushion ring mounting.

Product Information

Standard Information

• Brand: Century
• MPN: HW2014L

Technical Specifications

• Frame: 48Z
• Bearings Type: Sleeve
• Amperage: 3.60 A
• Service Factor: 1.35
• Enclosure: Open Drip Proof
• Rotation: Reversible Counterclockwise
• Shaft Diameter: 0.5 inches
• Shaft Length: 5/8 inches
• Maximum Ambient Temperature: 122°F
