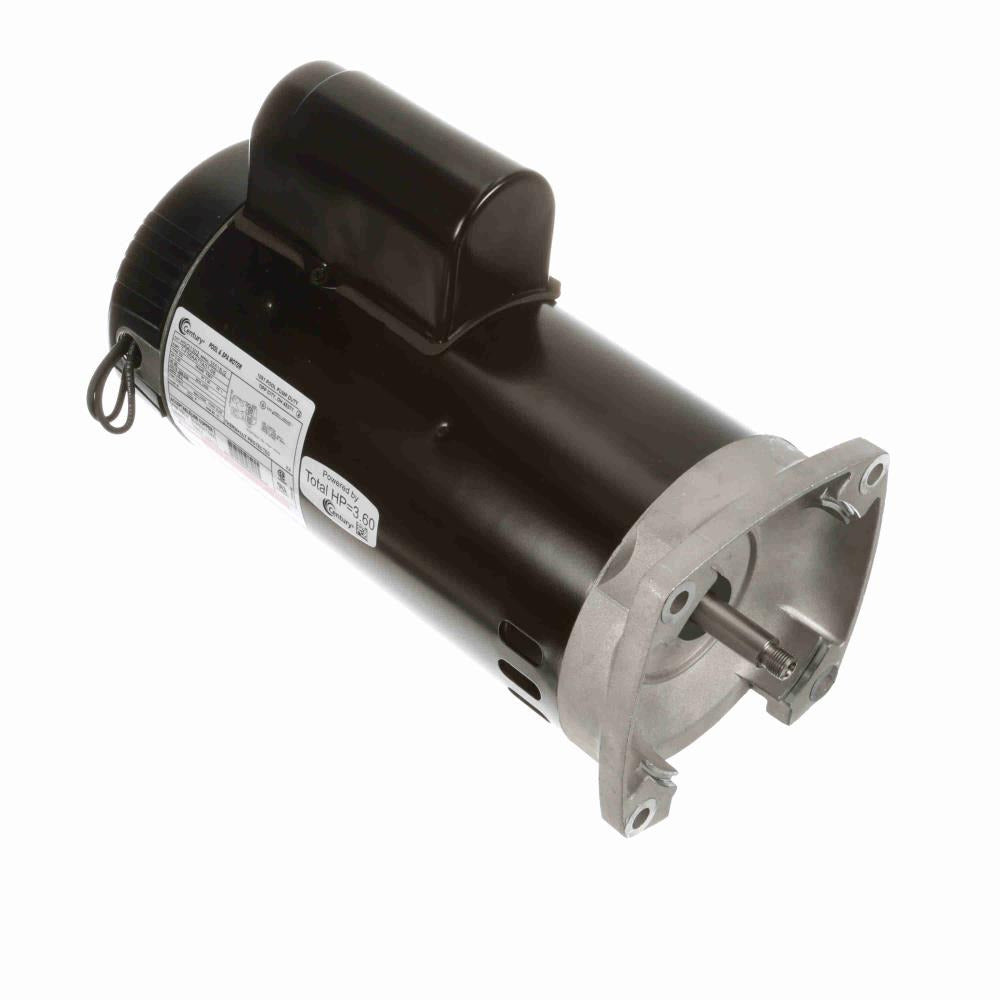

Century HSQ1302 Pool and Spa Motor 3Hp 208-230V 1-Sp 56Y Frame

Product Description

The Century HSQ1302 Pool and Spa Motor is designed to deliver reliable performance for pool and spa applications. This motor operates on 208-230 volts and provides a powerful 3 horsepower output.

• Efficient Permanent Split Capacitor Design
• Open Dripproof Enclosure
• Single Phase

Product Highlights

This motor is built to handle continuous duty cycles, making it optimal for consistent use. Its ball bearings ensure smooth operation, and the rolled steel frame offers durability.

Product Information

Standard Information

• Brand: Century
• Model: HSQ1302

Technical Specifications

• Electrical Type: PSC
• Horsepower: 3
• Frame: 56Y
• Diameter: 6.5 inches
• Enclosure: Open Dripproof
• Phase: Single
• Voltage: 208-230
• Rotation: CWSE
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Square Flange
• Amperage: 15.4
• Shaft Type: Single
• Weight: 24 pounds
• Length: 24 inches
• Width: 11 inches
• Height: 12 inches
