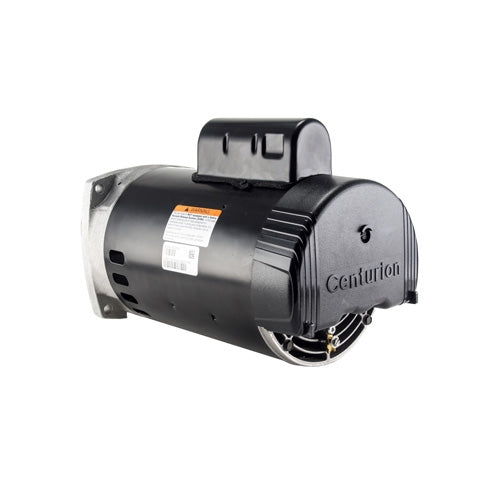

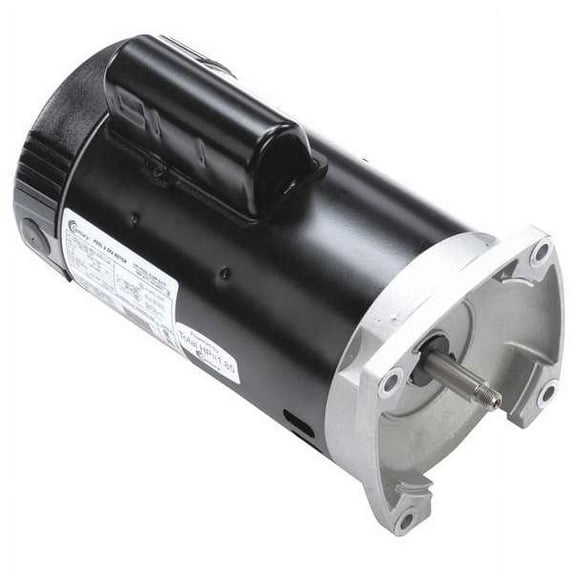

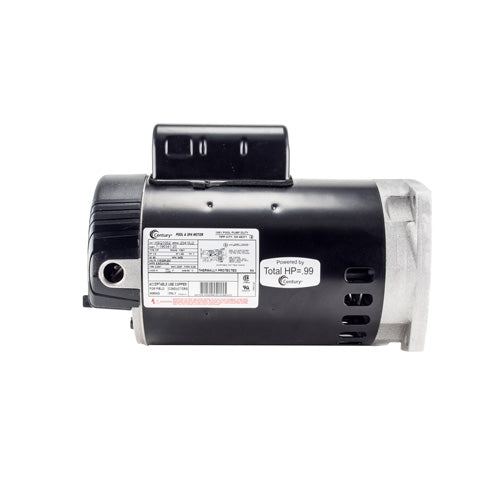

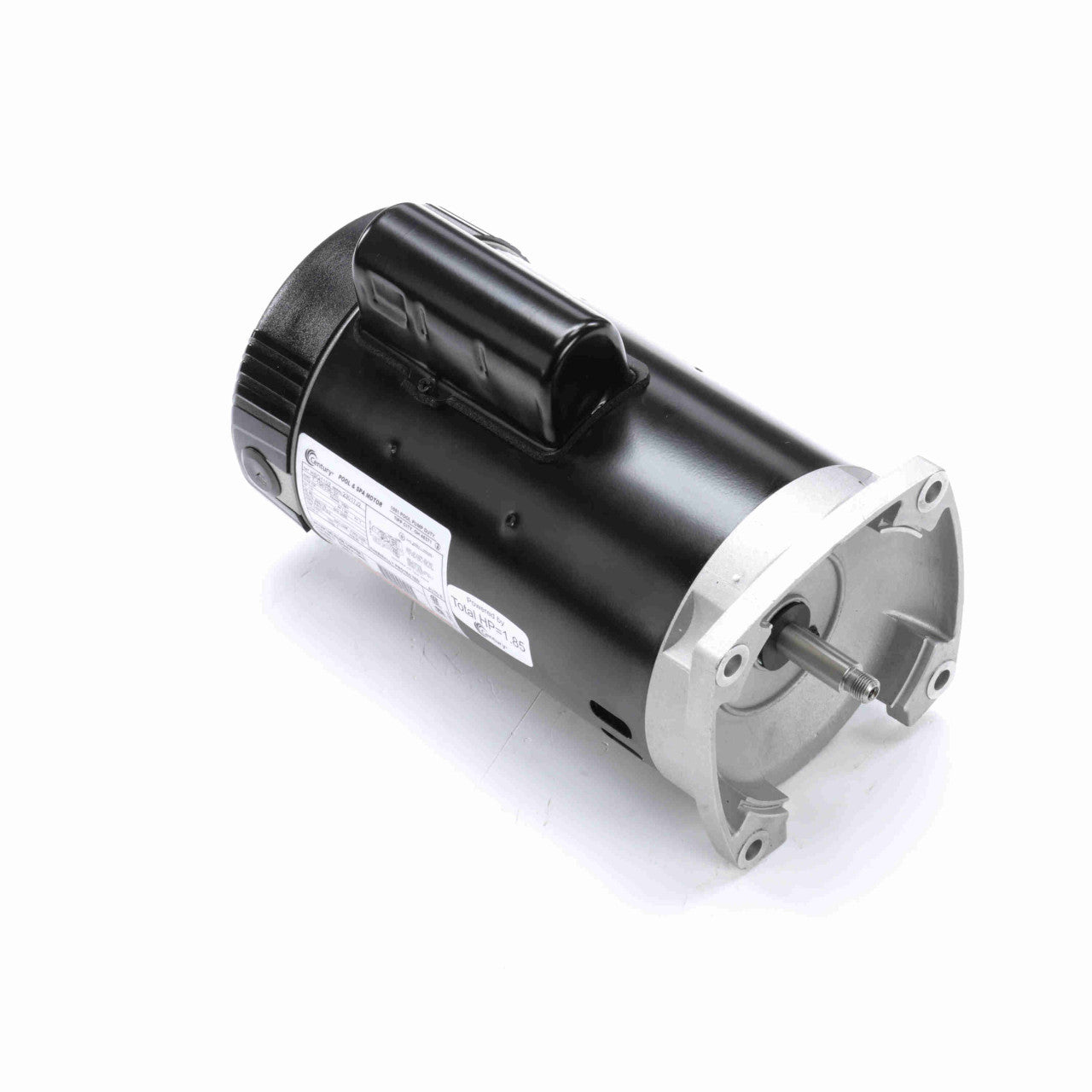

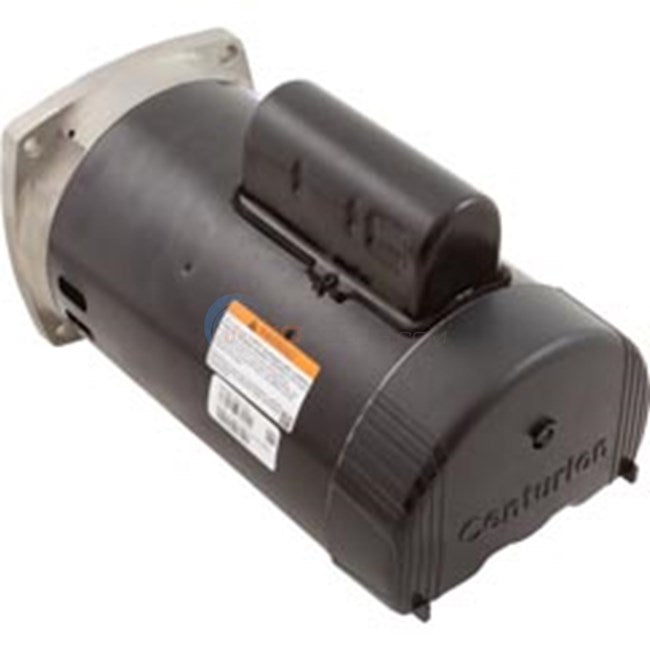

CENTURY MOTORS HSQ1102 Pool Pump Motor 1.0 HP Y56Y Frame Replaces SP3210Z1BE

Product Description

The CENTURY MOTORS HSQ1102 is a pool pump motor with a power rating of 1.0 HP and a speed of 3450 RPM. Designed for use with a 230/115 volt single phase supply, this motor features a Y56Y frame and an open drip-proof enclosure. It utilizes a capacitor start and capacitor run system.

• Energy efficient design
• Includes sealed ball bearings
• Features a 303 stainless steel shaft

Product Highlights

This motor is suitable for both pool and spa applications, providing reliable performance and durability.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: HSQ1102

Technical Specifications

• Phase: 1
• Output HP: 1.0 HP
• Output KW: 0.75 kW
• Voltage: 230/115 V
• Speed: 3450 RPM
• Service Factor: 1.85
• Frame: Y56Y
• Enclosure: Open Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 8.8-7.5/15.0 A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Yes
• Electrical Type: Capacitor Start, Capacitor Run
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Square Flange
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Threaded
• Overall Length: 13.39 inches
• Frame Length: 9.00 inches
• Shaft Diameter: 0.625 inches
• Shaft Extension: 0.91 inches
• Packaged Length: 16.00 inches
• Packaged Width: 9.50 inches
• Packaged Height: 11.00 inches
• Total Horsepower: 1.85
• Motor Type: Pool
• Motor Shaft Type: Threaded
• Motor Style: Square Flange
• Capacitor On Top: Yes
• Manufacturer: Century
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 13.39
• Type of Overload Protector: Thermally Protected
• Max Ambient: 60°C
• Finish: Black
• Standards: CSA, UL
• Application: Pool/Spa Motor
• Full Load Amps: 15.0/8.8-7.5
