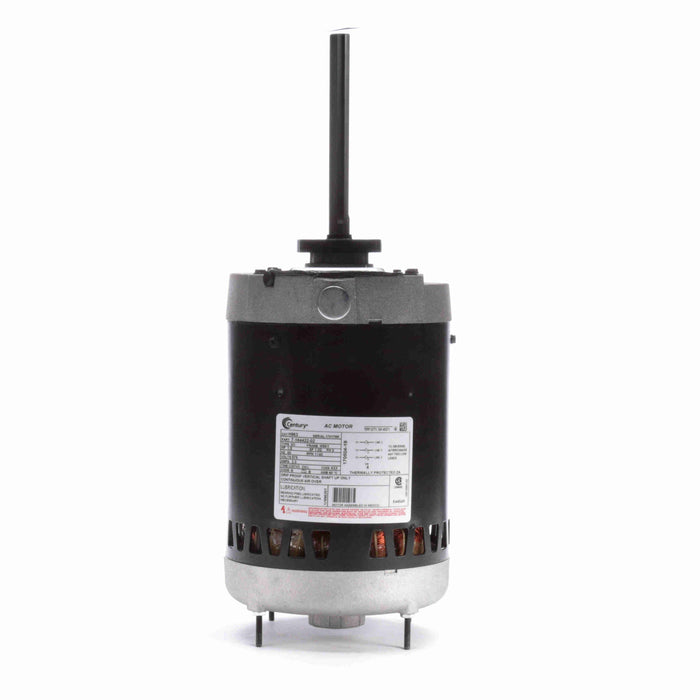

Century Motors H963 Condenser Fan Motor 1.5 HP

Product Description

The Century Motors H963 is a 1.5 HP condenser fan motor. It features automatic reset thermal protection to prevent overheating and permanently lubricated, double-sealed bearings to extend the motor's lifespan. Designed for consistent operation in various environments, it supports vertical/horizontal mounting for flexible fan placement within airflow.

• Automatic reset thermal protector prevents overheating.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• Ambient temperature up to 60°C allows for consistent operation in a range of environments and applications.
• Vertical/horizontal mounting for proper placement of the fan within airflow.

Product Highlights

This condenser fan motor is designed for reliability and ease of installation, suitable for HVAC, industrial systems, and more.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: H963
• Country of Origin: Mexico

Technical Specifications

• MPN: H963
• Brand: CENTURY MOTORS
• Inventory SKU: UH963
• Phase: 3
• Output HP: 1.5 Hp
• Output KW: 1.1 kW
• Voltage: 575 V
• Speed: 1140 rpm
• Service Factor: 1
• Frame: M56Y
• Enclosure: OPEN
• Thermal Protection: Automatic
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 2.3 A
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Band/Ring/Stud
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 16.81 in
• Frame Length: 6.75 in
• Shaft Diameter: 5/8"
• Shaft Extension: 6.06 in
• UPC: 786674024930
• Packaged Length: 19.00 IN
• Packaged Width: 8.00 IN
• Packaged Height: 8.00 IN
• Application: Condenser Fan Motor
• HP: 1-1/2
• Hz: 60
• Enclosure Type: OAO (Open Air Over)
• Motor Diameter: 6-1/2"
• Shaft Length: 6"
• Service Factor (SF): 1.00
• Maximum Ambient Temperature: 60° C
• Duty Cycle: Continuous
• RPM: 1100 - 1200
• MODEL: H963
• Rated Motor Output Power: 1 1/2 HP
• Rated Motor Speed: 1140 RPM
• Rated Motor Voltage: 575V
• Rated Motor Current: 2.3 AMP
• DE Bearing: Ball
• NDE Bearing: Ball
• Agency Approvals: CSA & UL
• Warranty: 1-Year
