Product Description

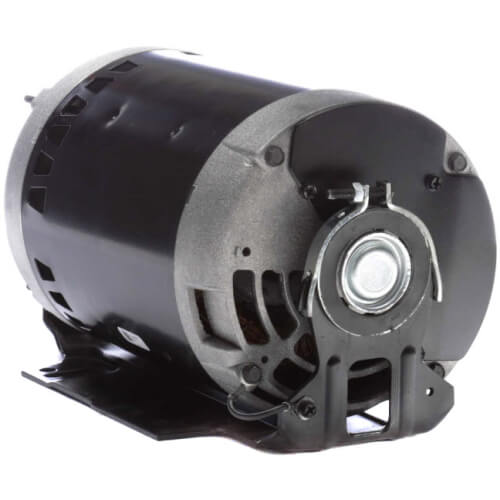

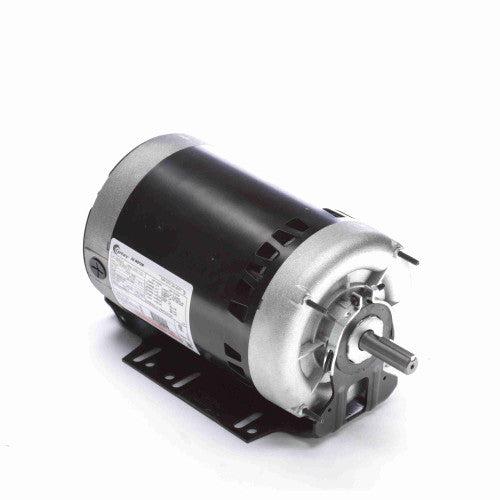

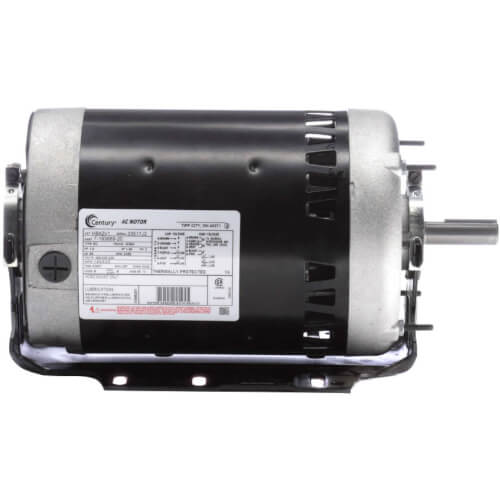

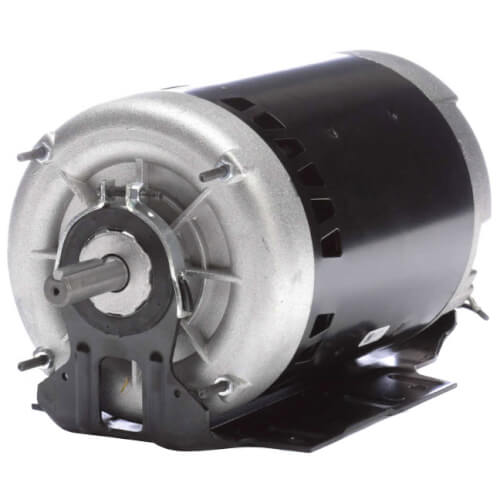

The CENTURY MOTORS H842V1 general purpose motor is designed for a variety of industrial applications. This three phase motor delivers 1 HP and operates at 3450 RPM. It features a 56H frame, cushion base, and is suitable for horizontal mounting. The motor is thermally protected with class B insulation.
- Operates at 3450 RPM
- Features a resilient cradle base for mounting
- Designed with automatic overload protection
Product Highlights
This motor is suitable for use in conveyor systems, pumps, fans, compressors, HVAC systems, and manufacturing machinery.
Product Information
Standard Information
-
Brand: CENTURY MOTORS
-
Manufacturer Part Number: H842V1
-
Country of Origin: Mexico
Technical Specifications
-
MPN: H842V1
-
Brand: CENTURY MOTORS
-
Type: Single or Dual Voltage, Induction Run, Polyphase
-
Horse Power: 1
-
Voltage: 460/200-230V
-
Duty: Continuous
-
RPM: 3450
-
Bearings: Ball
-
Mount: Cushion Base
-
Frame: 56H
-
Amperage: 1.8/3.5/3.6
-
Rotation: RCCW
-
Enclosure Type: Drip Proof
-
Speeds: 1
-
Insulation Class: B
-
Phase: 3
-
Overload Protection: Thermally
-
Poles: 2
-
Max Ambient Temp (°F): 104°F
-
Output HP: 1.0 Hp
-
Output KW: 0.75 kW
-
Service Factor: 1.40
-
Enclosure: Drip Proof
-
Thermal Protection: Thermally Protected
-
Ambient Temperature: 40 °C
-
Frequency: 60 Hz
-
Current: 1.8/3.5-3.6 A
-
Number of Speeds: 1
-
Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
-
Starting Method: Across The Line
-
Frame Material: Rolled Steel
-
Shaft Type: Keyed
-
Overall Length: 12.69 in
-
Frame Length: 6.75 in
-
Shaft Diameter: 0.625 in
-
Shaft Extension: 1.94 in
-
Base: Resilient Cradle Base
-
Shaft: 5/8 X 1 7/8"
-
Shaft Height: 3.5"
-
Mounting: Horizontal mount only
-
Product Type: 3 Phase
-
Hz: 60
-
Motor Diameter: 6-1/2"
-
Duty Cycle: Continuous
-
Maximum Ambient Temperature: 40° C
