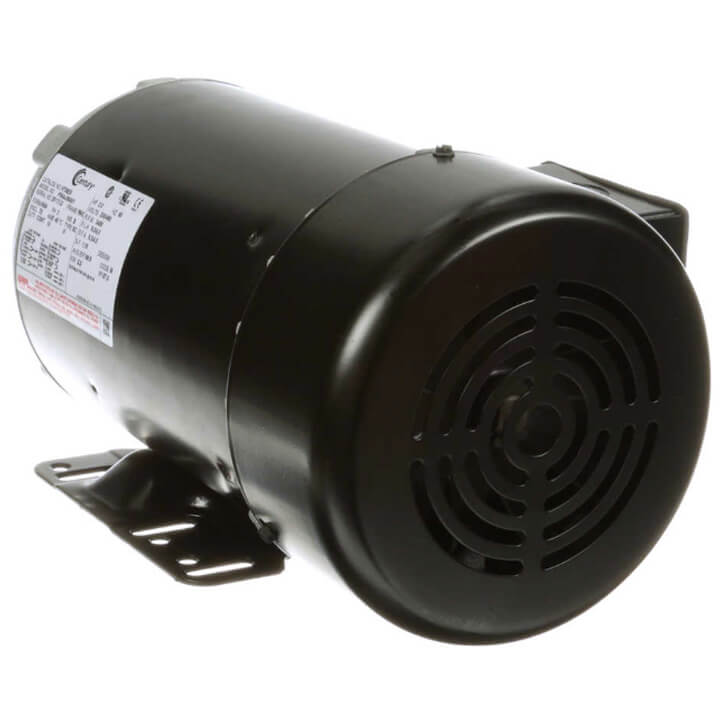

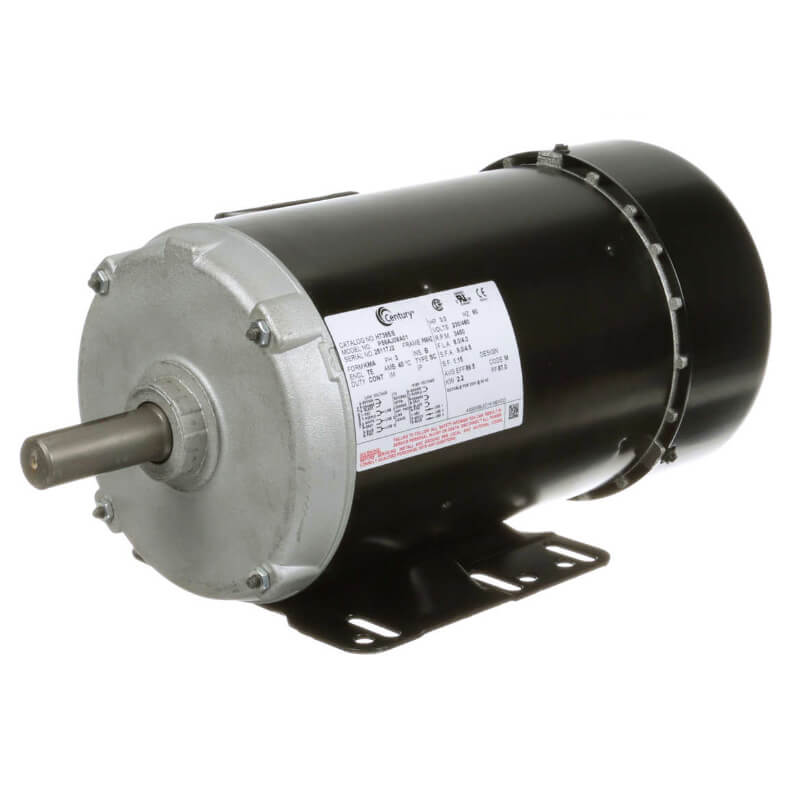

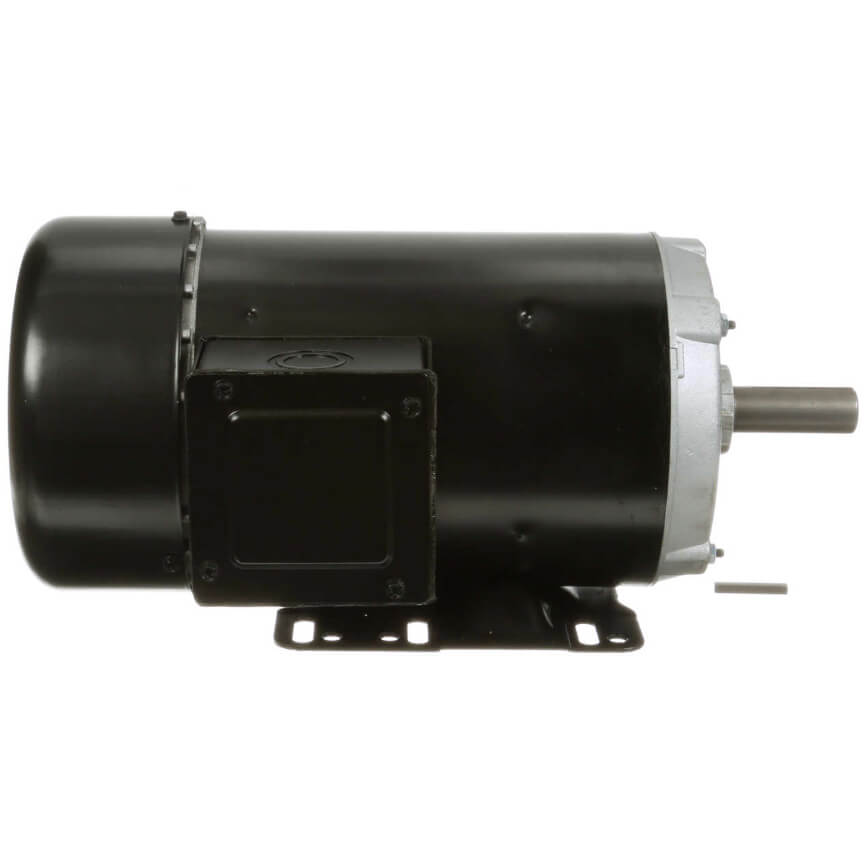

Century Motors H738ES General Purpose Motor 3 HP 230/460V 3600 RPM TEFC

Product Description

The Century Motors H738ES is a robust 3 HP general purpose motor, ideal for a variety of industrial applications. Crafted for efficiency and durability, this motor operates at a speed of 3600 RPM, with a voltage range of 230/460V.

• Engineered with a Totally Enclosed Fan-Cooled (TEFC) design to ensure a long operational lifespan under harsh conditions.
• Features a 56HZ frame and rigid base mounting for stable installation.
• Supports dual voltage operation, making it versatile for different electrical setups.

Product Highlights

This motor is built to perform continuously and efficiently with single or dual voltage capabilities. It's particularly suited for HVAC systems, pumps, and industrial machinery.

Product Information

Technical Specifications

• Phase: 3
• Poles: 2
• Speeds: 1
• Voltage: 460V, 230/460v, 230v
• Amperage: 8, 8.0/4.0, 4
• Bearings: Ball
• Rotation: RCCW
• Enclosure Type: Totally Enclosed Fan-Cooled (TEFC)
• Insulation Class: B
