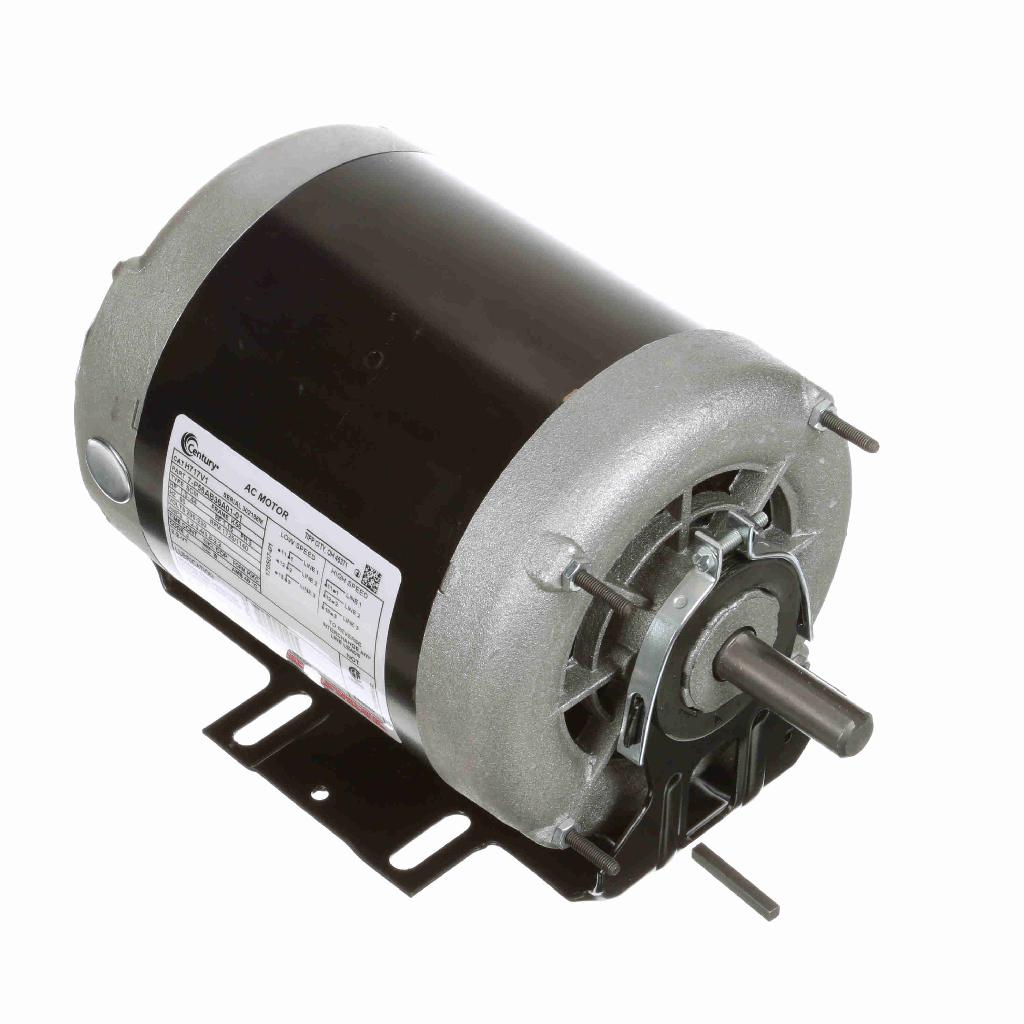

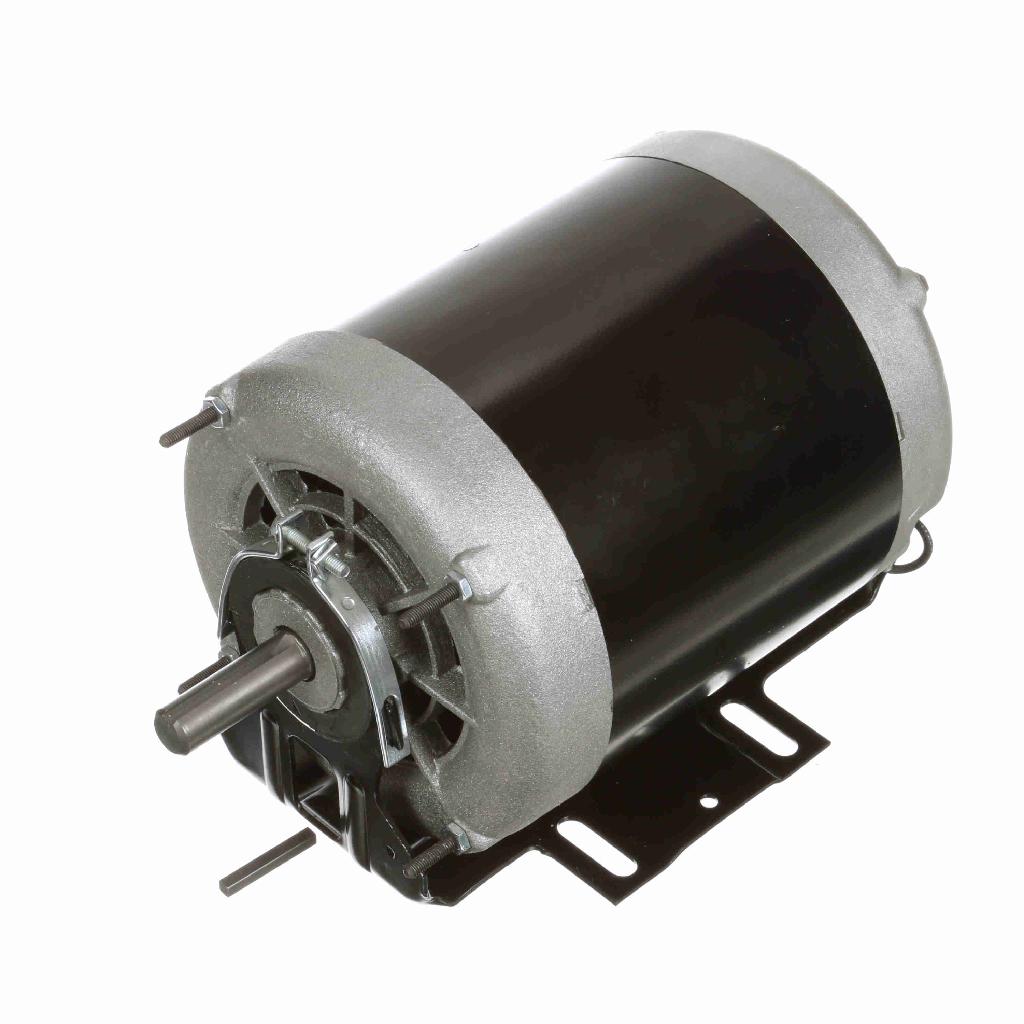

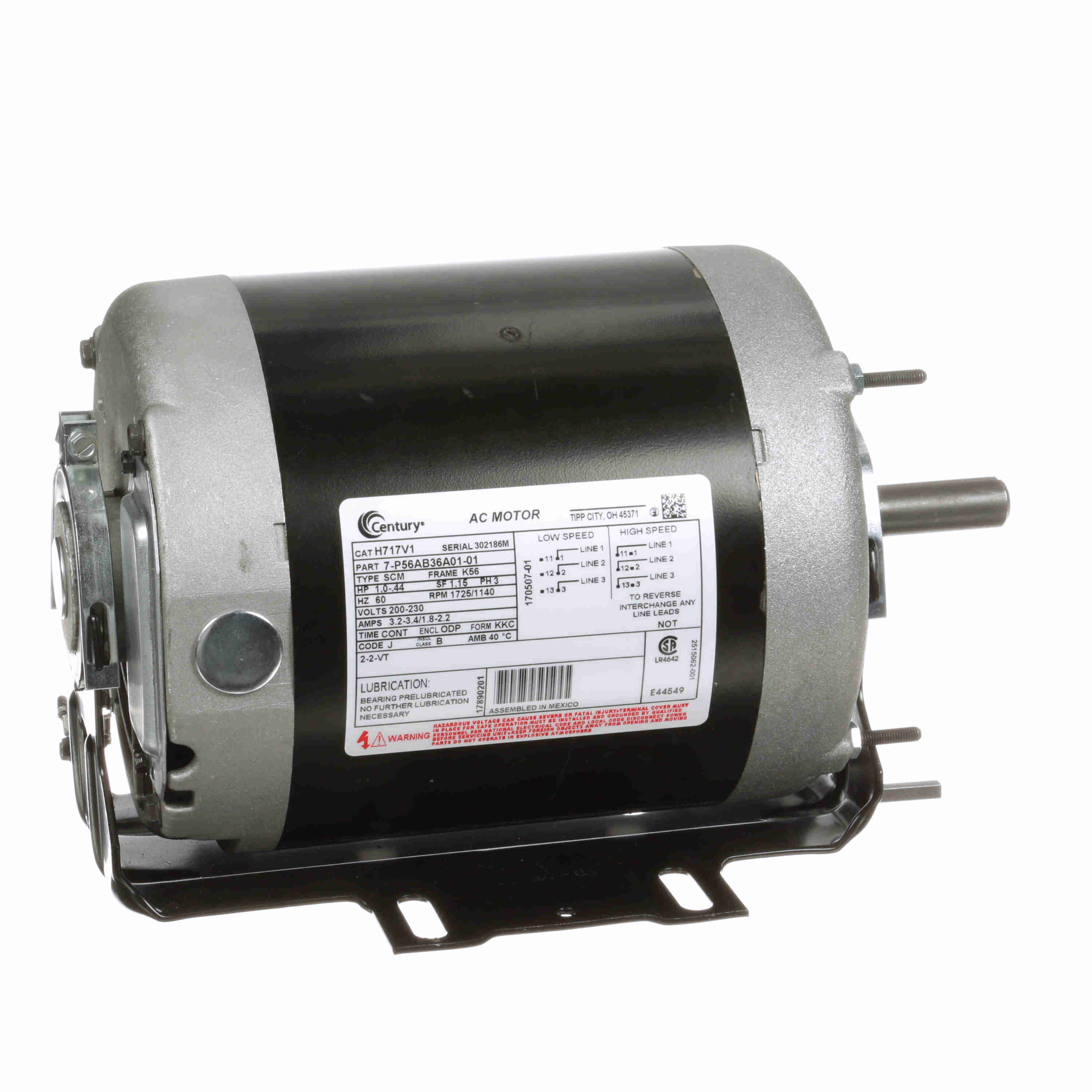

Century Motors H717V1 Fan and Blower Motor 1 HP

Product Description

The Century Motors H717V1 fan and blower motor features a three-phase electrical type and 1 HP. This motor operates at 1725 RPM with a 56 frame size and an ODP enclosure. Constructed from rolled steel, it has ball/ball bearings and a cushion base mounting. It supports a voltage of 200-230 and an amperage of 3.2-3.4/1.8-2.2.

• Three Phase Electrical Type
• Rolled Steel Material
• Cushion Base Mounting

Product Highlights

The Century Motors H717V1 is a 1 HP fan and blower motor with a three-phase design, ideal for various industrial applications.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: H717V1
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Three Phase
• HP: 1
• KW: 0.75
• RPM: 1725
• Frame: 56
• Diameter: 6.5"
• Enclosure: ODP
• Phase: Three
• Voltage: 200-230
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Cushion Base
• Amperage: 3.2-3.4/1.8-2.2
• Shaft Type: Keyed
• Shaft Extension: 1.940"
• Shaft Diameter: 0.625"
• Service Factor: 1.15
• Thermal Protection: No Protection
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 2
• Induction Type: Multi-Speed
• Starting Method: Across The Line
• Poles: 4/6
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 11.07 in
• Frame Length: 5.50 in
• Packaged Length: 13.00 IN
• Packaged Width: 10.00 IN
• Packaged Height: 10.00 IN
