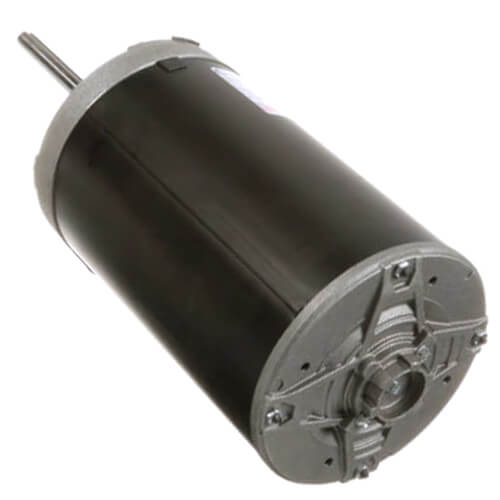

CENTURY MOTORS H697V1 3-Phase Vertical Condenser Fan Motor 1.5HP 1140RPM

Product Description

The CENTURY MOTORS H697V1 is a three-phase vertical condenser fan motor offering robust performance for industrial setups. Ideal for HVAC systems and similar applications, this motor operates with a power output of 1.5 horsepower and speeds up to 1140 revolutions per minute.

• Voltage optimization from 200-230/460 volts ensuring wide application use.
• Durable design with double sealed ball bearings and thermally protected components.
• Easy installation features including a quick-connect design and automatic reset thermal protector.

Product Highlights

Designed to effectively handle demanding environments, this motor features a totally enclosed air-over (TEAO) design that enhances its durability and performance reliability. The rigid 56Y frame increases stability, ensuring long-term operational efficiency.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: H697V1

Technical Specifications

• Type: Induction Run, Polyphase, Single or Dual Voltage
• Frame: 56Y
• Phase: 3
• Poles: 6
• Speeds: 1
• Voltage: 460/200-230V
• Amperage: 2.6/5.4-5.2, 2.6, 5.2, 5.4
• Bearings: Double Sealed Ball
• Rotation: RCW
