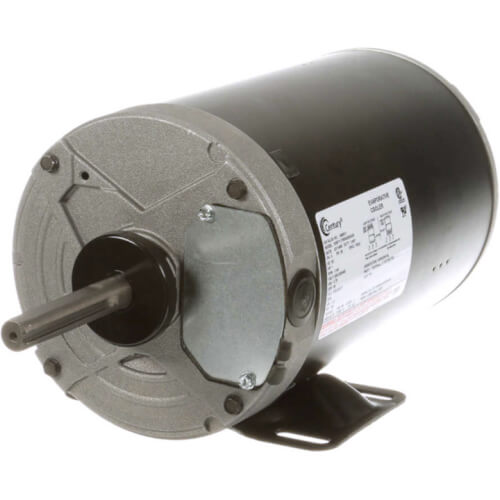

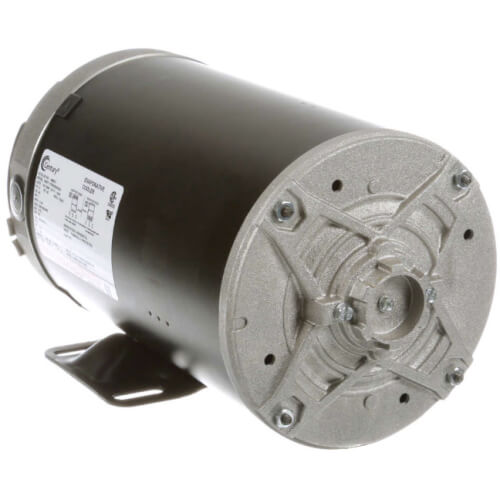

Century H685V1 1 HP 200-230/460v Condenser Fans HVAC/R Motor, 3PH, 1140 RPM, 56 Frame, TEAO

Product Description

The Century H685V1 is a reliable 1 HP Condenser Fans HVAC/R Motor, built to support HVAC systems efficiently. Operating at 200-230/460 volts, this motor is designed for three-phase applications. With a 56 frame, this totally enclosed air-over motor ensures durability and optimal performance.

• 1 HP power
• 1140 RPM speed
• Three-phase motor

Product Highlights

This motor features reversible shaft rotation, automatic protection, and a rigid base for easy installation. Suitable for condenser fans in HVAC systems, it maintains consistent operation under continuous duty cycles with a maximum ambient temperature of 60 degrees Celsius.

Product Information

Standard Information

• Brand: Century
• MPN: H685V1
• Category: Condenser Fan Motors

Technical Specifications

• Horsepower: 1 HP
• Voltage: 200-230/460V AC
• Full Load Amps: 3.8-3.6/1.80
• Frame: 56
• RPM: 1140
• Phase: Three
• Enclosure: Totally Enclosed Air-Over
• Mounting Type: Rigid Base
• Motor Bearings: Ball
• Shaft Diameter: 5/8 inches
• Shaft Length: 3 9/16 inches
• Body Diameter: 6 9/16 inches
• Overall Length: 15 1/8 inches
• Motor Application: HVAC/R
• Max Ambient Temperature: 60 degrees C
• Service Factor: 1
• Motor Shaft Rotation: CW/CCW
