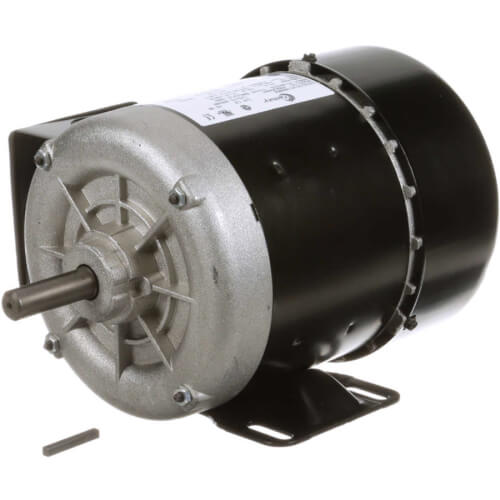

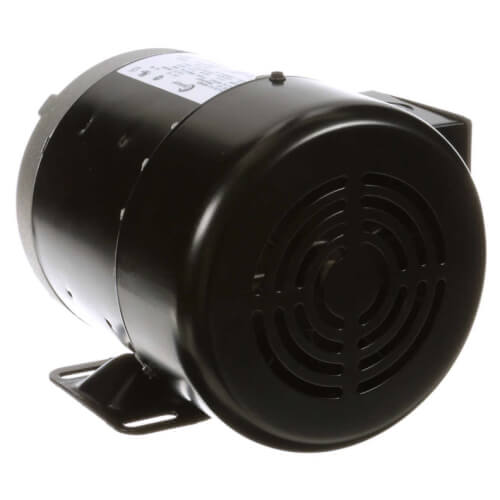

Century H505ES 1 HP 230/460v General Purpose Motor 3 PH 3450 RPM 56 Frame TEFC

Product Description

The Century H505ES 1 HP motor is designed for general-purpose applications. This three-phase motor operates at 230/460 volts and runs at 3450 RPM. It features a 56 frame and is totally enclosed fan-cooled (TEFC).

• 1 HP power capacity
• 3450 RPM speed
• 56 frame size

Product Highlights

This motor is ideal for various HVAC and industrial applications. It provides reliable performance and durability, with a robust construction that supports continuous duty. The TEFC enclosure ensures protection against environmental factors, making it suitable for harsh conditions.

Product Information

Standard Information

• Brand: Century
• MPN: H505ES
• Category: HVAC Supplies
• Product Name: 1 HP 230/460v General Purpose Motor, 3 PH, 3450 RPM, 56 Frame, TEFC

Technical Specifications

• Voltage: 230/460v
• Amperage: 1.5, 3.0/1.5, 3
• Bearings: Ball
• Rotation: RCCW
• Horse Power: 1
• Insulation Class: B
• Overload Protection: None
• Max Ambient Temp: 104°F
• Type: Induction Run, Polyphase, Single or Dual Voltage
• Frame: 56
• Mount: Rigid Base
• Phase: 3
• Poles: 2
• Speeds: 1
• Duty: Continuous
• Enclosure Type: Totally Enclosed Fan-Cooled (TEFC)
