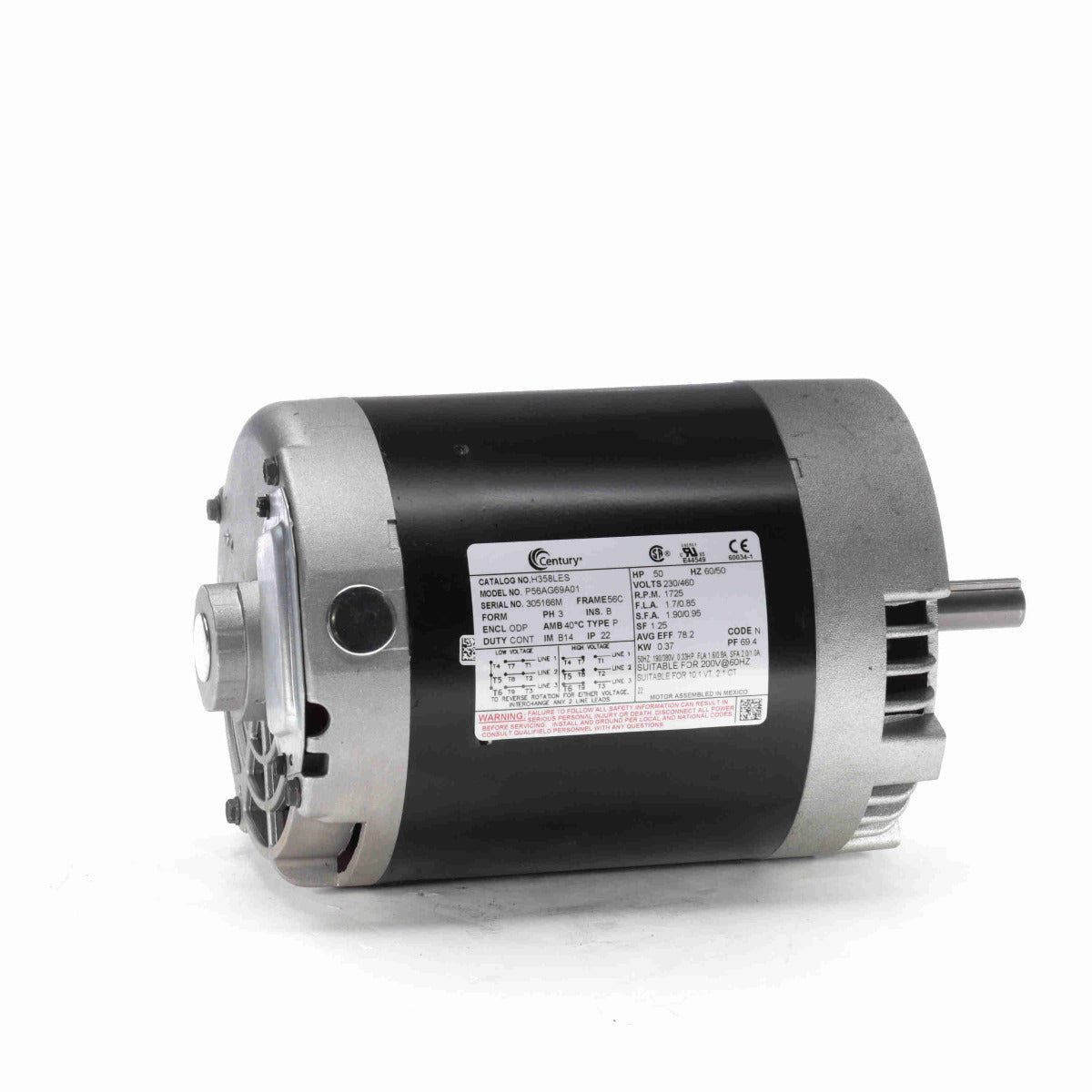

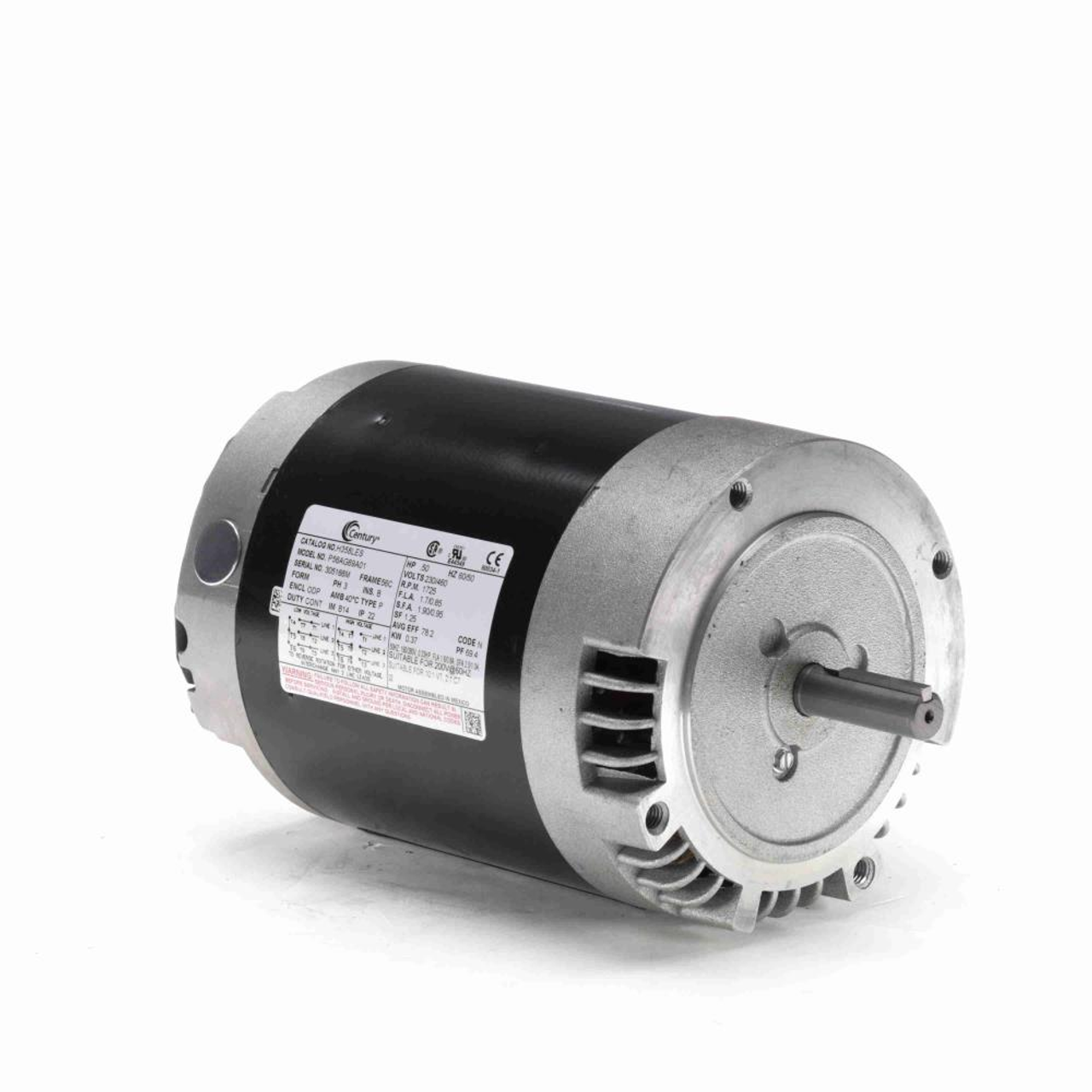

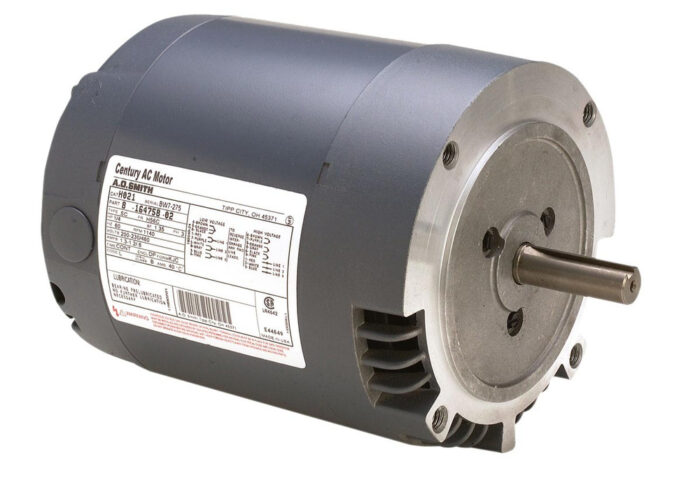

CENTURY MOTORS H358LES General Purpose Motor 1/2 HP

Product Description

The CENTURY MOTORS H358LES is a three-phase electric motor designed for various applications. This 1/2 HP motor is suitable for direct mounting with its C-face design. It operates at one thousand seven hundred twenty-five RPM and has an open drip-proof enclosure. The motor is constructed from rolled steel and features double-sealed ball bearings for reliability in continuous duty operations. The reversible rotation design adds versatility to its use.

• Three-phase motor operates on two hundred to four hundred sixty Volts.
• Features an open drip-proof enclosure.
• Designed for continuous duty applications.

Product Highlights

This motor is ideal for HVAC systems, manufacturing equipment, and various industrial applications.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: H358LES

Technical Specifications

• Horsepower: 1/2 HP
• Input Voltage: 200-230/460 Volts
• Phase Type: 3 Phase
• Frequency: 60/50 Hz
• RPM: 1725
• Frame Size: 56C
• Enclosure Type: ODP (Open Drip Proof)
• Rotation: Reversible
• Current Rating: 1.7/0.85 Amps
• Service Factor: 1.25
• Maximum Ambient Temperature: 40°C
• Insulation Class: Class B
• Material: Rolled Steel
• Number of Speeds: 1
• Shaft: 5/8 x 1.94, Keyed
• Bearing Type: Ball Bearing
• Duty Type: Continuous Duty
• Mounting Type: Round Frame
• Overload Protector: None
