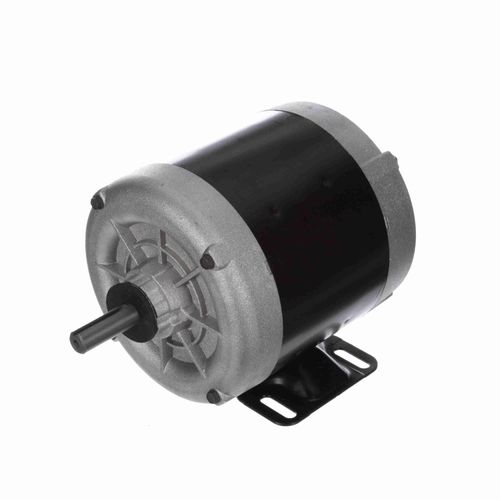

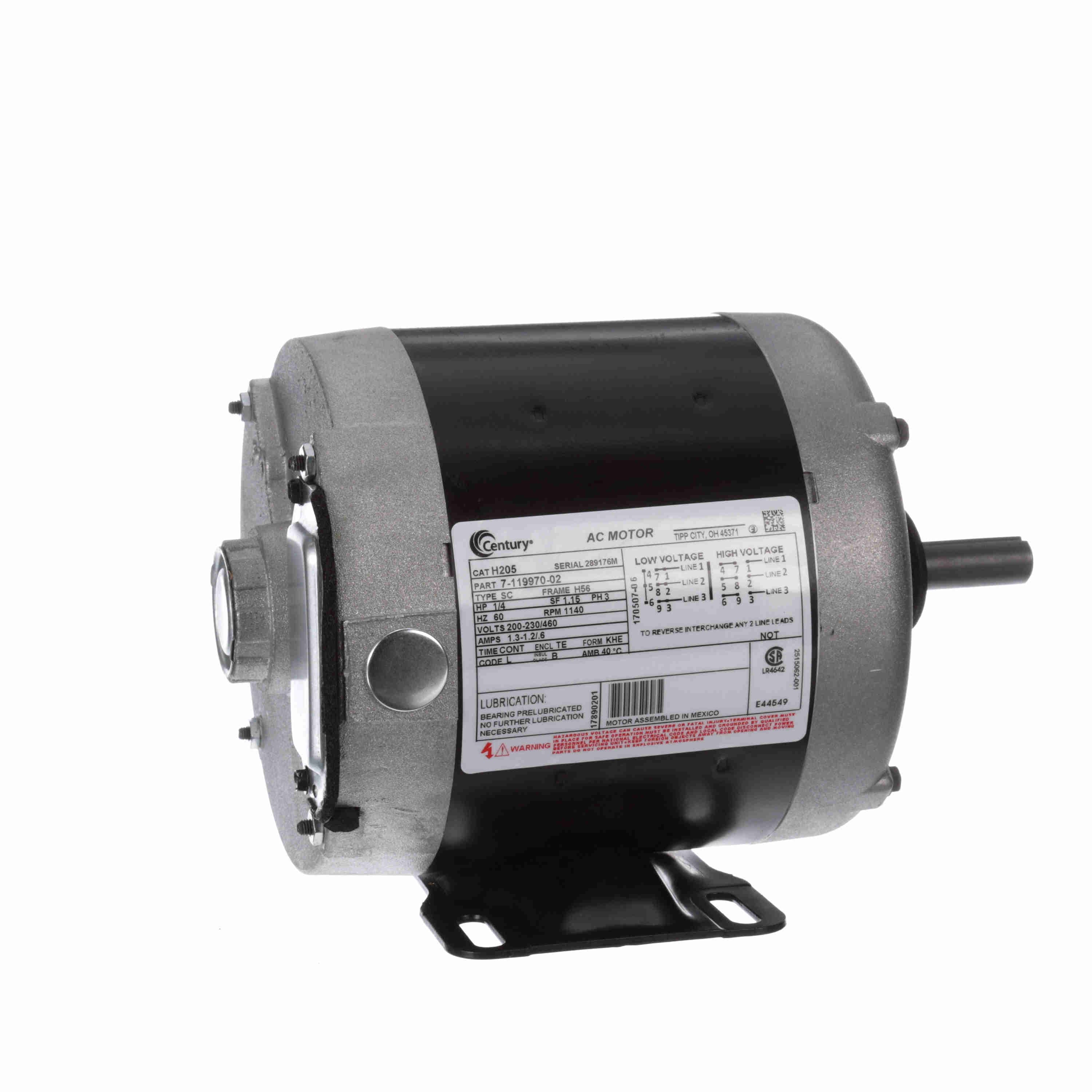

Century Motors H205 General Purpose Motor 0.25 hp

Brand: CENTURY MOTORS
SKU: H205
Availability: In Stock

Ships same day if ordered by 12 pm
$587.64
$587.64
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CENTURY MOTORS H205 is an original OEM general purpose motor with 0.25 hp. It is suitable for belt-driven or fan-on-shaft applications. The motor features heavy-duty, rolled steel construction for durability and permanently lubricated sealed bearings to extend its lifetime. It is a UL-recognized component and CSA certified.

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.

Product Highlights

The CENTURY MOTORS H205 is a durable and safe motor suitable for various applications.

Product Information

Standard Information

  • Brand: CENTURY MOTORS
  • Manufacturer Part Number: H205
  • Country of Origin: Mexico
Technical Specifications
Horse Power
1/4
Brand
Century
SKU
H205
Phase
3
Output HP
1/4 Hp
Output KW
0.19 kW
Voltage
200-230/460 V
Speed
1140 rpm
Service Factor
1.15
Frame
H56
Enclosure
Totally Enclosed Non Ventilated
Thermal Protection
No Protection
Ambient Temperature
40 0C
Frequency
60 Hz
Current
1.3-1.2/.6 A
Duty
Continuous
Insulation Class
B
UL
Recognized
CSA
Y
CE
N
Number of Speeds
1
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Starting Method
Across The Line
Poles
6
Rotation
Reversible
Mounting
Rigid Base
Drive End Bearing
Ball
Opp Drive End Bearing
Ball
Frame Material
Rolled Steel
Shaft Type
Keyed
Overall Length
10.13 in
Frame Length
4.13 in
Shaft Diameter
5/8" Keyed
Shaft Extension
1.974 in
UPC
786674022905
HTC
8501.51.4040
Item
General Purpose AC Motor
Motor Type
3-Phase
Nameplate RPM
1140
Base
Rigid
Shaft Number
1
Shaft Length
2"
Shaft Height
3.5"
Shaft Dia.
0.625"
"C" Dim
10.1
Protection
None
Cooling
Ambient
Rated Load (HP)
1/4
AC Frequency Rating
60 Hz
Enclosure Type
TENV (Totally Enclosed Non-Ventilated)
Base RPM
1200
AC Motor Type
Induction/Asynchronous
Mounting Type
Base-Mounted, Foot-Mounted
Reversible/Non-Reversible
Reversible
Current Type
AC
Model
H205
Nominal Rated Input Voltage
200 V, 208 V, 230 V, 460 V
AC Phase
Three Phase
Catalog#
H205
Manufacturer
Century
Product Type
3 Phase
RPM
1140
Volts
200-230/460
Amps
1.3/1.2/0.6
Hz
60
Motor Diameter
6-1/2"
Service Factor (SF)
1.15
Bearings
Ball
Maximum Ambient Temperature
40 C
Duty Cycle
Continuous
Rated Motor Output Power
1/4 HP
Rated Motor Speed
1140 RPM
Rated Motor Voltage
200-230V,460V
Rated Motor Current
1.3-1.2/0.6 AMP
C-Dimension
10.13"
DE Bearing
Ball
NDE Bearing
Ball
Hazardous Locations
CSA Certified
Agency Approvals
CSA & UL
