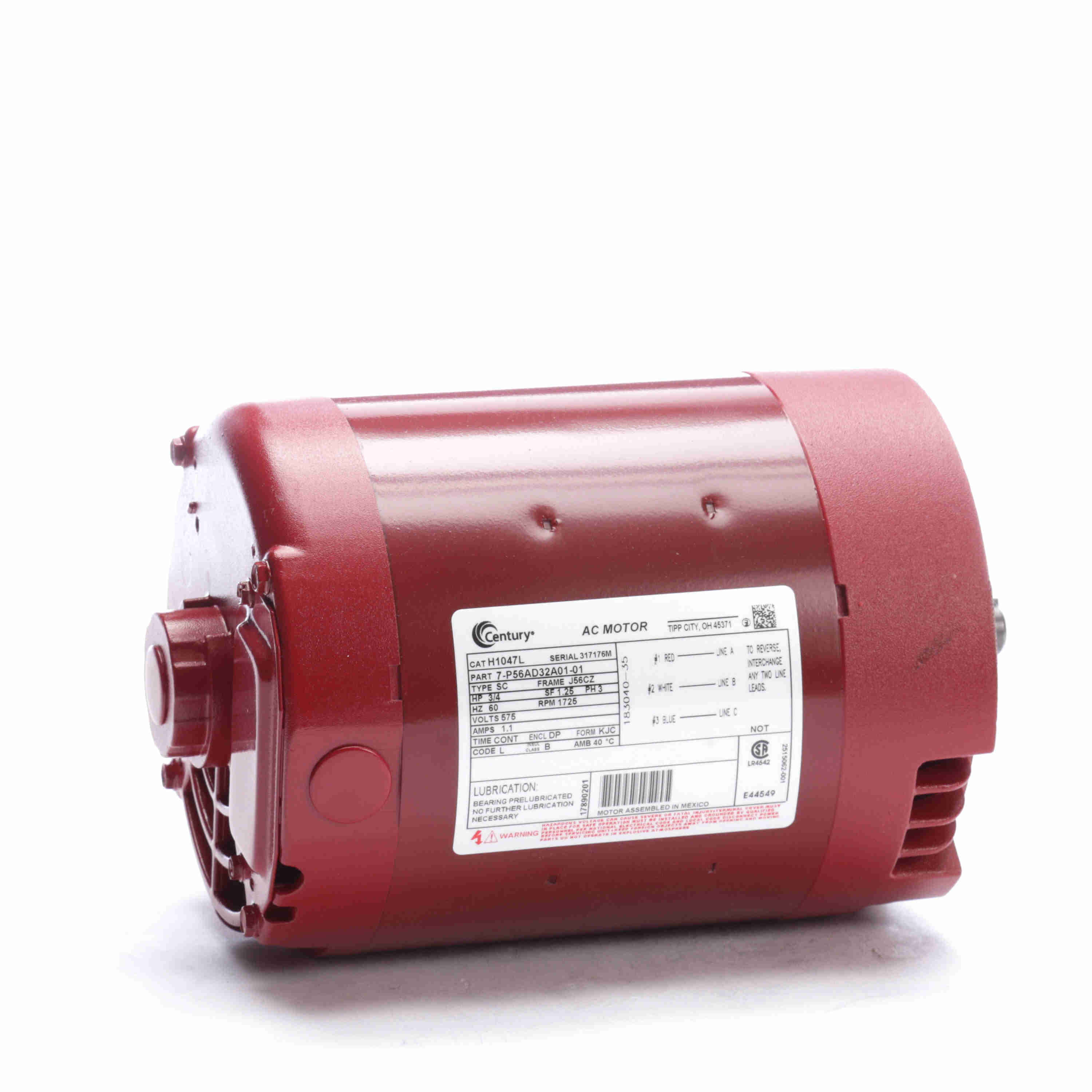

Century Motors H1047L Circulator Pump Motor 0.75 HP

Product Description

The Century Motors H1047L is a three-phase circulator pump motor designed for efficiency and reliability. This motor operates at five hundred seventy-five volts and sixty Hertz, suitable for heavy-duty applications.

• Three-phase power for performance
• Open drip-proof enclosure
• Reversible operation

Product Highlights

This motor features a C-face mount without a base, allowing for easy installation. The design supports continuous duty and is rated for three-quarters horsepower, with a service factor of one point two five.

Product Information

Standard Information

• Brand: Century Motors
• MPN: H1047L

Technical Specifications

• Horsepower: 0.75 HP
• RPM: 1725
• Input Voltage: 575V
• Frequency: 60 Hz
• Full Load Amps: 1.1 A
• Phase: 3
• Enclosure Type: ODP (Open Dripproof)
• Frame Size: 56CZ
• Mounting Type: C-Face
• Service Factor: 1.25
• Bearings: Ball
• Shaft Diameter: 0.625 inches
• Shaft Length: 1.12 inches
• Electrical Type: Polyphase
• Induction Type: Induction Type
• Starting Method: Across The Line
• Duty Cycle: Continuous
• Maximum Ambient Temperature: 40°C
• Motor Shell Length: 5-1/8 inches
• Overall Length: 10.25 inches
• Ship Weight: 22 lbs
• Rotation: Reversible
