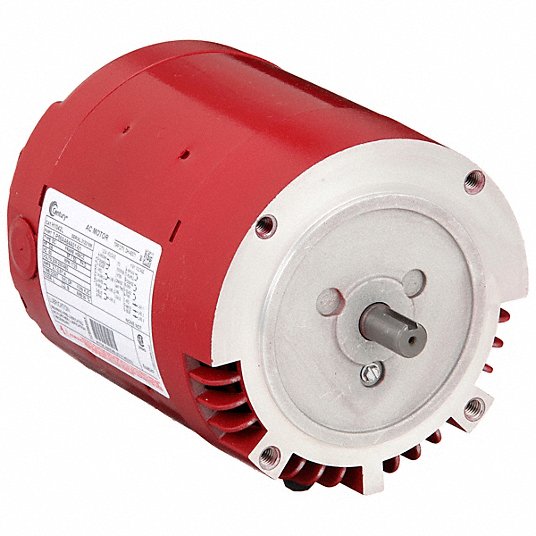

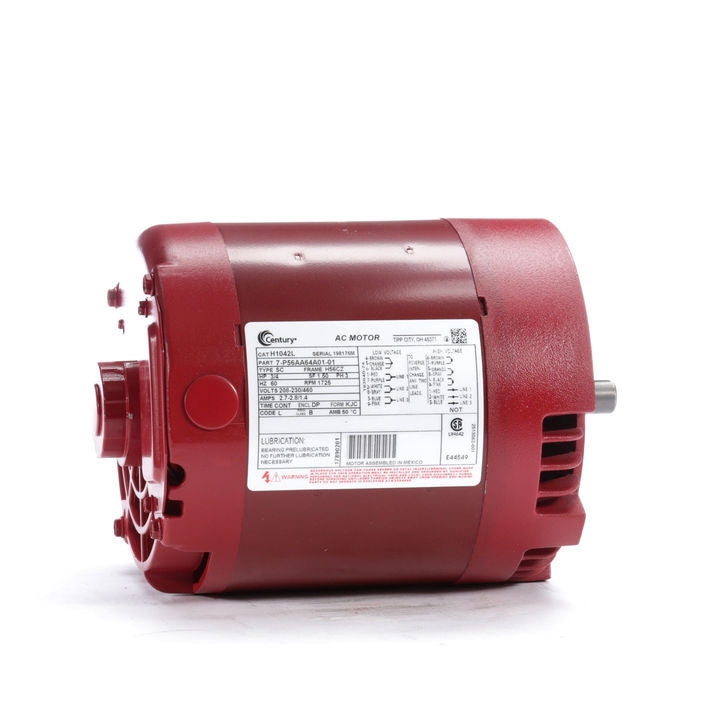

Century Motors H1042L Circulator Pump Motor 3/4 HP 208-230/460 V

Product Description

The CENTURY MOTORS H1042L circulator pump motor is designed as a replacement part. This 3/4 HP motor operates at 208-230/460V, 60 Hz, and 1725 RPM. It features a H56CZ frame, drip-proof enclosure, and is suitable for various applications requiring a reliable motor. The motor has a continuous duty cycle and B insulation class.

• Reversible rotation
• Features a cushion ring, no base and C-face
• No thermal protection

Product Highlights

This motor is designed for robust performance and ease of use, ideal for powering equipment in industrial and commercial settings.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: H1042L
• Country of Origin: Mexico

Technical Specifications

• Phase: 3
• Output HP: 3/4 Hp
• Output KW: 0.56 kW
• Voltage: 208-230/460 V
• Speed: 1725 rpm
• Service Factor: 1.50
• Frame: H56CZ
• Enclosure: Drip Proof
• Thermal Protection: No Protection
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: 2.7-2.8/1.4 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible Counterclockwise
• Mounting: Round
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 9.25 in
• Frame Length: 4.13 in
• Shaft Diameter: 5/8" Keyed
• Shaft Extension: 1.25 in
• Nameplate Voltage: 208-230/460V AC
• Compatible with Brand: Century
• Ambient Temperature - Maximum: 122 °F
• Frame Size: 56CZ
• Manufacturer Part Number: H1042L
• Standards: CSA; UL Listed
• Motor Enclosure Design: Open Drip Proof
• Full Load Current: 2.7 A
• Compatible with Pump Type: In-Line Circulating Pumps
• Horsepower: 3/4 hp
• Bolt Circle Diameter: 5-7/8 in
• Body Diameter: 6-1/2 in
• Product Type: 3 Phase
• RPM: 1725
• Volts: 208-230/460
• Hz: 60
• Enclosure Type: ODP (Open Dripproof)
• Motor Diameter: 6-1/2"
• Bearings: Ball
• Duty Cycle: Continuous
• Category: Hot Water Circulator Pump Motor
• Motor Type: AC Motor
• Full Load Amps: 2.7-2.8/1.4
• Ambient Teperature: 50C
• Full Load Speed: 1725
