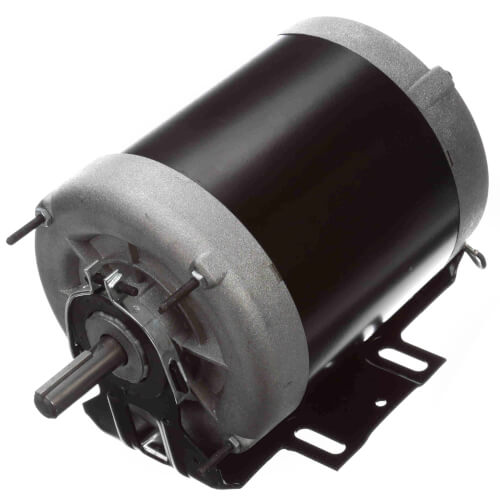

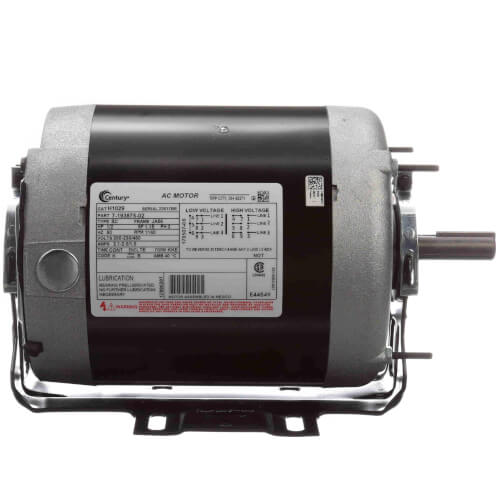

Century H1029 56 Frame 3-Phase Motor 1/2 HP 1140 RPM 200-230/460V

Product Description

Century H1029 56 Frame 3-Phase Motor provides a reliable solution for various HVAC applications. This motor operates at 1/2 horsepower and delivers 1140 RPM. It is compatible with voltage inputs of 200-230/460V, ensuring versatility in installation environments.

• 3-phase motor for HVAC systems
• Runs at 1140 RPM
• Handles voltage between 200-230/460V

Product Highlights

The Century H1029 56 Frame Motor is suitable for belt drive fan/blower applications. It features ball bearings, a cradle base, and a totally enclosed non-ventilated design.

Product Information

Standard Information

• Motor Bearings: Ball
• Mounting Type: Cradle Base
• Service Factor: 1.15
• Insulation Class: B
• Thermal Protection: None

Technical Specifications

• Voltage: 200-230/460V
• Full Load Amps: 2.1-2.0/1.0
• RPM: 1140
• Phase: 3
• Horsepower: 1/2
• Max Ambient Temperature: 104°F
• Overall Length: 11-1/16 inches
• Shaft Diameter: 5/8 inches
• Shaft Length: 1-7/8 inches
• Enclosure Type: Totally Enclosed Non-Ventilated (TENV)
• Weight: 27 lbs
