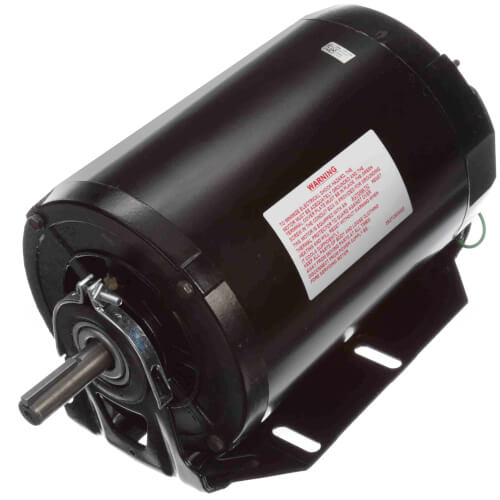

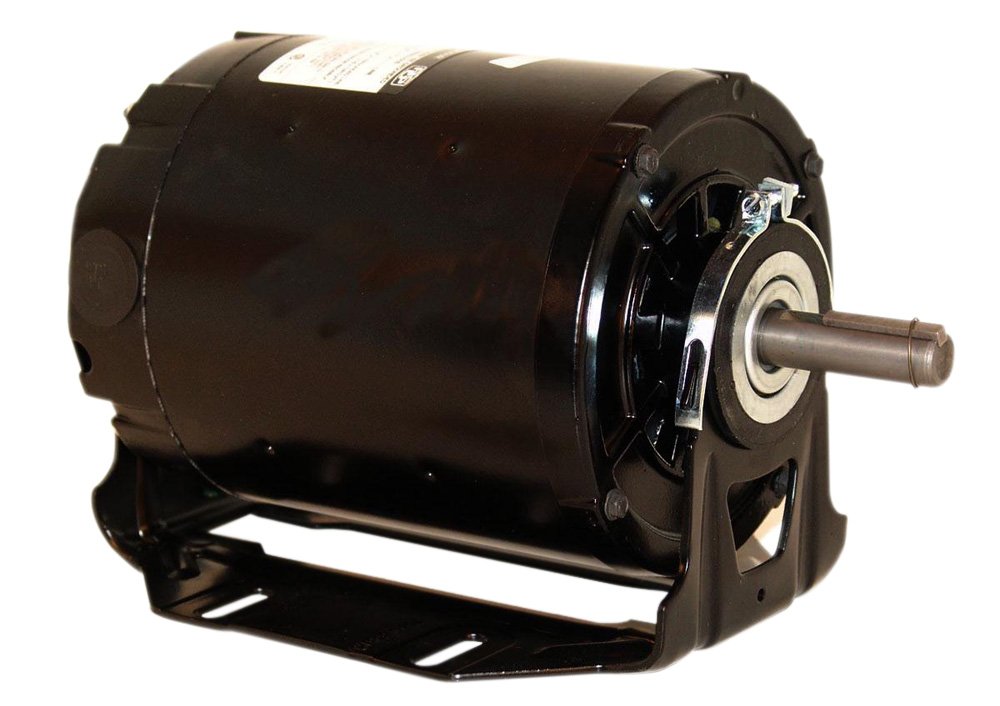

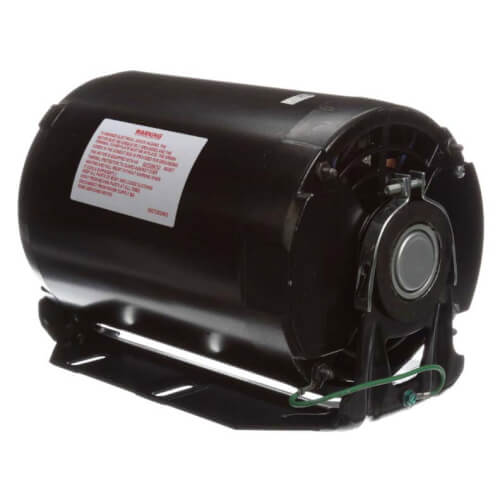

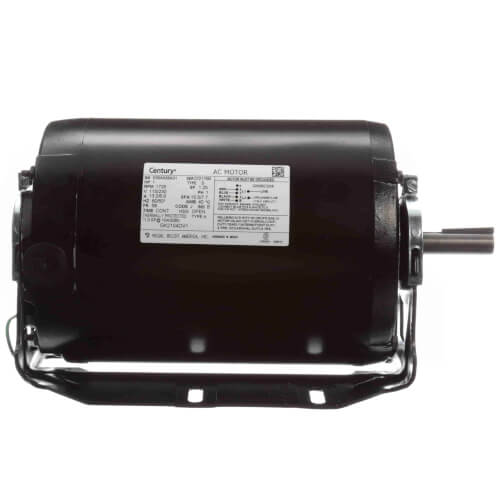

Century GK2104DV1 Split Phase Motor 1 HP 1725 RPM 115/230V 56 Frame ODP

Product Description

The Century GK2104DV1 motor is a resilient base sleeve bearing motor designed for belt drive fan and blower applications. It has a 1 HP rating with 1725 RPM and operates on 115/230 volts. This motor features a split phase electrical type, automatic overload protection, and an open drip proof enclosure.

• 1 HP motor
• 1725 RPM
• 115/230 volts operation

Product Highlights

This motor is suitable for use in HVAC systems and other applications requiring a belt drive blower motor. Its reversible rotation and resilient base mounting provide flexibility and ease of installation.

Product Information

Standard Information

• Brand: Century
• Model Number: GK2104DV1

Technical Specifications

• Horsepower: 1 HP
• Speed: 1725 RPM
• Voltage: 115/230V
• Frame: 56
• Amperage: 15.6/7.87 amps
• Enclosure: ODP
• Bearing Type: Sleeve
• Shaft Size: 5/8 inch x 1-7/8 inch
• Overload Protection: Automatic
• Mounting Type: Resilient Base
• Rotation: Reversible
