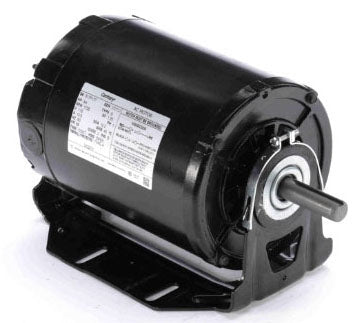

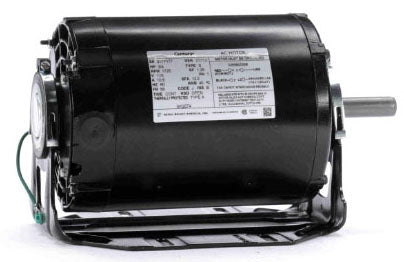

Century Motors GK2074 General Purpose Motor 3/4 HP 115 VAC 1-Phase Reversible

Product Description

Explore the Century Motors GK2074 General Purpose Motor, designed for reliable performance in a range of HVAC applications. This robust motor supports applications such as centrifugal pumps, blowers, and fans.

• Delivers 3/4 horsepower and operates at 115 VAC on a single-phase connection.
• Features a high service factor of 1.25, enhancing efficiency and durability.
• Equipped with a reversible function, allowing for flexible installation options.

Product Highlights

The motor is built with a resilient base mounting, ensuring stability and reduced vibration during operation. Its rugged rolled steel frame and class B insulation provide excellent protection and a prolonged lifespan.

Product Information

Standard Information

• NEMA Frame Size: 56
• Speed: 1725 RPM
• Shaft Size: 0.625 inches diameter x 1.88 inches length

Technical Specifications

• Enclosure Type: Open
• Number of Poles: 4
• Motor FLA: 12.2 Amp
• Frequency Rating: 60 Hertz
• Insulation Class: B
• Weight: 21 pounds
