Product Description

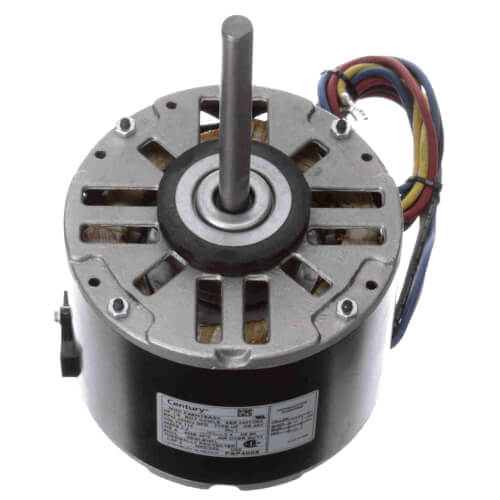

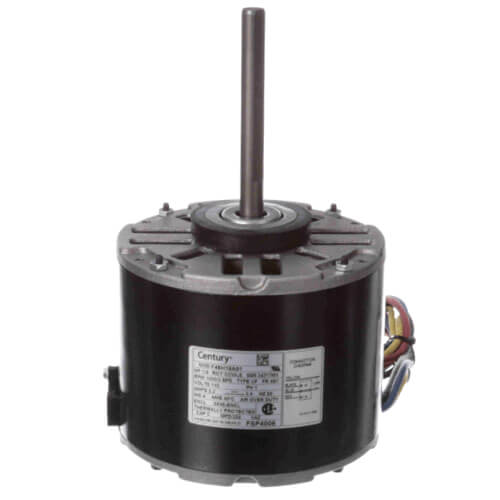

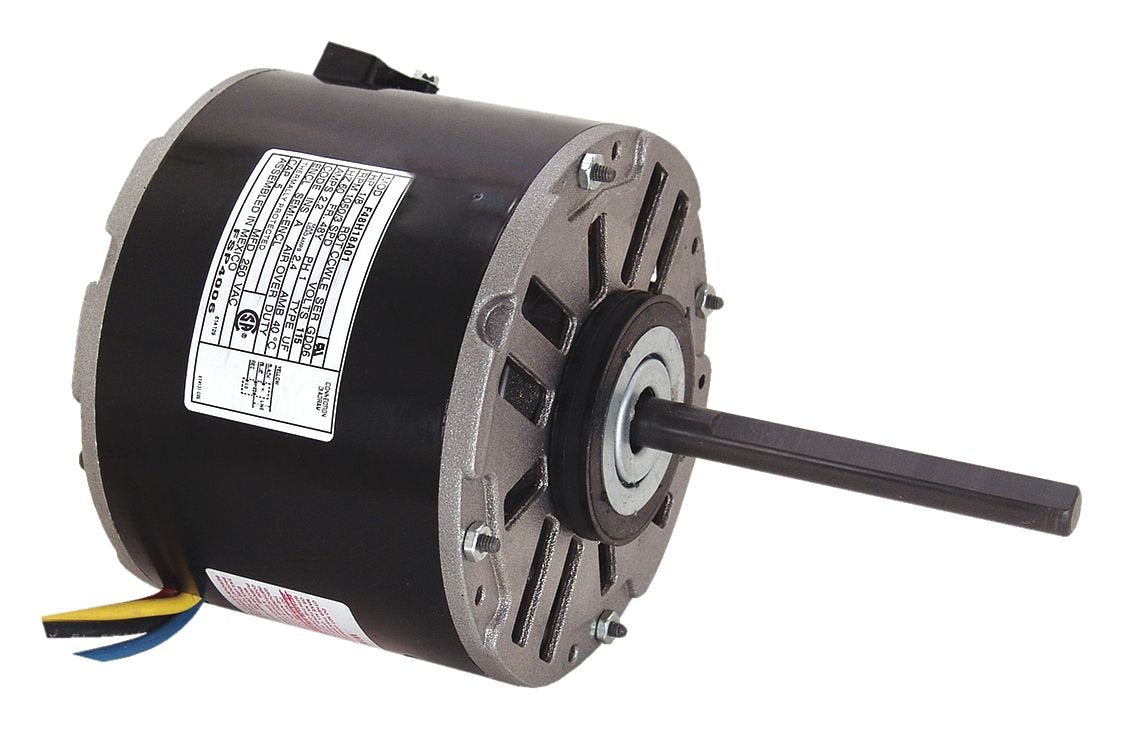

The Century FSP4006 Motor is a permanent split capacitor (PSC) motor designed for direct drive blower applications. This motor operates at 1/8 horsepower and 1050 RPM with a voltage of 115V. It features a 48Y frame and an open air-over enclosure. Suitable for various HVAC applications.
- 1/8 HP motor with 1050 RPM speed
- 115V with 2.2 full load amps
- Sleeve bearing with automatic thermal protection
Product Highlights
This motor is compatible with room air conditioners, unit heaters, condensers, furnace blowers, and other fan and blower equipment. It includes resilient mounting rings and utilizes a 1/2-inch diameter shaft.
Product Information
Standard Information
-
Brand: Century
-
Model: FSP4006
-
Application: Direct Drive Fan/Blower
Technical Specifications
-
Horse Power: 1/8
-
Nameplate RPM: 1050
-
Voltage: 115V
-
Full Load Amps: 2.2
-
Frequency: 60 Hz
-
Mount: Resilient Rings
-
Frame: 48Y
-
Insulation Class: A
-
Bearings: Sleeve
-
Thermal Protection: Auto
-
Shaft Orientation: Horizontal
-
Shaft Diameter: 1/2 inches
-
Shaft Length: 4-1/4 inches
-
Body Diameter: 5-5/8 inches
-
Length Less Shaft: 5-3/8 inches
-
Rotation: CCWLE
-
Number of Speeds: 3
-
Duty: Continuous
-
Max. Ambient Temp: 104°F
