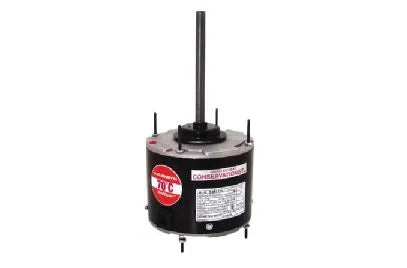

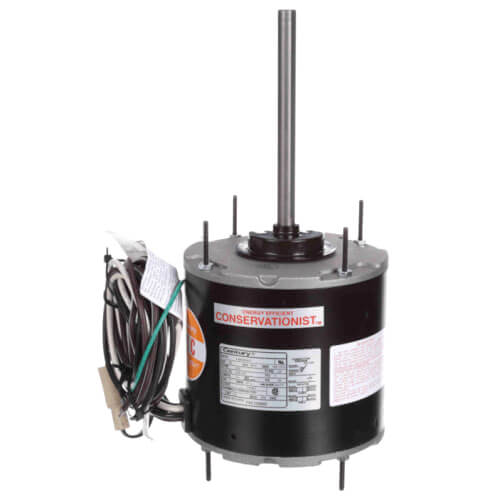

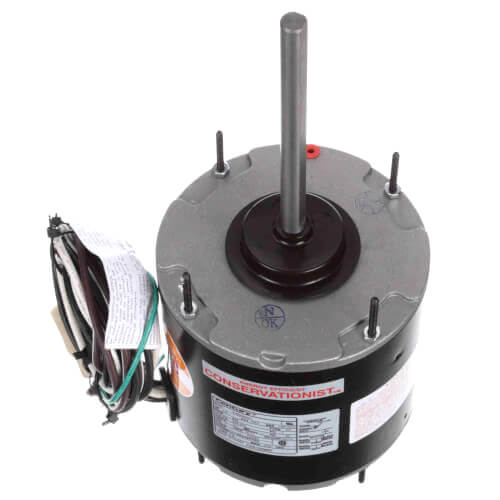

Century FSE1038SF 5-5/8 1-Speed Outdoor Sleeve Bearing Motor 208-230V 825 RPM 1/3 HP

Product Description

The Century FSE1038SF is a permanent split capacitor motor designed for use in condenser, heat pump, and refrigeration applications. It operates at 208-230 volts and has a horsepower rating of one-third. With a rotation speed between 721 to 900 RPM, this single-phase motor is suitable for various HVAC systems. Built with a totally enclosed design, it ensures durability and protection against environmental factors.

• Permanent split capacitor type
• Operating voltage of 208-230V
• Reversible operation with sleeve bearings

Product Highlights

This outdoor sleeve bearing motor features a diameter of five and five-eighths inches and is designed for all-angle mounting.

Product Information

Standard Information

• Manufacturer: Century Motors
• Product Type: Residential

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208-230V
• Amperage: 2.1A
• RPM Range: 721 to 900
• Phase: Single
• Mounting: All Angle Stud
• Insulation Class: F
• Diameter: 5-5/8 inches
• Weight: 15 lbs
