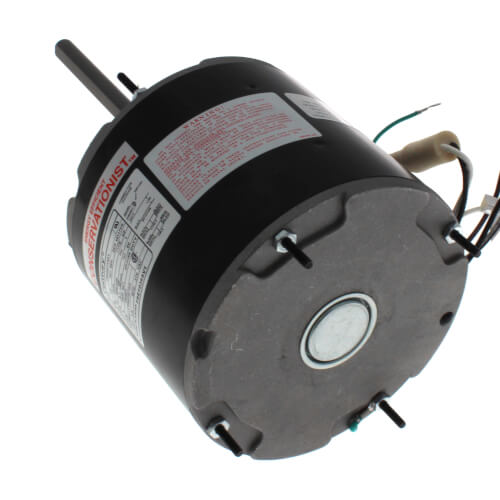

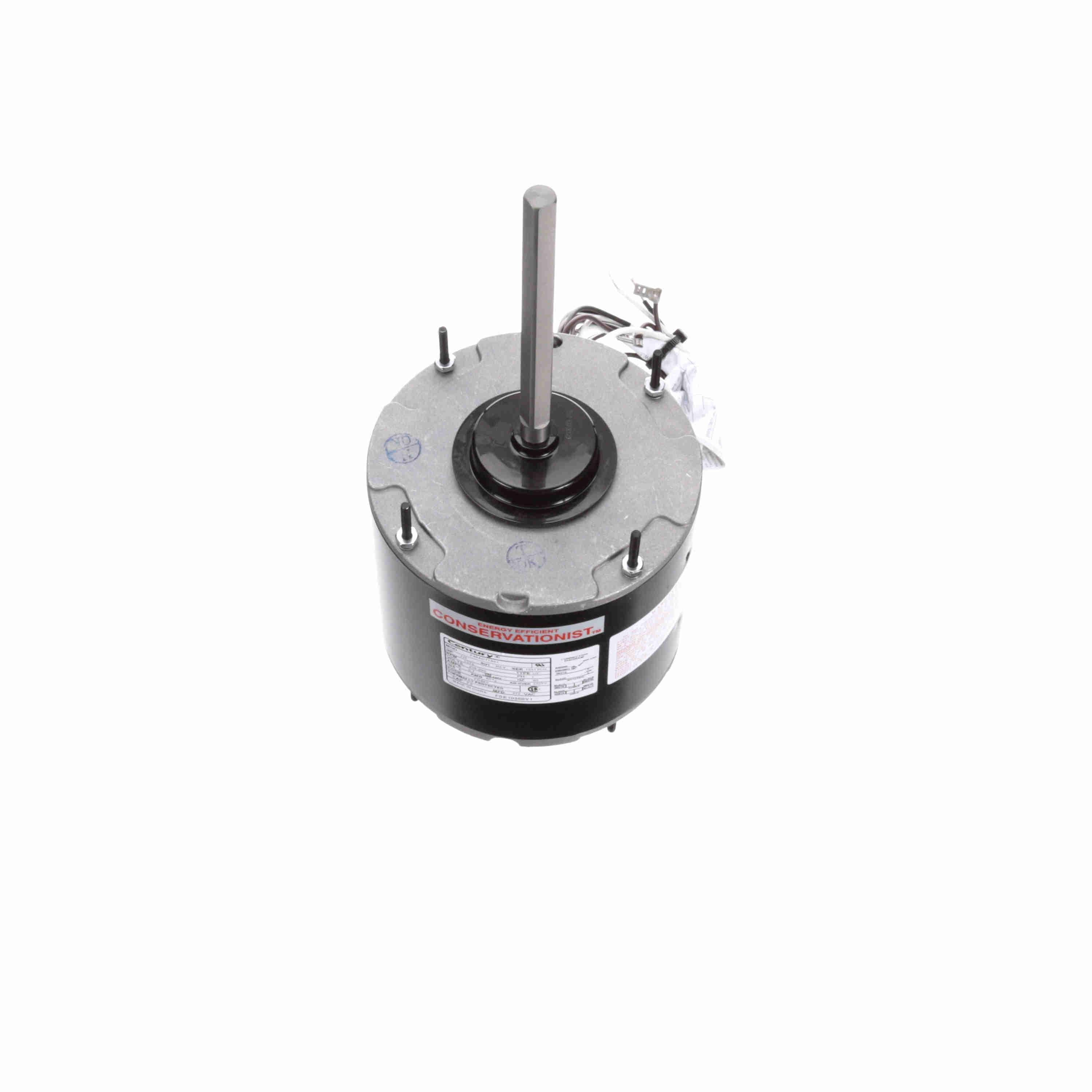

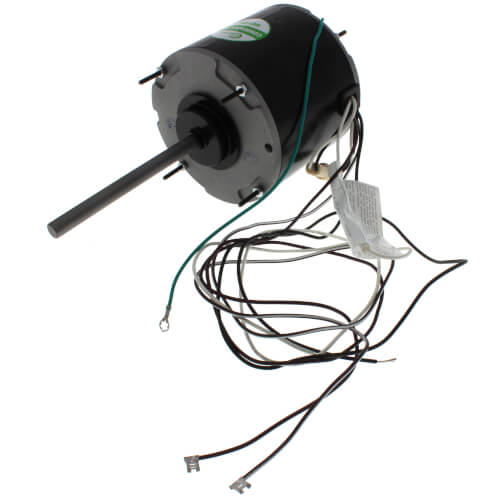

Century FSE1036SV1 UF Condenser Fan AC Motor, 1/3 hp, 208 to 230 VAC, 1075 rpm Speed

Product Description

The Century FSE1036SV1 is a UF condenser fan AC motor designed for reliable performance in air conditioning applications. This motor operates at 1/3 horsepower and functions within a voltage range of 208 to 230 VAC at a frequency of 60 Hz. It spins at a speed of 1075 rpm, making it suitable for various condenser fan applications.

• Energy efficient design
• Reversible rotation capability
• Enclosed structure for enhanced safety

Product Highlights

Ideal for HVAC professionals looking for a durable and efficient motor for condenser fan units.

Product Information

Standard Information

• Brand: Century
• MPN: FSE1036SV1

Technical Specifications

• Horsepower: 1/3 hp
• Voltage Rating: 208 to 230 VAC
• Amperage Rating: 2.7 A
• Frequency Rating: 60 Hz
• Phase: 1
• Speed: 1075 rpm
• Frame: 48
• Dimensions: 5.625 inches Diameter x 11.3 inches Length
• Shaft Size: 1/2 inches Diameter x 6.44 inches Length
• Rotation: Reversible
• Bearing Type: Sleeve
• Enclosure Type: Enclosed
• Service Factor: 1
• Insulation Class: Class B
• Temperature Rating: 60 degrees C
