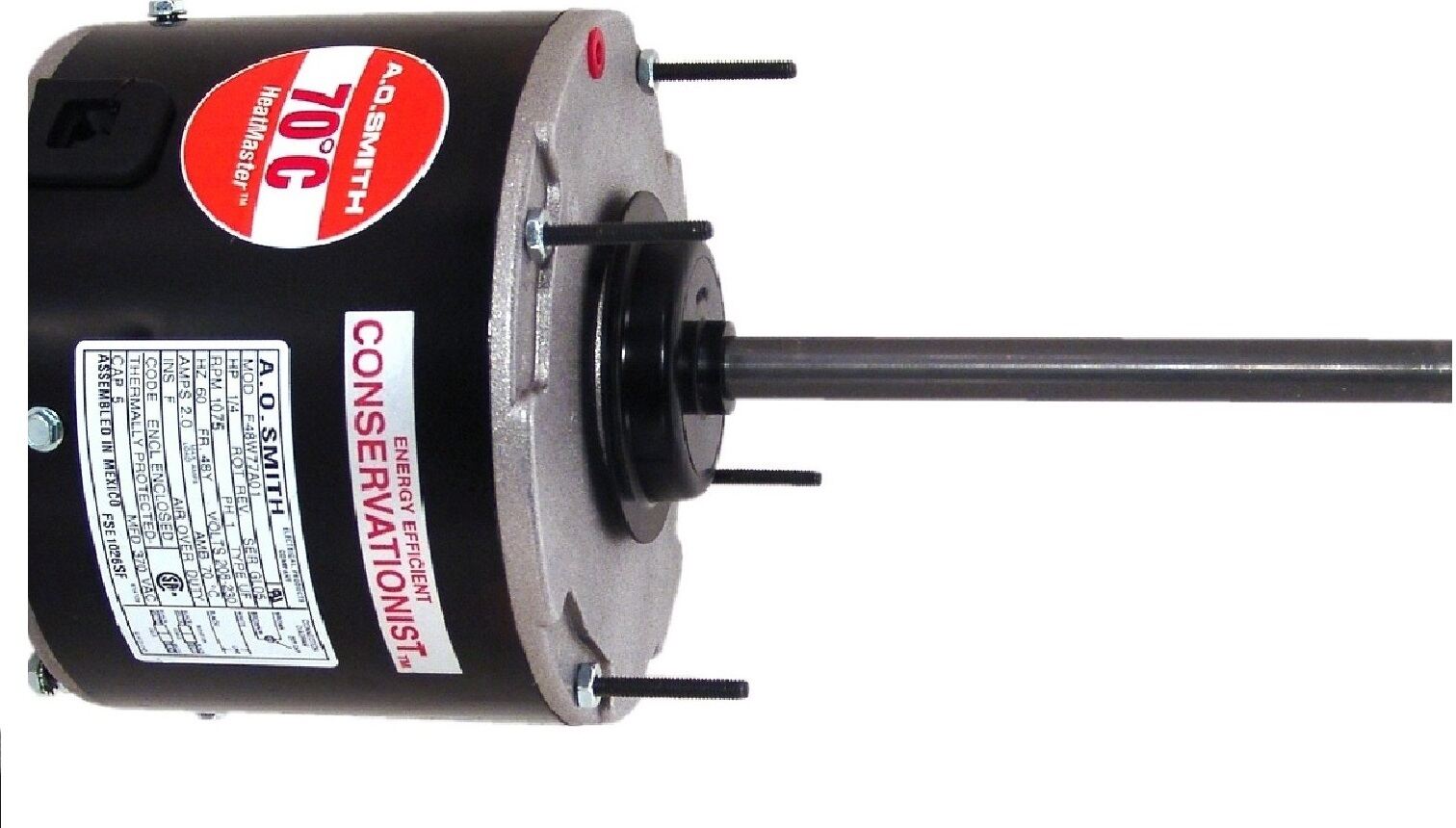

Century FSE1028SF Condenser Fan Motor 1/4 HP 208-230 VAC 825 RPM Reversible

Product Description

The Century FSE1028SF Condenser Fan Motor is a robust solution for HVAC applications. This single-phase motor offers 1/4 HP and operates at 208-230 volts with 825 RPM. It features a permanent split capacitor (PSC) and reversible rotation.

• Energy efficient
• Automatic thermal protection
• 48 frame size

Product Highlights

This motor is energy efficient and includes automatic thermal protection. Its 48 frame size and reversible rotation make it versatile for various condenser fan applications.

Product Information

Standard Information

• Brand: Century Motors
• Model: FSE1028SF
• Category: Motor > HVAC/R Motor > Condenser Fan Motor

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 208-230 VAC
• RPM: 825
• Rotation: Reversible
• Frame Size: 48
• Amperage: 1.5
• Mounting Type: Extended Studs
• Shaft Type: Double Flat
• Shaft Extension: 6.500 inches
• Shaft Diameter: 0.500 inches
• Enclosure: TEAO
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Insulation Class: F
• Service Factor: 1
• Poles: 8
• Thermal Protection: Automatic
• Frequency: 60 Hz
• Country of Origin: India
