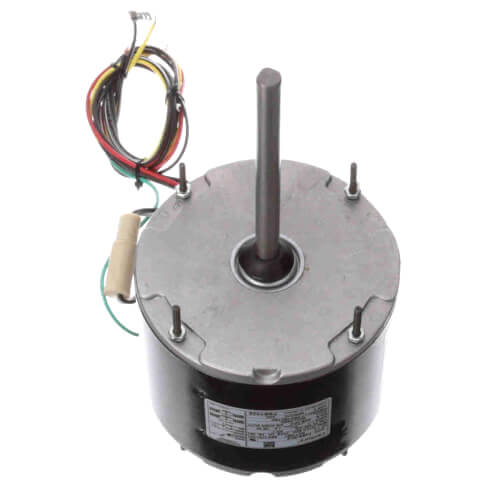

Century FSE1026 5-5/8 Inch 2-Speed Outdoor Sleeve Bearing Motor 208-230V 1075 RPM 1/4 HP

Product Description

The Century FSE1026 5-5/8 Inch 2-Speed Outdoor Sleeve Bearing Motor operates at 208-230 volts with a speed of 1075 RPM and 1/4 horsepower. This motor is perfect for various HVAC applications and ensures efficient performance.

• Energy efficient
• Permanent split capacitor
• Reversible rotation

Product Highlights

This motor features class B or F insulation and ball or sleeve bearing options. It is designed with extended through bolts, a 1/2 inch flatted shaft, and operates at 60 Hz. Suitable for all angle mounts and comes with an automatic protector for overload safety.

Product Information

Standard Information

• Brand: Century
• MPN: FSE1026
• Name: 5-5/8 Inch 2-Speed Outdoor Sleeve Bearing Motor

Technical Specifications

• RPM: 1075
• Duty: Air Over
• Type: Permanent Split Capacitor
• Frame: 48Y
• Hertz: 60
• Mount: Extended Studs
• Phase: 1
• Poles: 6
• Speeds: 2
• Voltage: 208/230V
• Amperage: 1.3
• Bearings: Sleeve
• Rotation: Reversible
• Horse Power: 1/4
• Enclosure Type: Totally Enclosed
• Insulation Class: B
• Diameter: 5-5/8 inches
• Motor Orientation: Any
• Overload Protection: Automatic
• Max Ambient Temperature: 140°F
