Century FS1038 Condenser Motor 1/3-HP 825-RPM 208-230-Volt 5.6-Inch Frame Diameter

Product Description

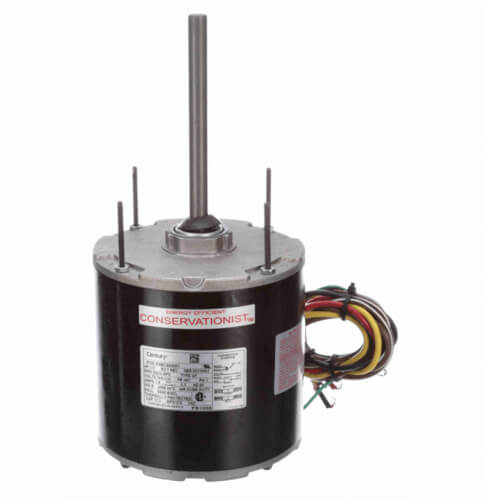

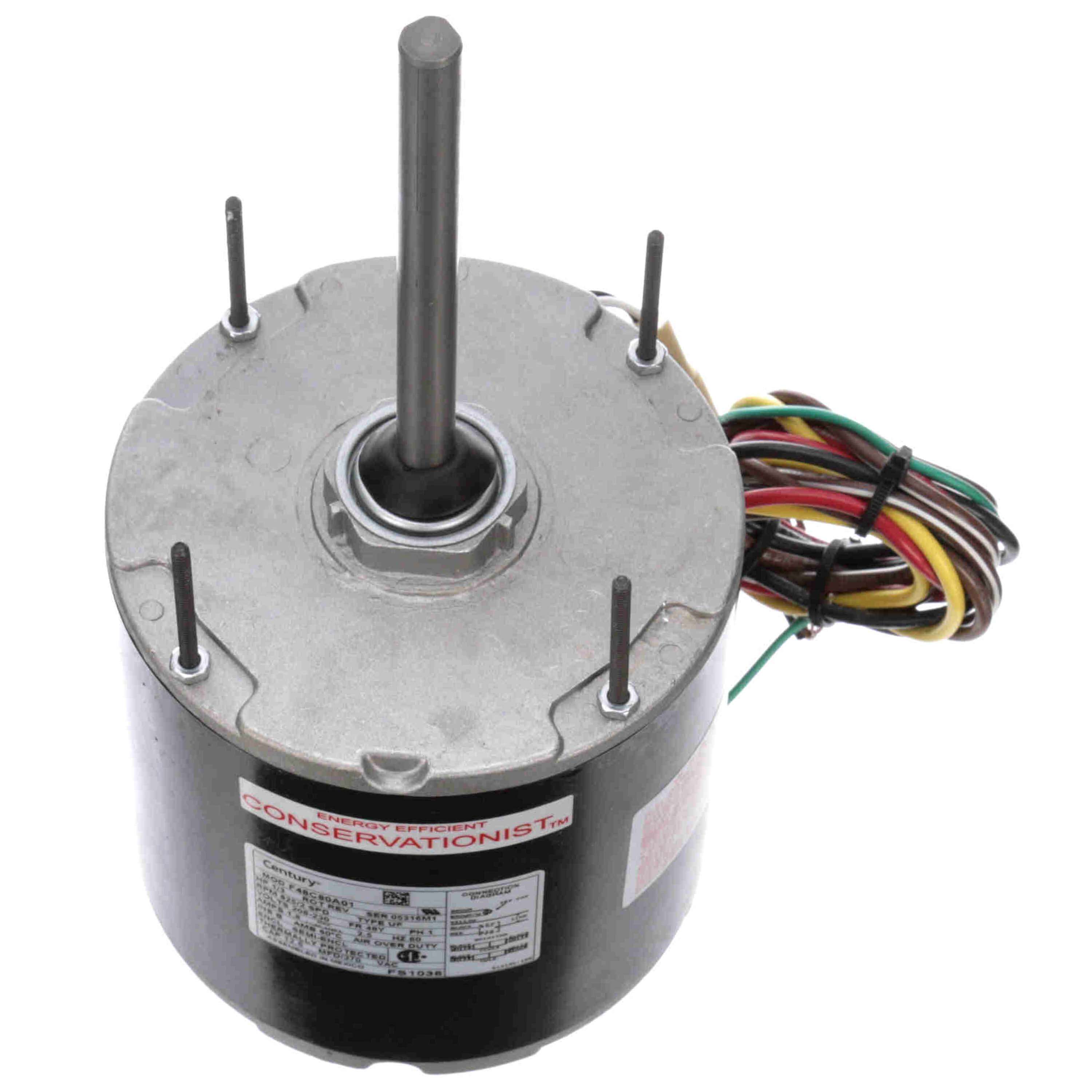

The Century FS1038 condenser motor is designed for HVAC applications with demanding requirements. Featuring a 5.6-inch frame diameter, it delivers 1/3 horsepower at 825 RPM and operates on 208-230 volts. This motor is built with a sleeve bearing for durability and reduced maintenance needs.

• 5.6-Inch Frame Diameter
• 1/3-HP
• 825-RPM

Product Highlights

This 2-speed motor includes an auto protector and reversible rotation. It's energy efficient, with a permanent split capacitor and a semi-enclosed design. The motor supports cradle base mounting with hex hubs on both ends.

Product Information

Standard Information

• Brand: Century
• MPN: FS1038

Technical Specifications

• Frame: 48Y
• Voltage: 208-230V
• Amperage: 1.8
• Bearings: Sleeve
• Rotation: Reversible
• Horse Power: 1/3
• Enclosure Type: Semi-Enclosed
• Diameter: 5-5/8 inches
• Max Ambient Temp: 140°F
• Shaft Dimension: 1/2 inch by 6 inches
• Weight: 18 lbs
• Speeds: 2
