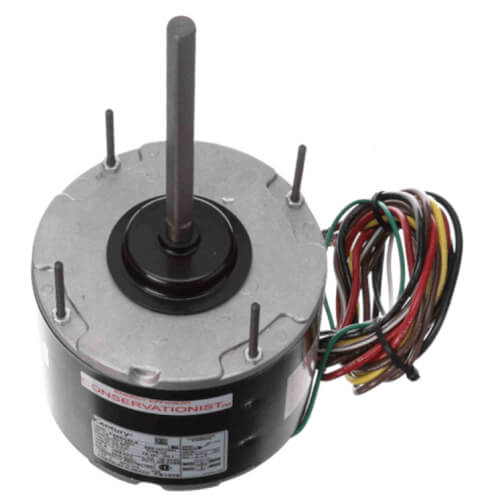

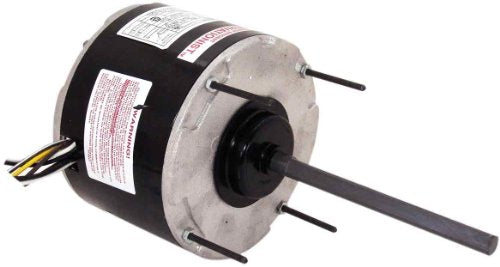

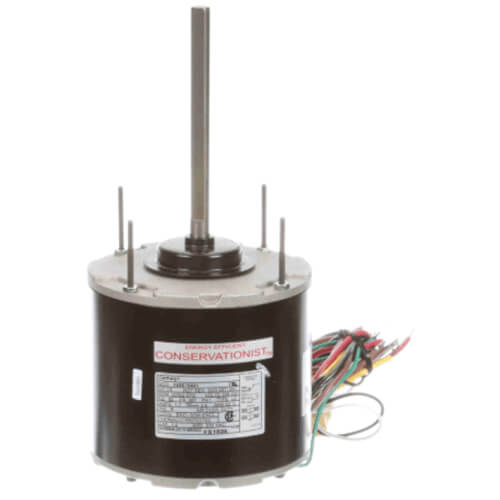

Century FS1036 Condenser 5.6-Inch Frame Diameter 1/3-HP 1075-RPM 208-230-Volt 1.7-Amp Sleeve Bearing Motor

Product Description

The Century FS1036 Condenser Motor is a reliable choice for HVAC professionals. With its 5.6-inch frame diameter, this motor offers efficient performance and durability. The FS1036 features a power rating of 1/3 HP and operates at 1075 RPM with a voltage of 208-230 volts. This motor has a sleeve bearing design for quiet operation and long-lasting use.

• 5.6-Inch Frame Diameter
• 1/3-HP
• 1075-RPM

Product Highlights

Century FS1036 is a robust motor suitable for various HVAC applications. It includes a reversible rotation feature, open drip-proof design, and an extended thru-bolt for easy installation. The motor is energy efficient and designed to operate in 60-degree Celsius ambient conditions.

Product Information

Standard Information

• Manufacturer: Century
• Brand: Century
• MPN: FS1036

Technical Specifications

• Frame: 48Y
• Voltage: 208/230V
• Amperage: 1.7
• Horse Power: 1/3
• RPM: 1075
• Bearing: Sleeve
• Hertz: 60
• Insulation Class: B
• Type: Permanent Split Capacitor
• Max Ambient Temp: 140°F
• Shaft Dimension: 1/2 by 6-7/16 inches
• Motor Length: 4-7/8 inches
