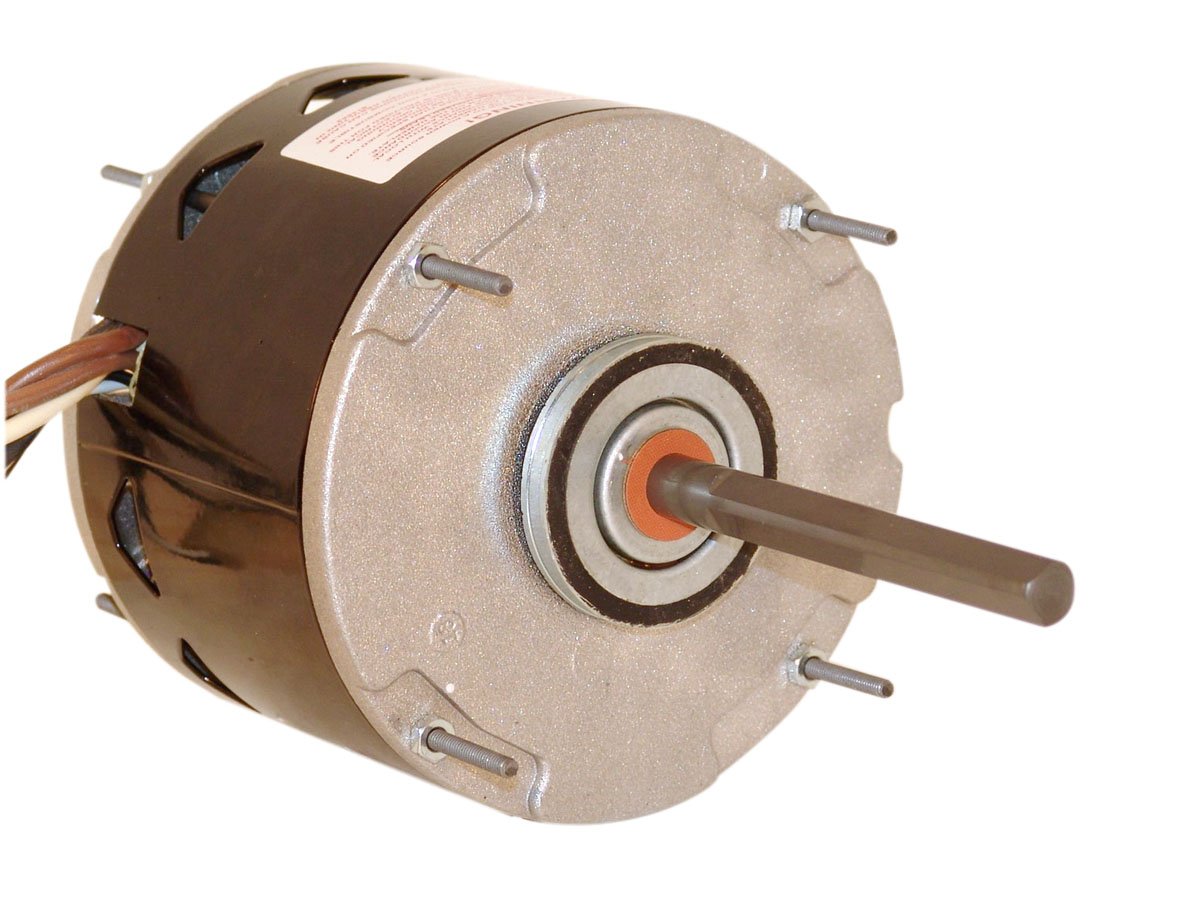

Century FS1024S Condenser Fan Motor 1/4 HP 1625 RPM

Product Description

The Century FS1024S condenser fan motor is designed for various industrial applications. It is a 1/4 horsepower motor that operates at 1625 RPM, providing reliable performance in refrigeration systems, heat pumps, and condensers.

• 1/4 HP
• 1625 RPM
• 208-230V

Product Highlights

This motor is ideal for use in demanding environments. It features automatic overload protection, reversible rotation, and a rolled steel frame for durability. The motor is also equipped with sleeve bearings and operates at both 50 and 60 hertz.

Product Information

Standard Information

• Brand: Century
• MPN: FS1024S
• UPC: 786674021236
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1/4
• RPM: 1625
• Voltage: 208-230
• Frame: 48Y
• Enclosure: Semi-Enclosed
• Rotation: Reversible
• Overload Protection: Automatic
• Bearings: Sleeve
• Diameter: 5.6 inches
• Shaft Type: Double Flat
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.900 inches
• Material: Rolled Steel
• Phase: Single
• Insulation Class: B
• Poles: 4
• Service Factor: 1
• Mounting: Resilient Ring/Extended Studs
• Amperage: 1.4
