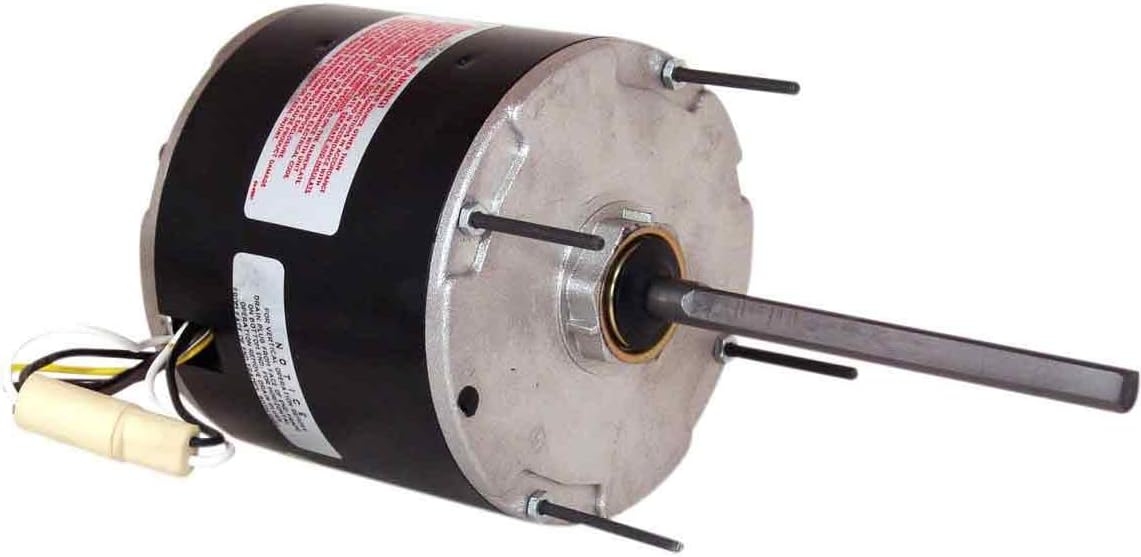

Century FH1038 Condenser, 5.6-Inch Frame Diameter, 1/3-HP, 825-RPM, 460-Volt, 0.9-Amp, Ball Bearing Motor

Product Description

The Century FH1038 condenser fan motor is designed for demanding applications in HVAC systems. This motor features a frame diameter of five and six-tenths inches. It operates with one-third horsepower at a speed of eight hundred twenty-five RPM and a voltage of four hundred sixty volts.

• Permanent split capacitor design for efficient operation.
• Ball bearing construction for durability.
• Reversible rotation for flexible installation.

Product Highlights

This motor is suitable for various applications, such as refrigeration and heat pumps. Its semi-enclosed design offers protection in outdoor environments while providing optimal airflow.

Product Information

Standard Information

• Brand: Century
• MPN: FH1038

Technical Specifications

• Horsepower: 0.33 hp
• Speed: 825 RPM
• Voltage: 460 Volts
• Amperage: 0.9 Amps
• Frame Size: 48Y
• Bearings Type: Ball / Ball
• Shaft Type: Double Flat
• Enclosure Type: Semi-Enclosed
• Overall Dimensions: 15.25 x 6.25 x 6.75 inches
