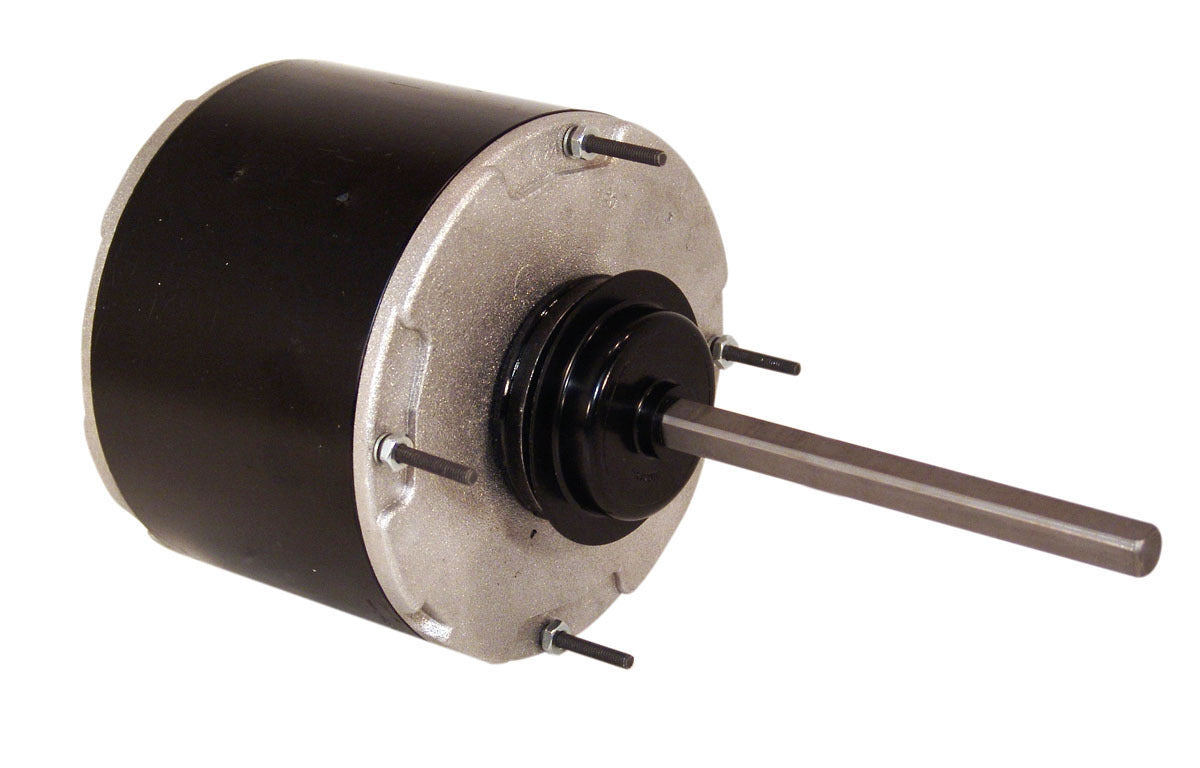

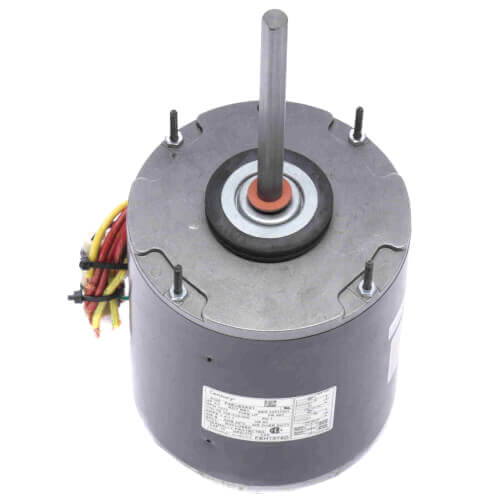

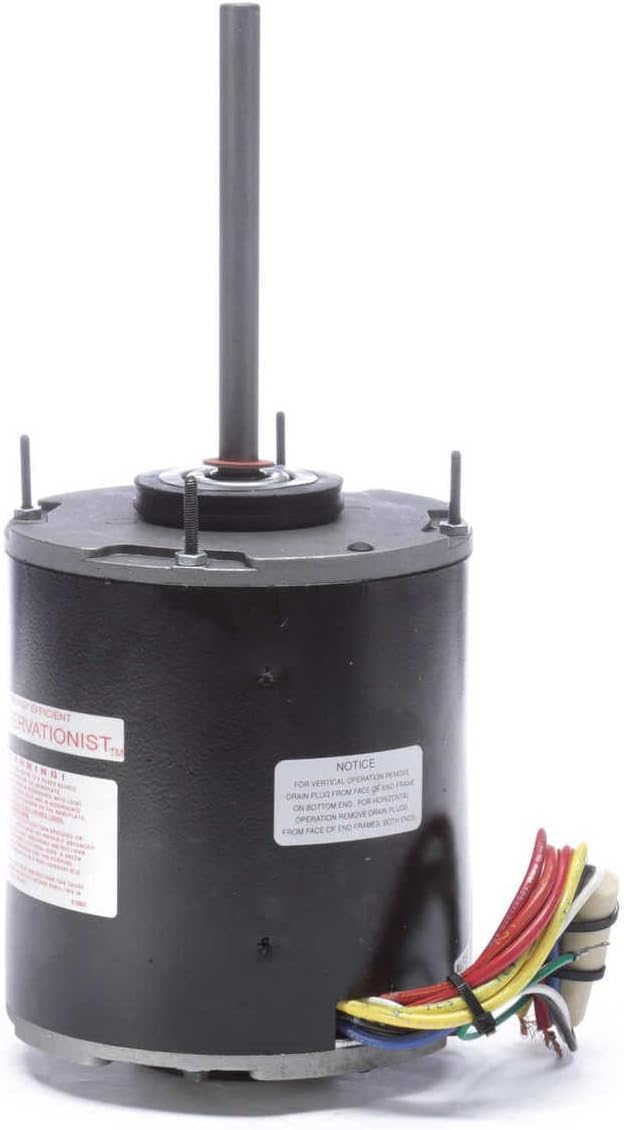

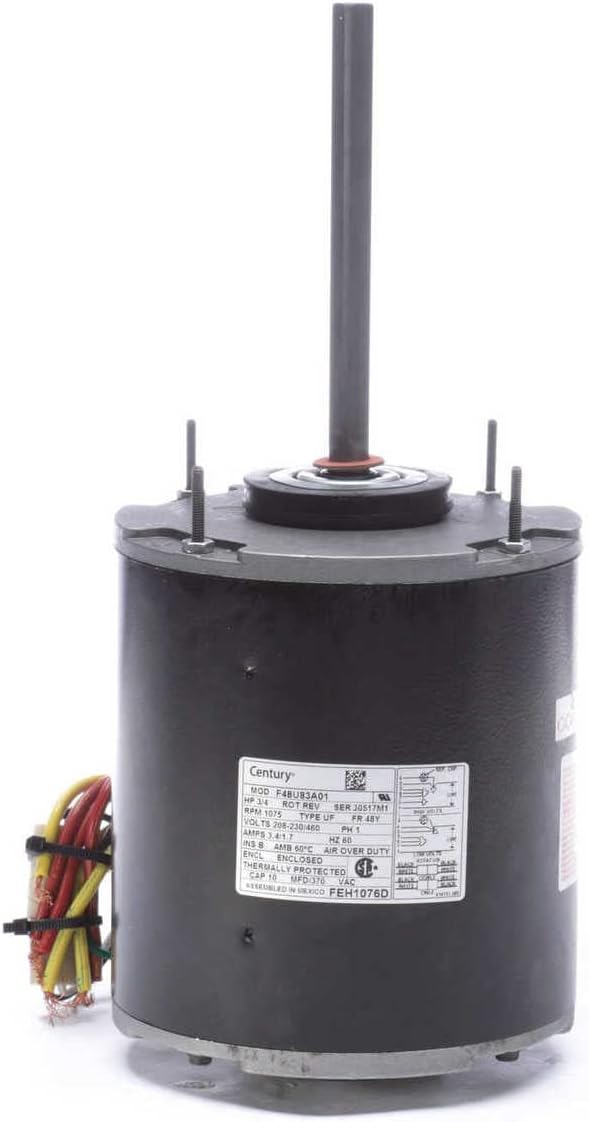

Century FEH1076D Condenser Fan Motor 3/4 HP 208-230/460 Volts 1075 RPM

Product Description

The Century FEH1076D Condenser Fan Motor is a 3/4 horsepower motor designed for HVAC applications. It operates at 1075 RPM and is suitable for 208-230/460 volt power supplies. This motor features a permanent split capacitor, automatic overload protection, and reversible rotation.

• 3/4 hp, 1075 RPM
• 208-230/460V, 1-Speed
• Automatic Overload Protection

Product Highlights

This motor is ideal for HVAC condenser fan applications. Its rugged construction ensures durability, and the motor is designed for all-angle mounting, making it versatile for different installations.

Product Information

Standard Information

• Brand: Century
• Model: FEH1076D
• Horsepower: 3/4 HP
• RPM: 1075
• Voltage: 208-230/460V
• Amperage: 3.4/1.7A
• Insulation Class: B
• Enclosure: Totally Enclosed Air Over
• Frame Size: 48Y

Technical Specifications

• Motor Orientation: Any
• Mounting Type: Resilient Ring
• Overload Protection: Automatic
• Diameter: 5-5/8 inches
• Lead Length: 6 inches
• Phase: Single
• Bearings Type: Ball/Ball
• Shaft Diameter: 1/2 inch
