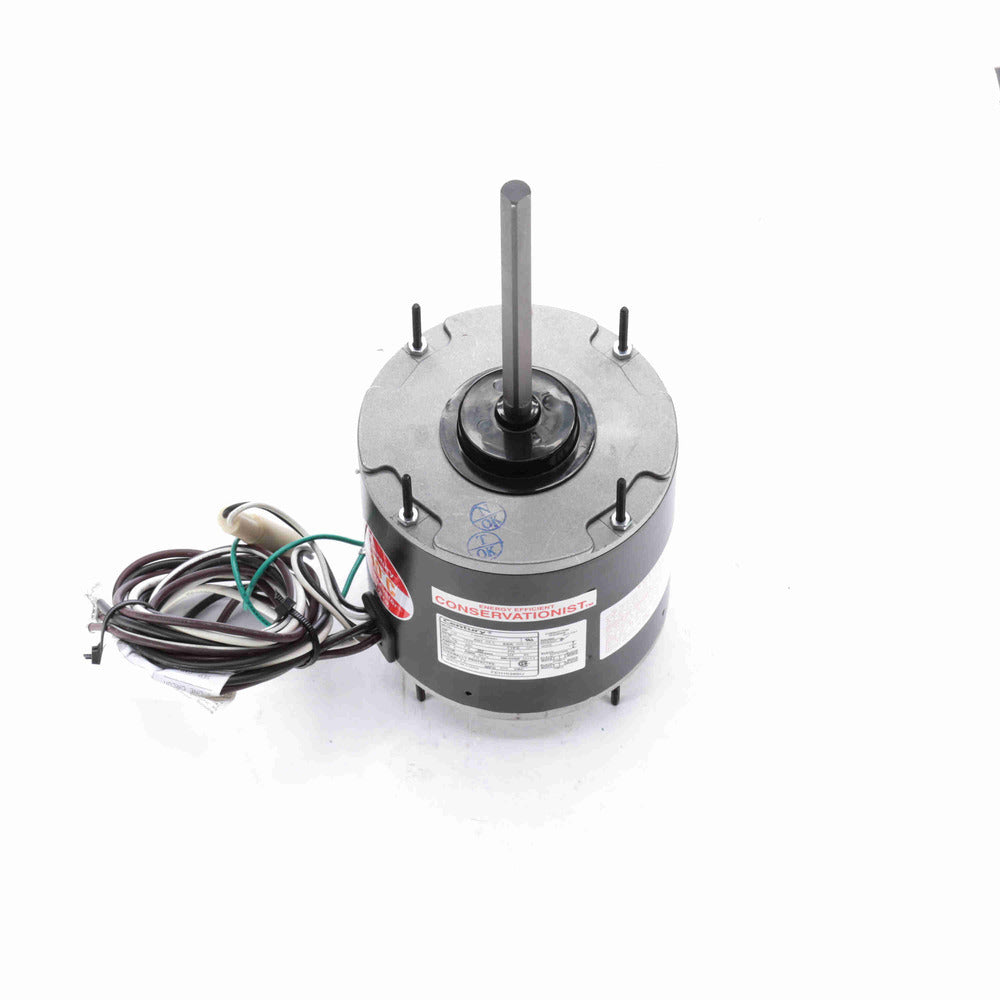

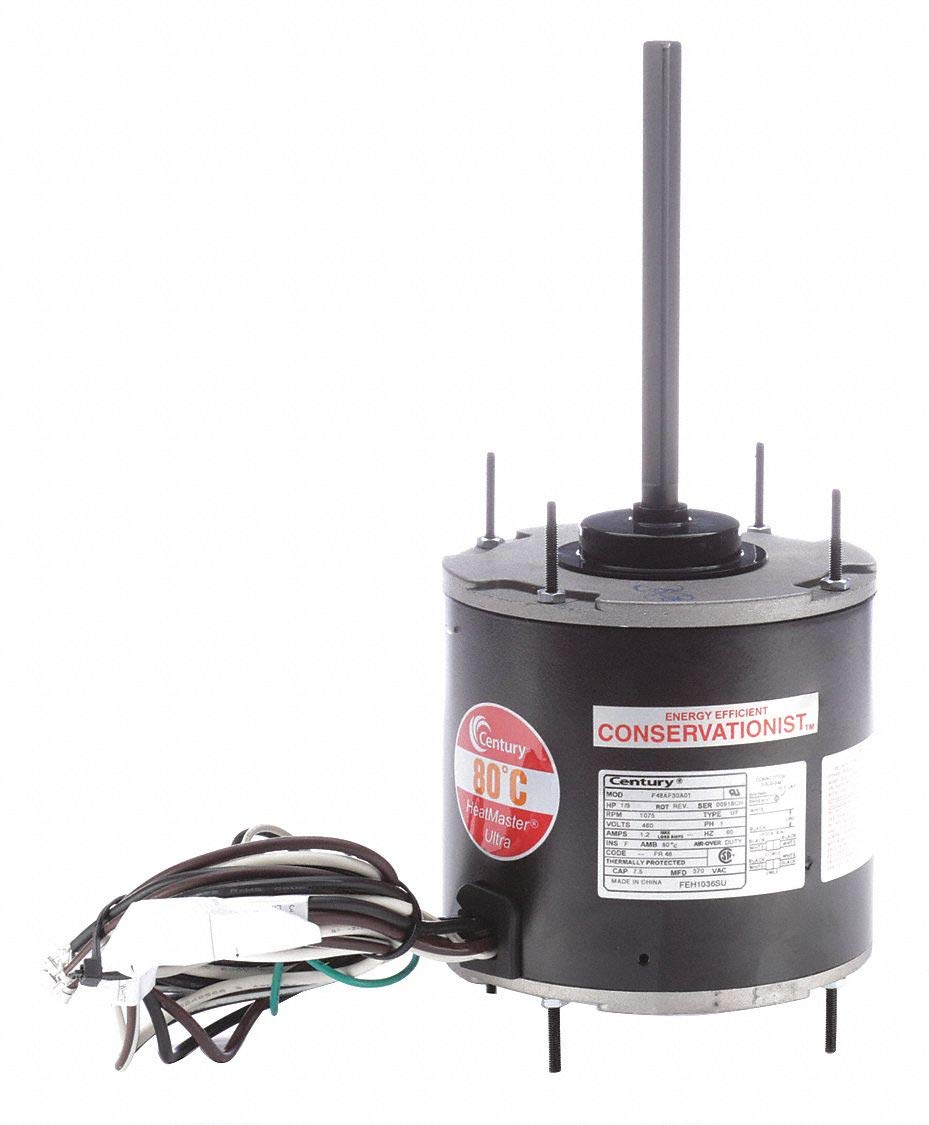

Century FEH1036SU Condenser Fan Motor 460V 1/3 HP 1075 RPM

Product Description

The Century FEH1036SU Condenser Fan Motor is designed for high-efficiency performance in HVAC systems. Featuring a 1/3 HP motor and operating at 1075 RPM, this motor ensures reliable operation under demanding conditions. Ideal for use in condenser fans, it operates on a 460V power supply.

• 1/3 HP, 1075 RPM
• 460V Single Phase Motor
• Totally Enclosed Air-Over (TEAO) Design

Product Highlights

This Century condenser fan motor provides high-efficiency operation with an automatic overload protector. Perfectly suited for various HVAC applications, it ensures longevity and consistent performance.

Product Information

Standard Information

• Brand: Century
• Model: FEH1036SU
• Category: Condenser Fan Motor
• UPC: 786674068866

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/3 HP
• Rated Power: 0.25 KW
• RPM: 1075
• Frame: 48
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 460V
• Rotation: Reversible
• Overload Protection: Automatic
• Material: Rolled Steel
• Bearings: Double Sealed Ball Bearings
• Mounting: Extended Studs
• Amperage: 1.2
• Shaft Type: Double Flat
• Shaft Extension: 6.5 inches
• Ambient Temperature: 80 degrees Celsius
• Insulation Class: F
• Poles: 6
• Service Factor: 1
• Duty: Air Over
• Shaft Diameter: 0.5 inches
• Certifications: UL Recognized, CSA Certified
