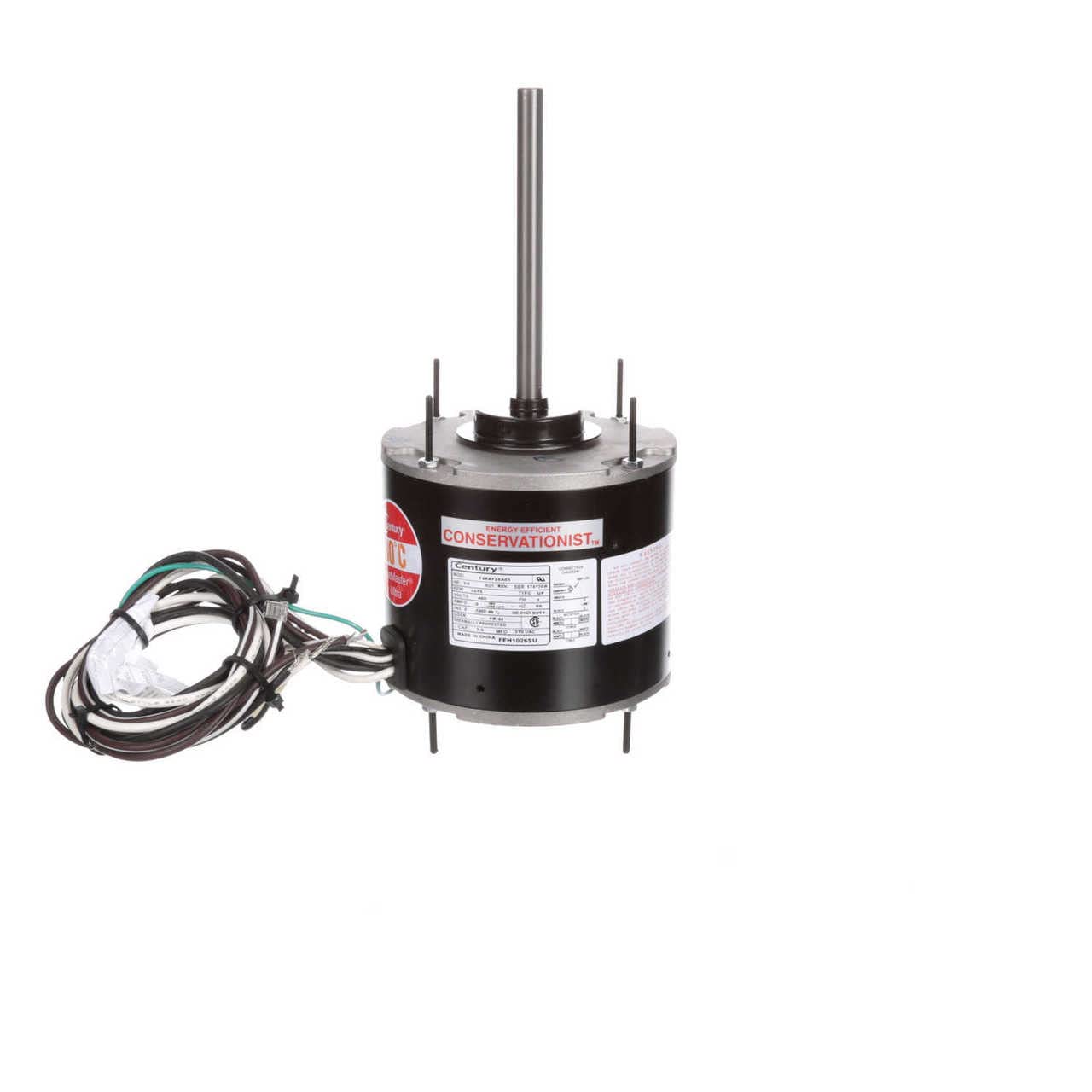

Century FEH1026SU Condenser Fan Motor 1/4 HP 1075 RPM Single Phase

Product Description

The Century FEH1026SU Condenser Fan Motor is a reliable choice for HVAC systems. This single-phase motor with 1/4 HP can deliver up to 1075 RPM, making it an efficient component in various applications.

• 1/4 HP for adequate power
• 1075 RPM for high performance
• Single-phase operation

Product Highlights

This Century motor features a permanent split capacitor design and comes with automatic overload protection. The motor operates at 460V and includes double flat shafts extending 6.500 inches. The 48-frame motor is enclosed in a totally enclosed air-over design, ensuring longevity and durability.

Product Information

Standard Information

• Brand: Century
• MPN: FEH1026SU
• Voltage: 460V
• Amperage: 0.9

Technical Specifications

• Horsepower: 1/4 HP
• RPM: 1075
• Phase: Single
• Frame: 48
• Diameter: 5.6 inches
• Enclosure: Totally Enclosed Air Over (TEAO)
• Rotation: Reversible
• Insulation Class: F
• Mounting Type: Extended Studs
• Shaft Type: Double Flat
• Shaft Extension: 6.500 inches
• Weight: 14 pounds
• Max Ambient Temperature: 80 degrees Celsius
• Bearings: Double Sealed Ball
