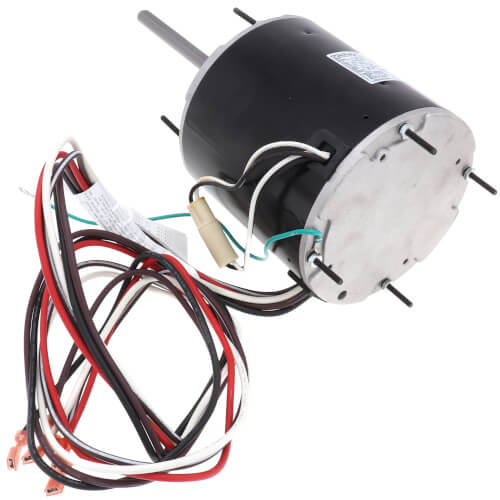

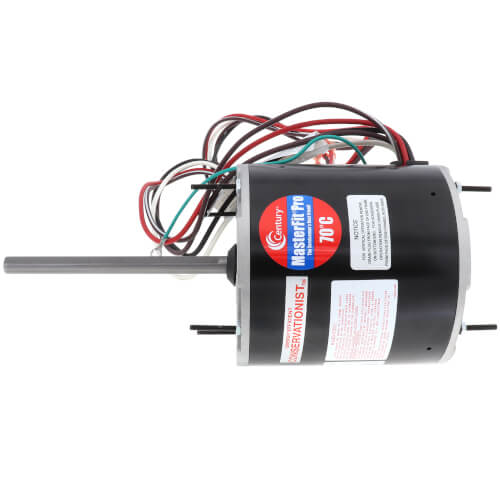

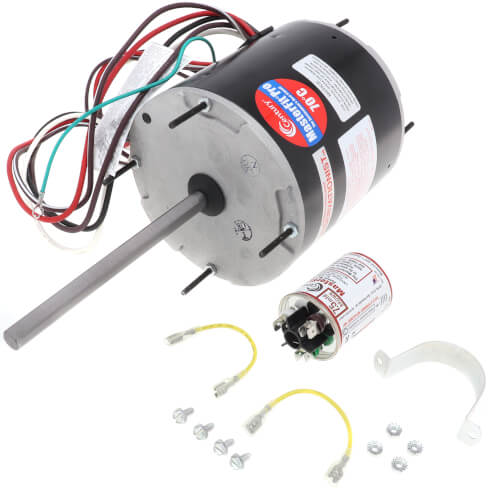

Century FE6003F Condenser Fan Motor 1/2 HP 825 RPM Reversible 208-230V

Product Description

The Century FE6003F Condenser Fan Motor is a practical and reliable motor designed for HVAC systems. With a horsepower of 1/2 HP and an RPM of 825, it offers steady performance. This motor operates at 208-230V and is reversible, providing flexibility for different applications.

• 1/2 HP
• 825 RPM
• Reversible rotation

Product Highlights

Ideal for condenser fan motor applications in HVAC systems. Compatible with standard voltage and reversible rotation for versatile setup.

Product Information

Standard Information

• Brand: Century
• MPN: FE6003F

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/2
• Speed: 825 RPM
• Frame: 48
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 208-230V
• Rotation: Reversible
• Overload Protection: Automatic
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: Extended Studs
• Amperage: 2.4, 1.4
• Shaft Type: Double Flat
• Shaft Extension: 6.5 inches
• Insulation Class: F
• Poles: 8
• Service Factor: 1
• Shaft Diameter: 0.5 inches
• Ambient Temperature: 70 degrees C
