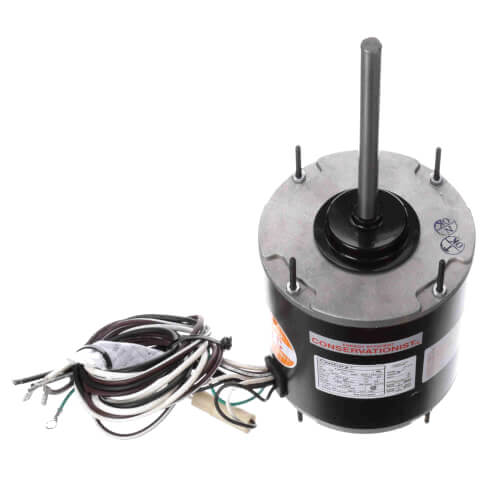

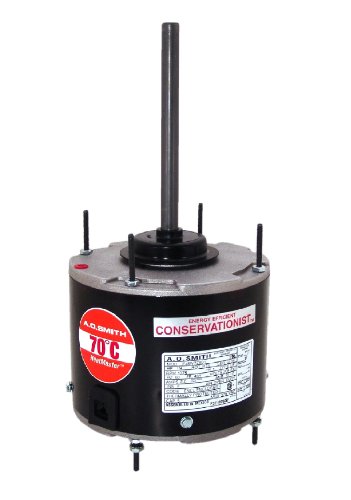

Century FE1076SF Condenser Fan Motor 3/4 HP 208-230V 1075 RPM

Product Description

The Century FE1076SF condenser fan motor is designed for various applications, including air conditioning and refrigeration systems. This motor operates on 208-230 volts and provides a power output of three-fourths HP at a speed of 1075 RPM. It features a single-phase power supply and can be mounted at any angle.

• Energy-efficient with permanent split capacitor design.
• Durable with a totally enclosed and robust frame for protection against dust and moisture.
• Lightweight at eighteen pounds, making installation easier.

Product Highlights

This motor is reliable for HVAC applications and is built to operate in various environmental conditions.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• Model Number: FE1076SF

Technical Specifications

• Type: Permanent Split Capacitor
• HP: 3/4 HP
• Voltage: 208-230V
• Amperage: 5.1A
• RPM: 1075
• Frame Size: 48
• Diameter: 5.625 inches
• Phase: Single
