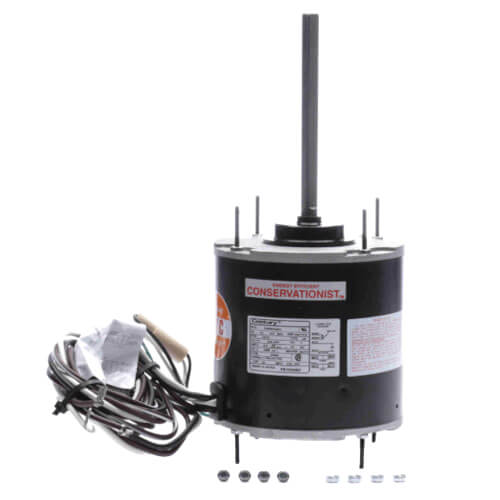

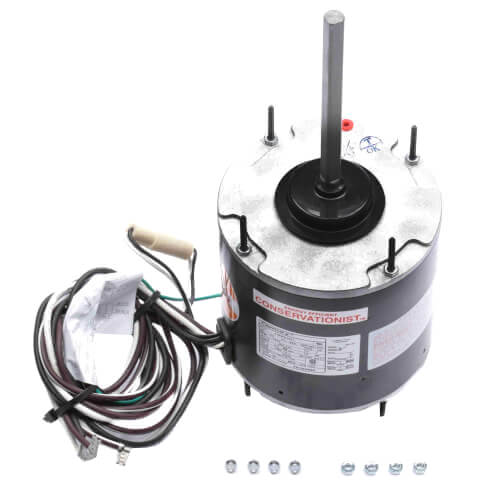

Regal Rexnord - Century Motors FE1056SF 1/2HP 208-230V 1075RPM 1Sp Mtr

Product Description

The Regal Rexnord - Century Motors FE1056SF is a durable electric motor designed for residential and industrial applications. With a power rating of one-half horsepower and operating at 208-230 volts, this motor provides reliable performance for a variety of uses.

• Type: Permanent Split Capacitor (PSC)
• Rated for 1/2 HP at 1075 RPM
• Suitable for condenser and heat pump applications

Product Highlights

This motor features a totally enclosed design, ensuring protection against dust and moisture. It is built with high-quality materials to endure demanding conditions. The single-phase rotation allows for flexibility in installation.

Product Information

Standard Information

• Manufacturer: Regal Rexnord - Century Motors
• MPN: FE1056SF

Technical Specifications

• Voltage: 208-230V
• Amperage: 4.0A
• RPM Range: 901 to 1200
• Frame Size: 48
• Diameter: 5-5/8 inches
• Mounting Type: All Angle Stud
• Enclosure Type: Totally Enclosed
• Rotation: Reversible
