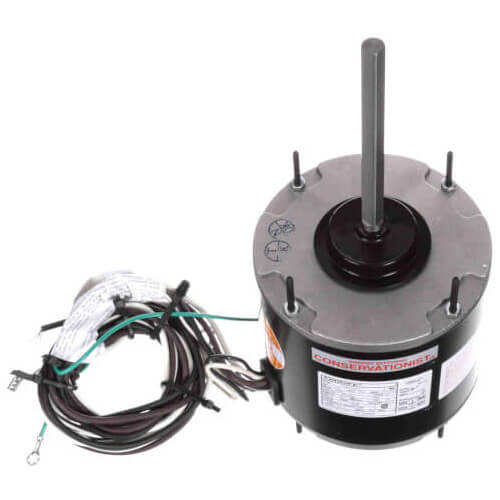

Regal Rexnord - Century Motors FE1036SF 1/3hp 1075rpm 230v 1spd 48fr 2.8amp

Product Description

The Regal Rexnord - Century Motors FE1036SF is a single-phase permanent split capacitor motor designed for various HVAC applications. This motor operates efficiently at one-third horsepower and a rotational speed of 1075 RPM, making it suitable for condensers and refrigeration units. Its robust construction ensures longevity and reliability in demanding environments.

• 1/3 horsepower with a voltage range of 208-230V.
• Designed for all-angle mounting with a reversible rotation.
• Features a totally enclosed design with ball bearings for smooth operation.

Product Highlights

The motor is built for performance in residential and commercial settings, providing dependable power for fans, pumps, and compressors. It also conforms to industry standards for electrical safety and efficiency.

Product Information

Standard Information

• Type: Permanent Split Capacitor
• Application: Condenser, Heat Pump, Refrigeration

Technical Specifications

• Horsepower: 1/3 hp
• Voltage: 208-230V
• Amperage: 2.8A
• RPM: 1075
• Frame Size: 48
• Diameter: 5-5/8 inches
• Rotation: Reversible
• Mounting: All angle stud
