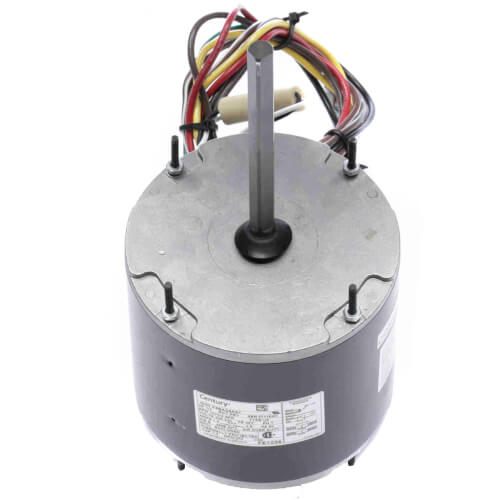

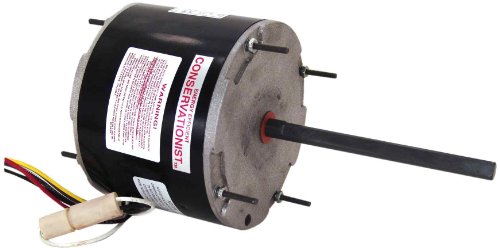

Century FE1036 Condenser Fan Motor 1/3 HP 1075 RPM 208-230V

Product Description

The Century FE1036 Condenser Fan Motor offers a reliable solution for HVAC systems. This 1/3 HP motor operates at 1075 RPM and is designed to run on 208-230 volts. It incorporates ball bearings for smooth operation and durability.

• 5.6-inch frame diameter
• 1/3 HP
• 1075 RPM

Product Highlights

Ideal for various industrial applications, including HVAC systems, conveyor systems, and material handling equipment.

Product Information

Standard Information

• Brand: Century
• MPN: FE1036

Technical Specifications

• Frame Diameter: 5.6 inches
• Horsepower: 1/3 HP
• Speed: 1075 RPM
• Voltage: 208-230V
• Amperage: 1.8A
• Type: Permanent Split Capacitor
• Bearings: Ball
• Enclosure: Totally Enclosed
• Rotation: Reversible
• Phase: Single
• Insulation Class: B
• Mounting: Extended Studs
• Ambient Temperature: 60 degrees Celsius
• Duty: Air Over
• Speeds: 2
• Material: Rolled Steel
• Shaft Diameter: 0.5 inches
• Shaft Extension: 6 inches
