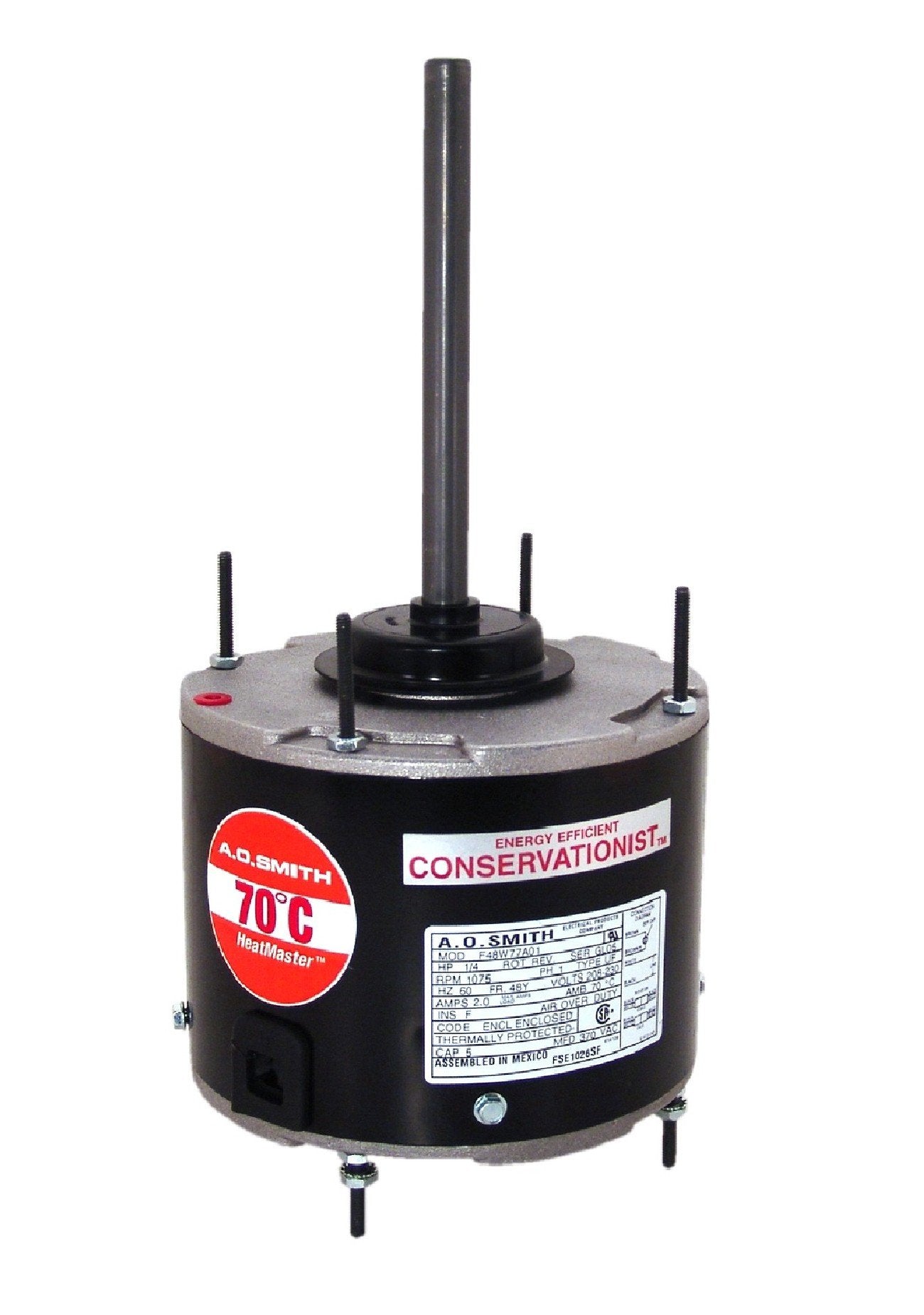

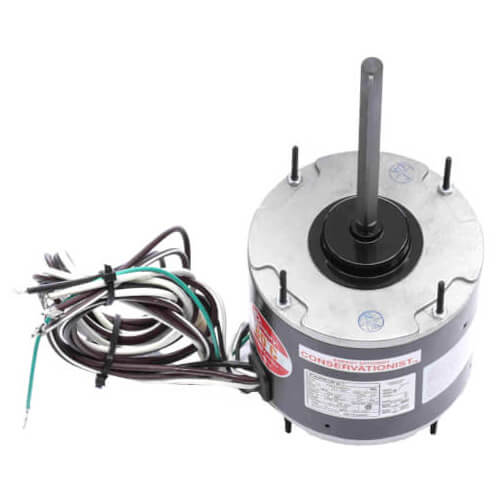

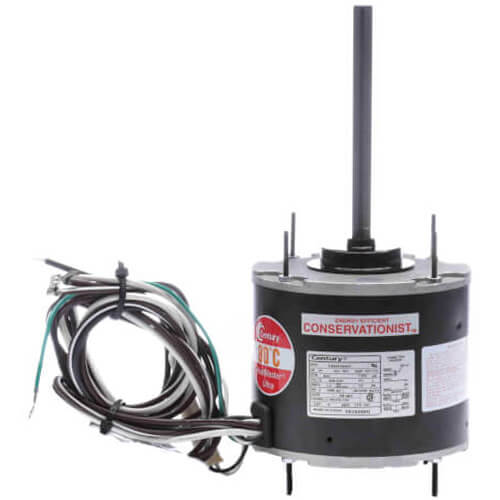

Century FE1028SF Condenser Fan Motor 1/4 HP 825 RPM 208-230V

Product Description

The Century FE1028SF Condenser Fan Motor is designed for efficient performance in HVAC systems. Featuring robust construction and reliable power output, this motor helps ensure that your condenser operates effectively. Compatible with a variety of equipment, the FE1028SF is built to meet the demands of various industrial and residential applications.

• 1/4 HP
• 825 RPM
• 208-230V

Product Highlights

Ideal for condensers, heat pumps, and refrigeration systems, this motor supports a range of temperatures and offers auto overload protection. It is manufactured with a 48-frame size for easy integration into your existing equipment.

Product Information

Standard Information

• Brand: Century
• Model: FE1028SF

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 208-230V
• RPM: 825
• Phase: Single
• Frame: 48
• Amperage: 1.5A
• Enclosure: Totally Enclosed Air-Over (TEAO)
• Bearings: Ball
• Shaft Diameter: 1/2 inch
• Shaft Length: 6.5 inches
• Weight: 15 pounds
• Insulation Class: F
• Max Ambient Temperature: 158°F
• Rotation: Reversible
• Mounting Type: Extended Studs
• Frequency: 60 Hz
• Service Factor: 1
• Protection: Auto Overload
