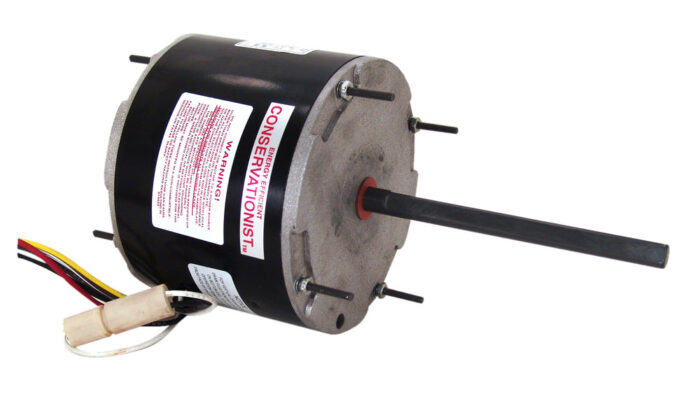

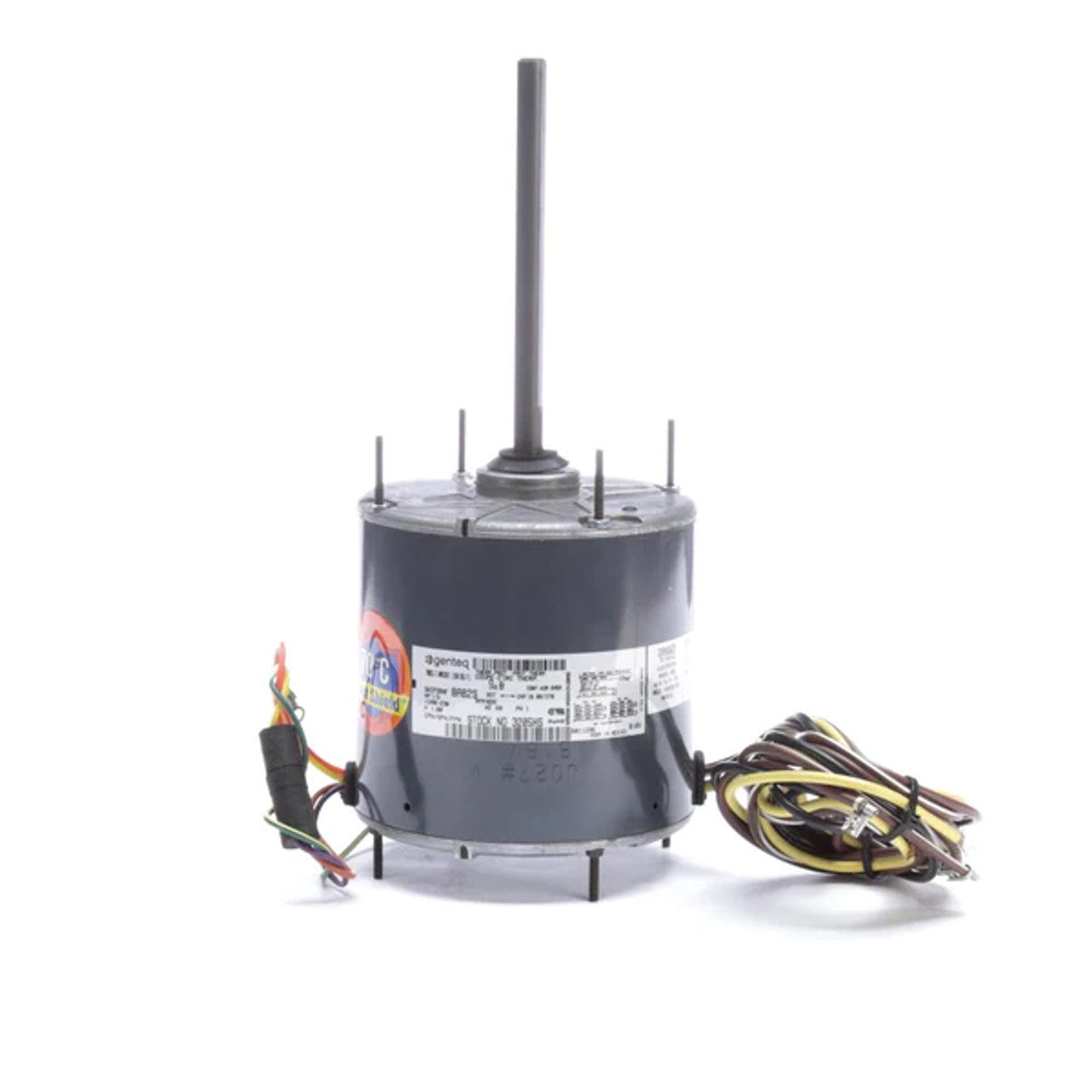

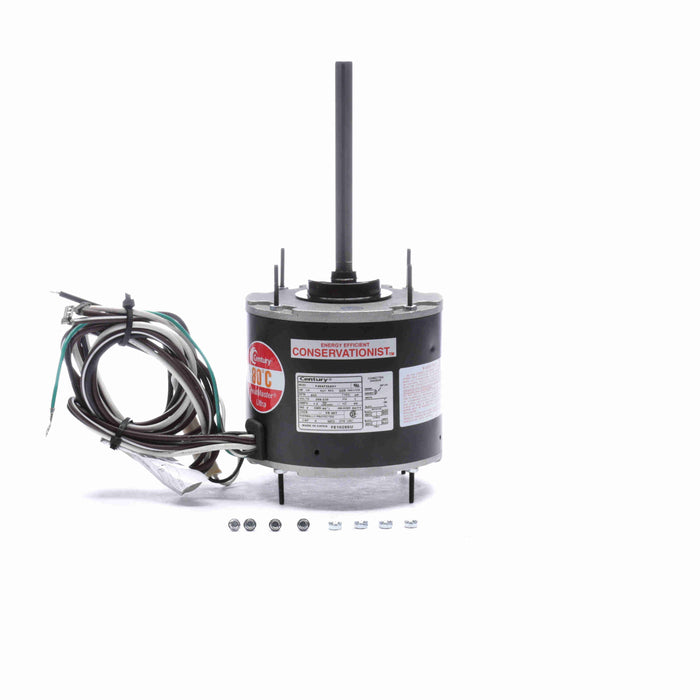

CENTURY MOTORS FE1028S Condenser Fan Motor 1/4 HP

Product Description

The CENTURY MOTORS FE1028S is a reliable condenser fan motor designed for HVAC applications. This motor operates efficiently on 208 to 230 volts, making it suitable for various installations. It features a reversible rotation, allowing flexibility during setup. The motor comes with a 48 frame size and a TEAO (Totally Enclosed Air Over) enclosure which ensures durability in challenging environments.

• Horsepower: 1/4 HP
• Speed: 825 RPM, single speed
• Automatic thermal protection for enhanced safety

Product Highlights

This motor is excellent for continuous duty and features ball bearings which provide smooth operation. It includes a PSC (Permanent Split Capacitor) design, suitable for many HVAC applications. The automatic thermal protection feature ensures motor safety, preventing overheating during operation.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: FE1028S

Technical Specifications

• Horsepower: 1/4 HP
• Speed: 825 RPM
• Input Voltage: 208-230 V
• Input Current: 1.5 Amps
• Frequency: 60 Hz
• Frame Size: 48
• Motor Type: PSC
• Enclosure Type: TEAO
• Rotation: Reversible
• Number of Speeds: 1
• Shaft Diameter: 1/2 inch
• Shaft Length: 6.5 inches
• Leads Length: 48 inches
• Phase: Single
• Service Factor: 1.00
• Bearings: Ball
• Thermal Protection: Automatic
• Maximum Ambient Temperature: 70°C
• Insulation Class: F
• Duty Cycle: Continuous
• Mounting Type: Band/Ring/Stud
• Motor Diameter: 5.625 inches
• Capacitor: 5MFD @ 370VAC Required
