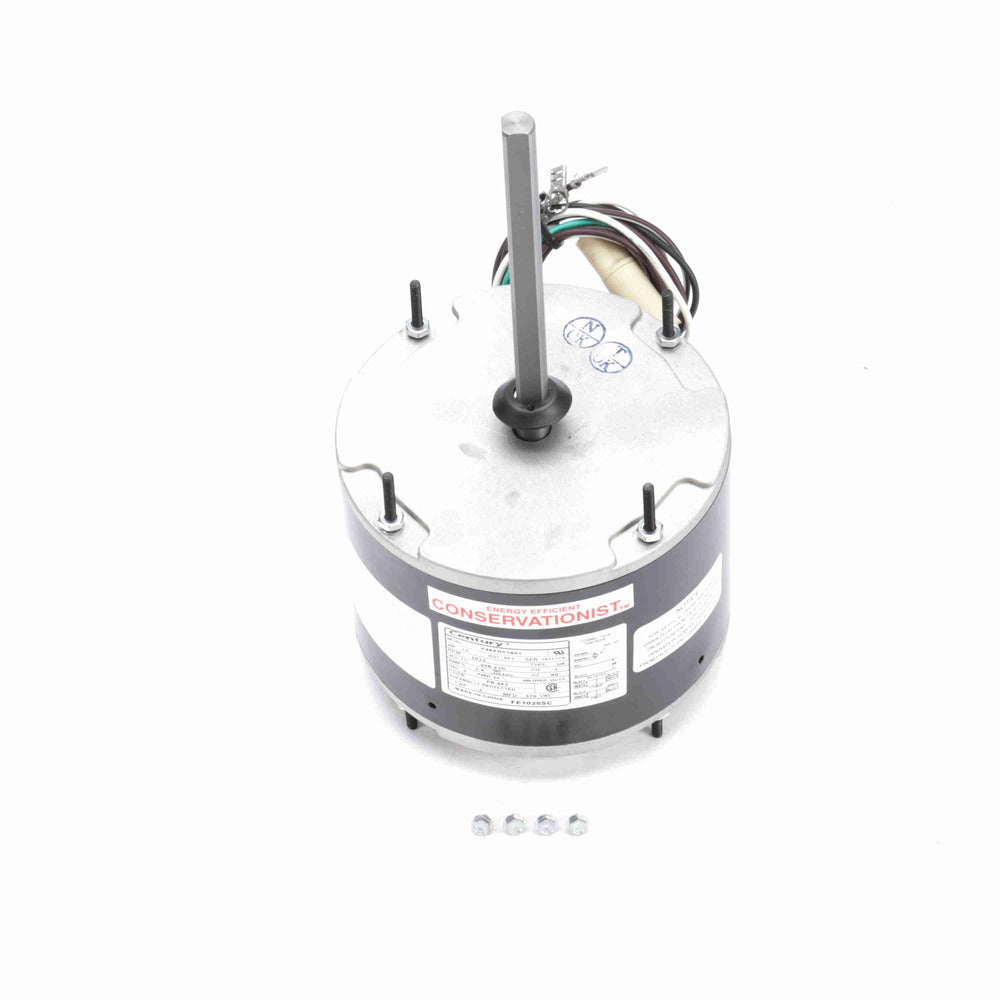

Century FE1026SC Condenser Fan Motor 1/4 HP 208-230V

Product Description

The Century FE1026SC is a condenser fan motor designed for HVAC systems, operating at a power of one-fourth horsepower. This permanent split capacitor motor runs on a voltage range of 208 to 230 volts and operates at a speed of 1075 RPM. It features an enclosure type of totally enclosed air-over (TEAO) with a 48Y frame size, making it suitable for various outdoor applications.

• Energy-efficient design
• Reversible rotation
• Automatic overload protection

Product Highlights

This motor is built for durability and reliability in outdoor environments, with features including a ball bearing type for smooth operation and extended stud mounting for easy installation.

Product Information

Standard Information

• Material: Rolled Steel
• Phase: Single
• Amperage: 1.75 A

Technical Specifications

• Motor Type: Permanent Split Capacitor
• Overload Protection: Automatic
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.000 inches
• Motor Rotation: Reversible
• Frame Size: 48Y
• Motor Efficiency: Air Over
