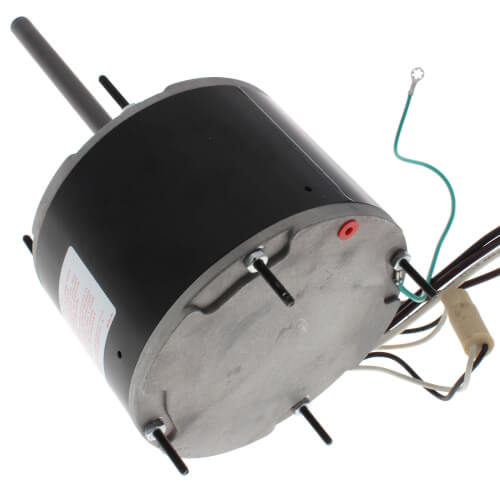

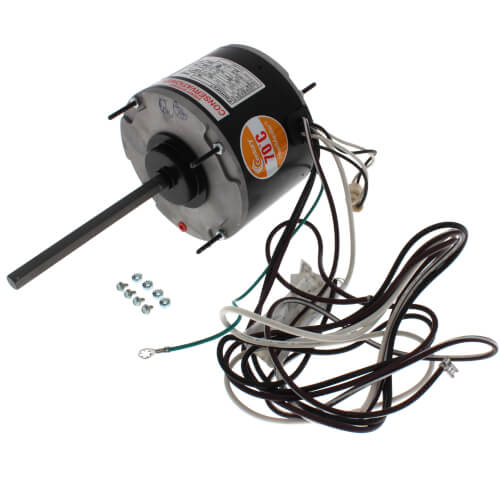

Century FE1016SF Condenser Fan Motor 1/6 HP 1075 RPM 208-230V

Product Description

The Century FE1016SF is a condenser fan motor designed for HVAC applications. This motor operates at 1/6 horsepower, 1075 RPM, and supports 208-230 volts, making it ideal for use in condensers, heat pumps, and refrigeration units.

• 1/6 HP motor for efficient operation
• 1075 RPM for optimal performance
• 208-230 volt compatibility

Product Highlights

Designed to support a variety of HVAC applications, the Century FE1016SF condenser fan motor features reversible rotation and an auto overload protector. The motor's ball bearings and totally enclosed air-over (TEAO) design enhance durability and efficiency.

Product Information

Standard Information

• Brand: Century
• MPN: FE1016SF
• Voltage: 208-230V
• Horsepower: 1/6 HP

Technical Specifications

• RPM: 1075
• Frame: 48
• Bearings: Ball
• Enclosure: Totally Enclosed Air-Over (TEAO)
• Rotation: Reversible
• Amperage: 1.4
• Ambient Temperature: 70 Degrees C
• Insulation Class: F
