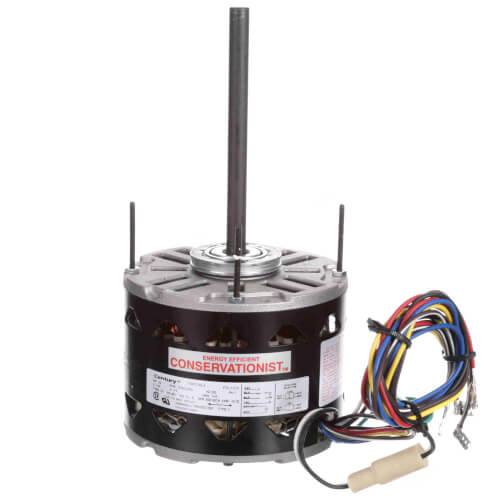

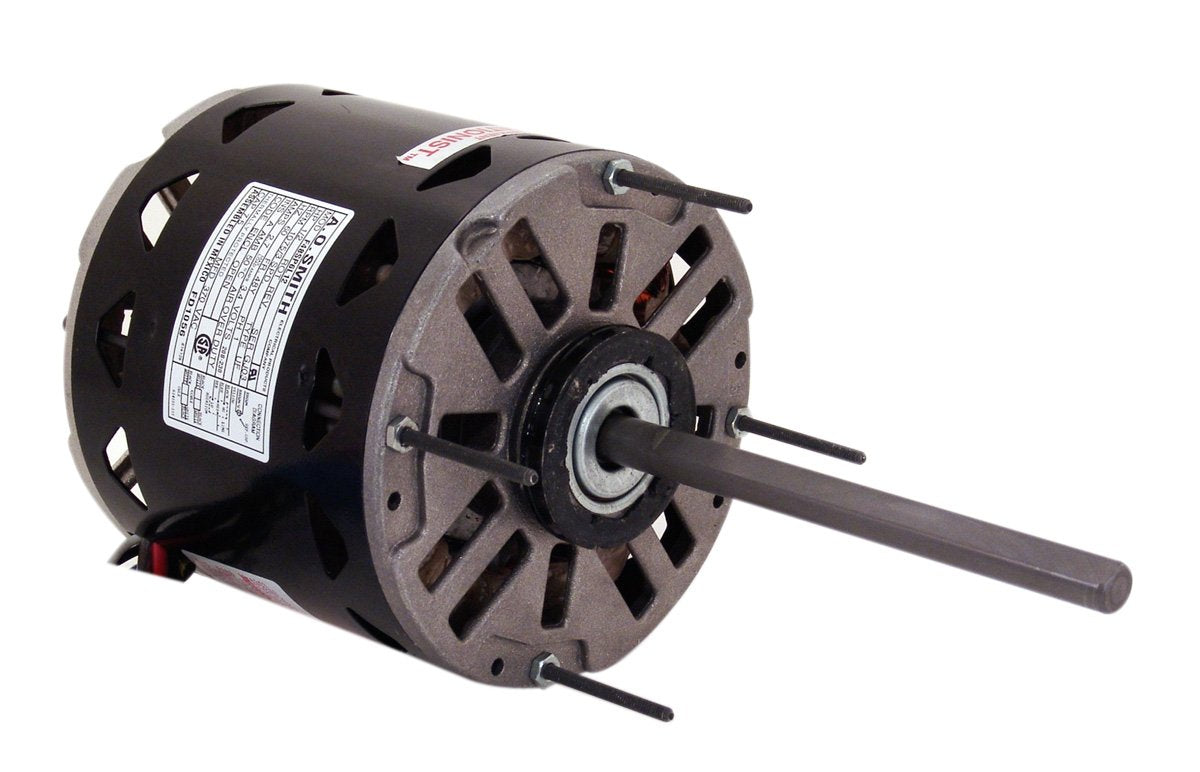

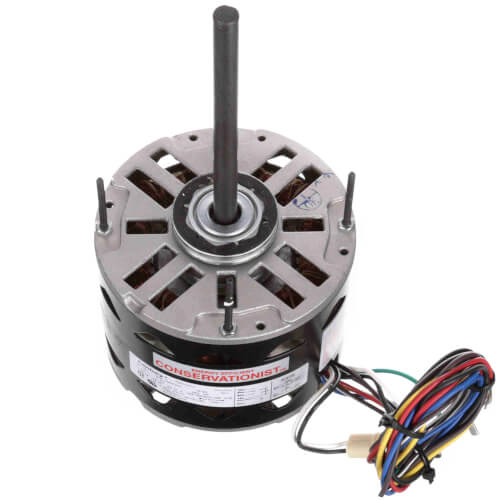

Century FDL1026 Fan and Blower Motor 1/4HP 115V 1075RPM 3-Speed

Product Description

The Century FDL1026 is a permanent split capacitor (PSC) fan and blower motor with a power rating of one fourth horsepower. This motor operates on 115 volts and offers a three-speed setting, enabling it to adapt to various airflow requirements. The motor has a diameter of five and five eighths inches and is enclosed in an open air over design, allowing for efficient cooling during operation.

• Power: 1/4 HP
• Voltage: 115V
• Speed: 3 speeds, RPM range 901 to 1200

Product Highlights

Designed for indoor use, the FDL1026 is ideal for residential HVAC applications. Its reversible rotation feature allows for flexible installation options based on airflow needs.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• Voltage: 115V

Technical Specifications

• MPN: FDL1026
• Diameter: 5-5/8 inches
• Frame: 48
• Amperage: 3.2-4.1A
• Phase: Single
• Speed: 3
• Weight: 11 lbs
• Enclosure Type: Open Air Over
