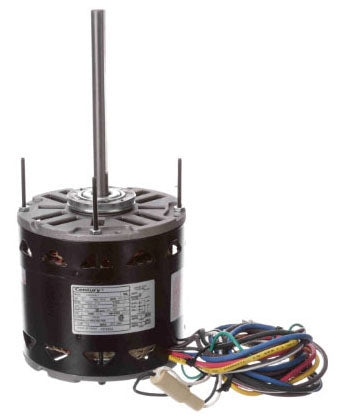

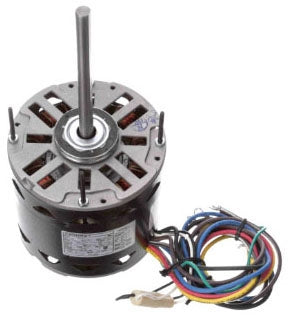

Regal Rexnord - Century Motors FD1054 1/2 HP 208-230V 1625 RPM 3-Speed

Product Description

The Regal Rexnord - Century Motors FD1054 is a reliable fan and blower motor with a power rating of 1/2 HP. It operates at a voltage of 208 to 230 VAC and functions effectively within a frequency of 60 Hz. The motor provides three speeds and a speed rating of 1625 RPM, making it suitable for a variety of HVAC applications.

• 1/2 HP power rating
• Reversible operation
• Open air-over design

Product Highlights

This motor is designed for durability and efficiency, featuring a rolled steel frame and class A insulation. It includes a resilient mounting ring with extended studs for easy installation.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: FD1054

Technical Specifications

• Enclosure Type: Open Air-Over
• Motor FLA: 2.8 Amp
• NEMA Frame Size: 48Y
• Number of Poles: 4
• Weight: 17 Pound
• Frame Material: Rolled Steel
• Ambient Temperature Rating: 40 Deg C
• Mounting: Resilient Ring, Extended Stud
