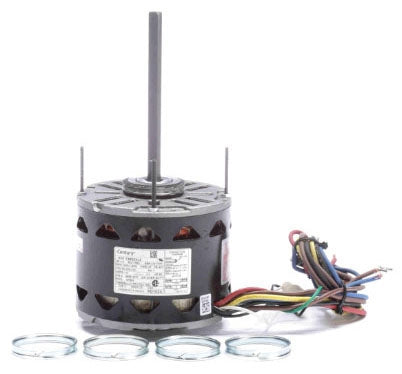

Century FD1024 1/4 HP Blower Motor 208-230V 1625 RPM

Product Description

The Century FD1024 is a 1/4 HP blower motor that operates at 208-230 volts. This motor is designed for use in HVAC systems, ensuring efficient air movement.

• 3-speed operation
• Reversible rotation
• Automatic thermal protection

Product Highlights

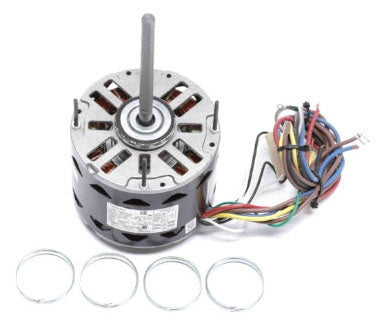

This blower motor features a resilient ring mount and is constructed from rolled steel. It delivers 1625 RPM and includes a permanent split capacitor with open air-over construction.

Product Information

Standard Information

• Brand: Century
• MPN: FD1024
• Application: Direct Drive Fan and Indoor Blower
• Approval: UL, CSA

Technical Specifications

• Power Rating: 1/4 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.8 Amp (Rated)/3.2 Amp (Maximum)
• Number of Speeds: 3
• Speed Rating: 1625 RPM
• Reversible: Yes
• Service Factor: 1
• NEMA Frame Size: 48Y
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting: Resilient Ring
• Weight: 12 Pounds
• Type: Permanent Split Capacitor
• Shaft Size: 0.5 Inch Diameter x 6.4 Inch Length (Extension)
• Starting Method: Induction Run
• Ambient Temperature Rating: 40 Degrees C
• Includes: 26 Inch Lead, Reversing Plug
