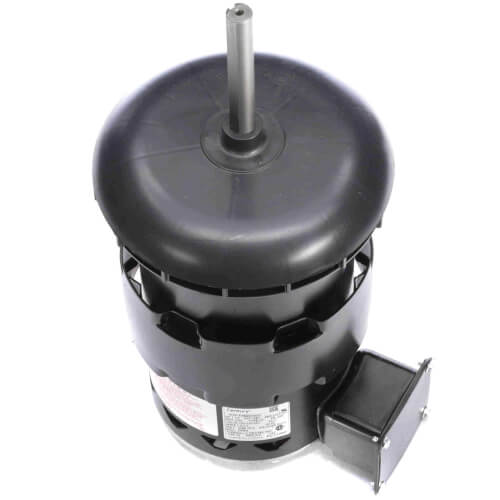

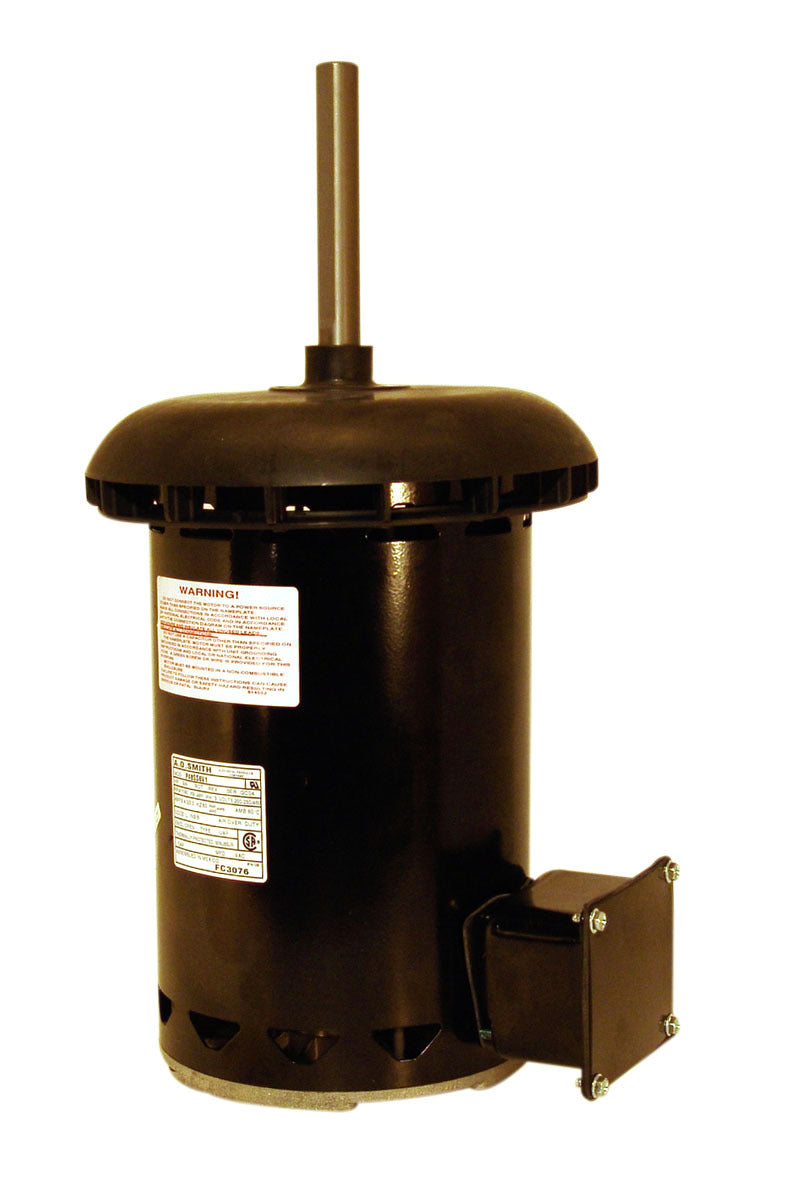

Century FC1156F Fan Canopy 1-1/2 HP 5.6-Inch Frame Diameter 200-230 460-Volt

Product Description

The Century FC1156F is a condenser fan motor designed for HVAC applications. This model features a frame diameter of five point six inches and a power rating of one and one-half horsepower. It operates at a speed of one thousand seventy-five RPM with dual voltage options of two hundred to two hundred thirty or four hundred sixty volts.

• Energy-efficient performance
• Heavy-duty ball bearing construction
• Automatic overload protection

Product Highlights

This motor is suitable for various cooling applications. The vertical mount design allows effective airflow management. It supports reversible rotation, enhancing its versatility in different setups.

Product Information

Standard Information

• Brand: Century
• MPN: FC1156F

Technical Specifications

• Frame Size: 48Y
• Shaft Extension: 4.100 inches
• Amperage: 7.0/3.5
• Enclosure: OAO
• Phase: Single
• Mounting Type: Round/Belly Band
• Ambient Temperature: 158°F max
• Bearings Type: Ball/Double Sealed
