Regal Rexnord - Century Motors FC1106F 1HP 200-230/460V 1075RPM Motor

Product Description

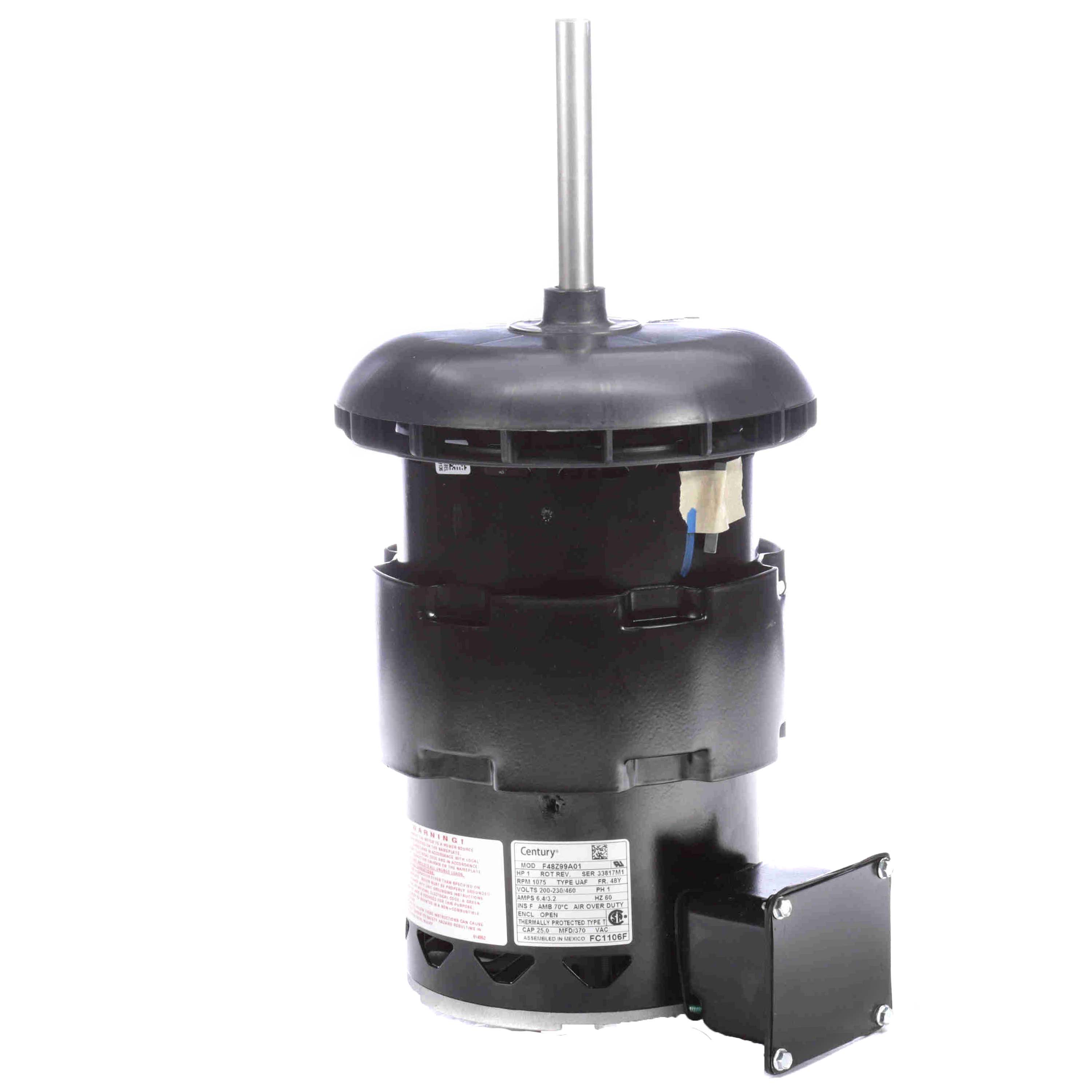

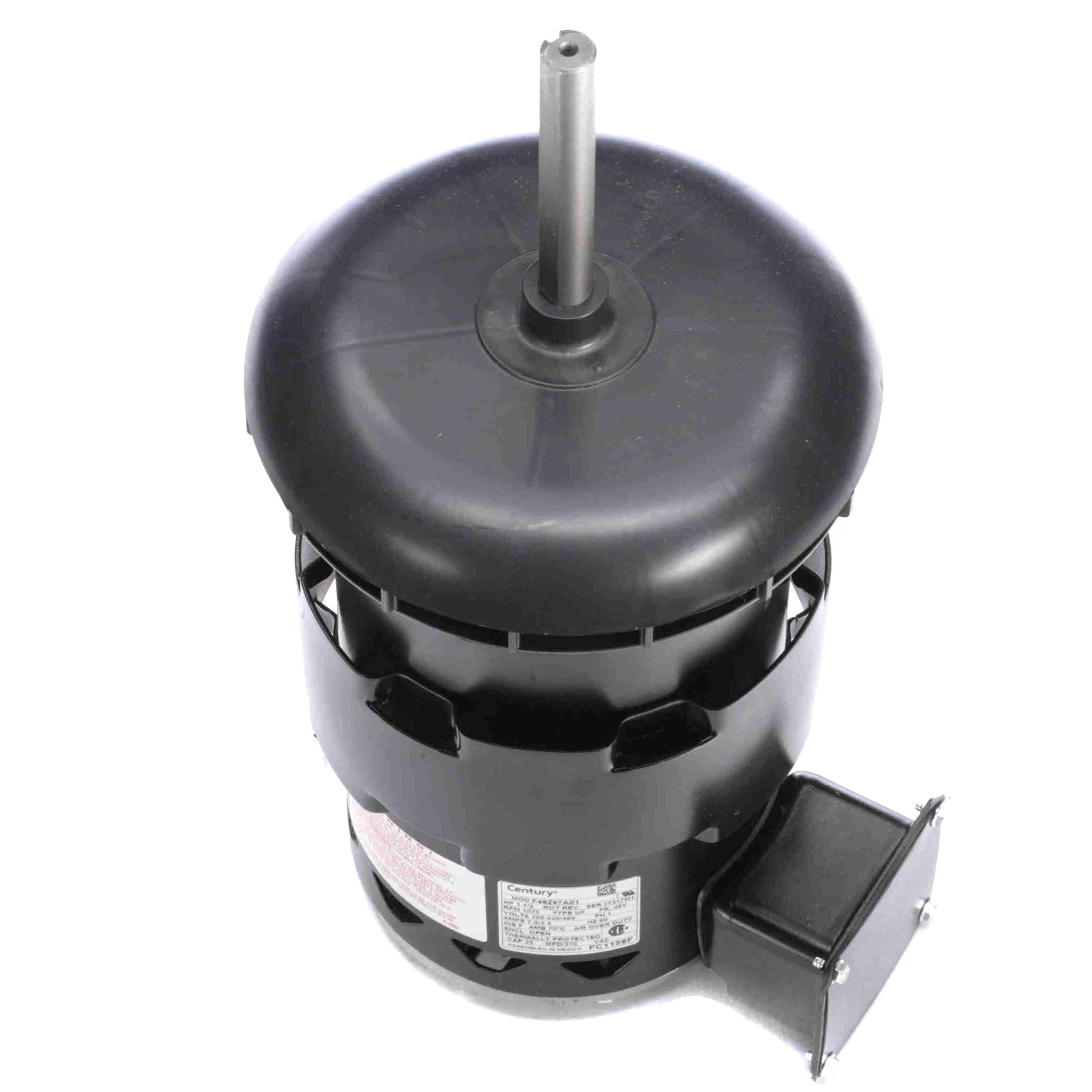

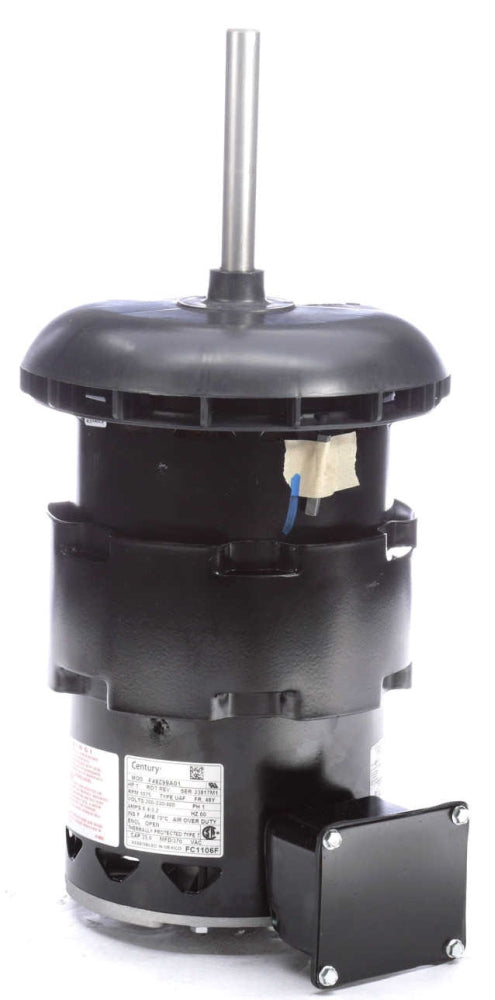

The Regal Rexnord - Century Motors FC1106F is a 1 horsepower condenser fan motor. It operates at voltages of 200 to 230/460 VAC with a frequency of sixty hertz. This motor delivers a speed of 1075 revolutions per minute and features a NEMA 48Y frame for durability. The construction includes rolled steel and a keyed shaft, suitable for various industrial applications.

• Power: 1 HP
• Reversible motor with double-sealed ball bearings
• Open air-over enclosure type

Product Highlights

This motor is designed for efficiency in condenser applications. Its reversible feature allows flexibility in installation, while the ball bearings enhance performance and longevity.

Product Information

Standard Information

• MPN: FC1106F
• Brand: Regal Rexnord - Century Motors

Technical Specifications

• Power Rating: 1 HP
• Voltage Rating: 200-230/460 Volt AC
• Frequency Rating: 60 Hertz
• Current Rating: 6.4/3.2 Amp
• Speed Rating: 1075 RPM
• NEMA Frame Size: 48Y
• Insulation Class: F
• Weight: 32 Pounds
